PRODUCT
Heavy Duty Horizontal CNC Metal Lathe Prices
ALMAZAKL CNC horizontal CNC lathe machine is an economical and practical CNC lathe with optimized structure, reliable performance, high quality, simple programming and convenient operation. It is suitable for turning complex shafts, sleeves and discs such as internal and external turning. Cylinders, cones, arc surfaces and various threads, even drilling, boring and reaming.
Horizontal CNC Lathe Machine Features:
1.CNC lathe machine high rigidity casting bed
2.CNC lathe high precision spindle bearing
3.automatic CNC lathe machine bed guide rail industrial hardening

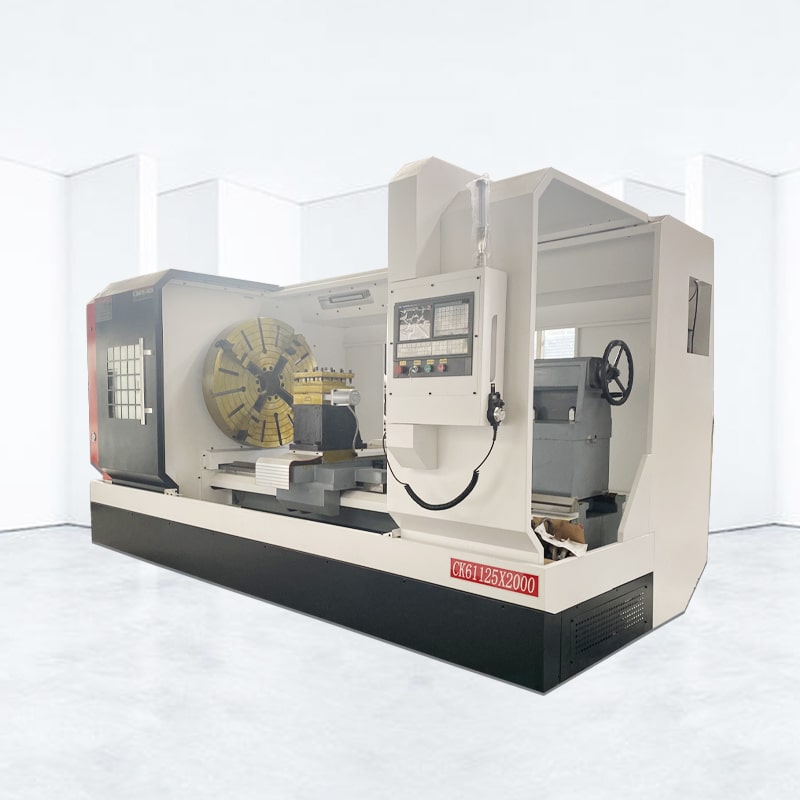

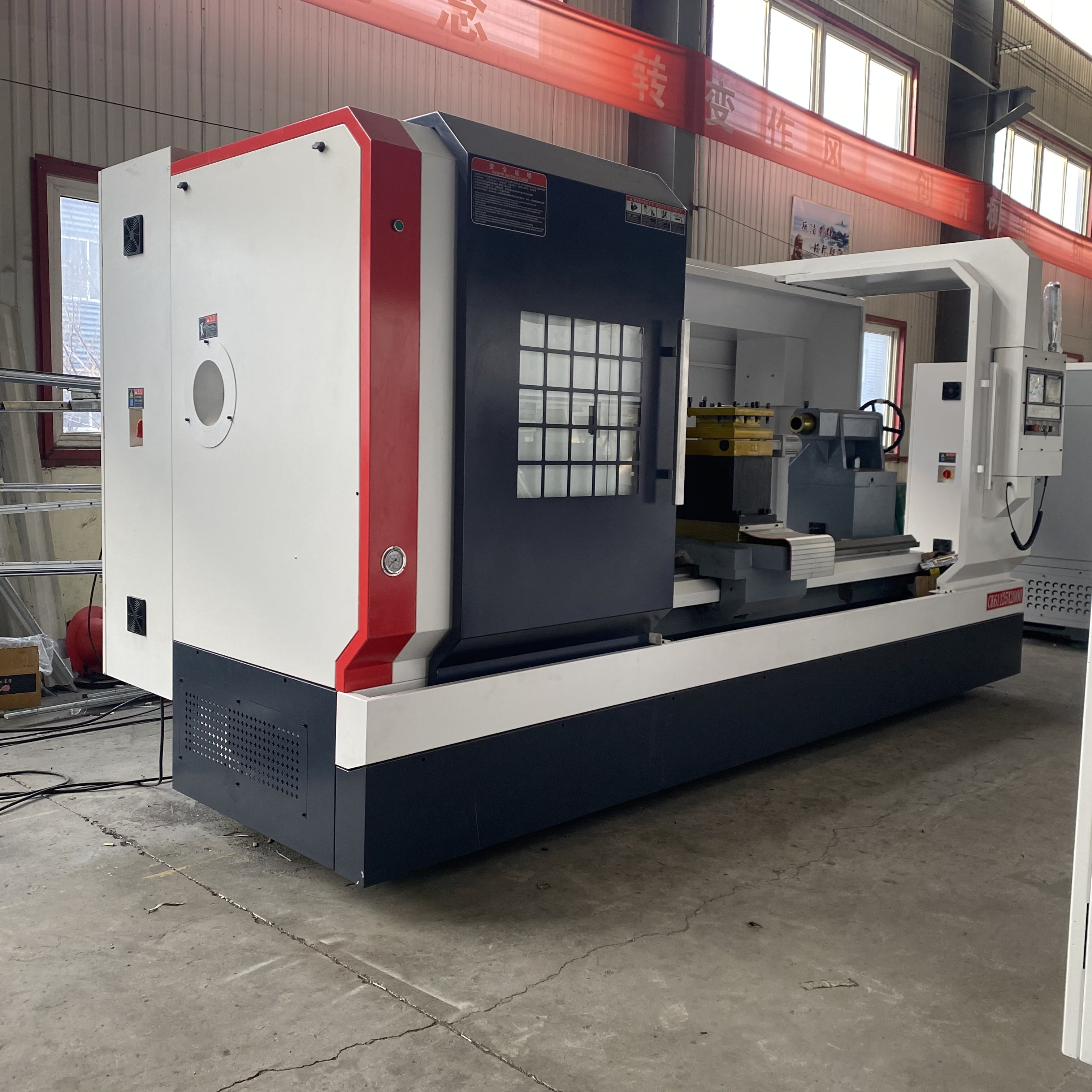

ALMAZAKL CNC ALCK61100X2000 CNC lathe machine
Equipment configuration and parameters
| Project | Content | Unit | ALCK61125-2000 |
| Processing range | Maximum turning diameter on the bed slide | mm | Φ1250 |
| Maximum turning diameter on the skateboard | mm | Φ900 | |
| Maximum processing length | mm | 2000 | |
| Effective processing length | mm | 1850 | |
| Maximum machining diameter | mm | Φ1250 | |
| Maximum bar diameter | mm | Φ630 | |
| Feed | X/Z axis travel | mm | 530/2000 |
| Machine net weight | kg | 5500 | |
| Machine tool dimensions (length × width × height) | mm | 4200*1820*1780 | |
| Electricity demand (power/current) | kW/A | 20kW/30A |
CNC Lathe Application:
ALMAZAKL CNC CNC lathes are mainly used to process various shaft and disk parts. They can turn various threads, arcs, cones and inner and outer surfaces of gyratory, and can meet the speed requirements of high-speed cutting of ferrous and non-ferrous metals. It is suitable for high-volume, high-precision processing of swivel parts in industries such as automobiles, motorcycles, electronics, aerospace, and military industries.

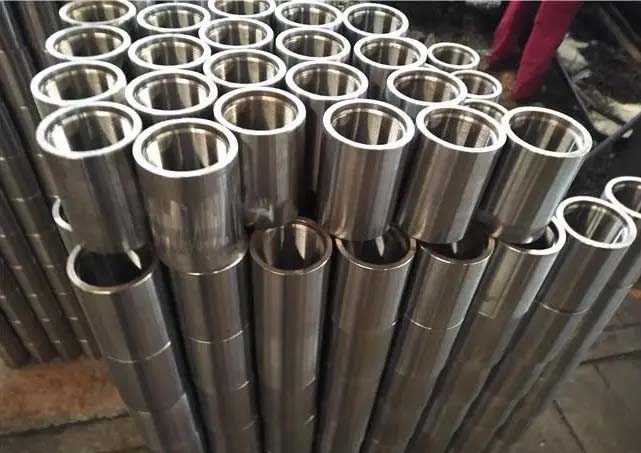

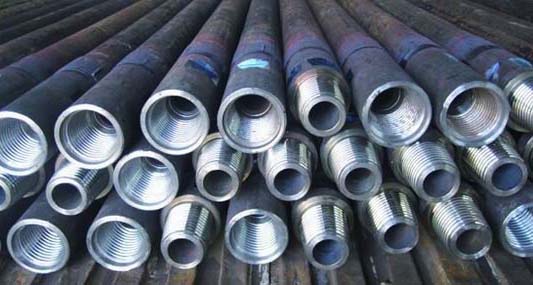

Example: processing oil pipelines:
