CNC Lathe Automatic Processing Cylinder
CK61125 CNC lathe machine is a full-function CNC ordinary precision lathe designed and manufactured with foreign advanced technology. The design and controls have been developed with ergonomic requirements in mind: ease of operation, ease of maintenance.
Processing Characteristics Of Large CNC Lathes:
The horizontal CNC lathe machine is designed to perform large stock removal turning operations including rough machining of cast iron castings. Available in 3 modifications: step less adjustment of the spindle speed, 3-speed gearbox with manual shift and automatic hydraulic gearbox for higher spindle torque. Its main purpose is rough turning and semi-finish turning of large parts. The CNC lathe machine bar fedeer can process short workpieces and long workpieces up to 3000 mm.

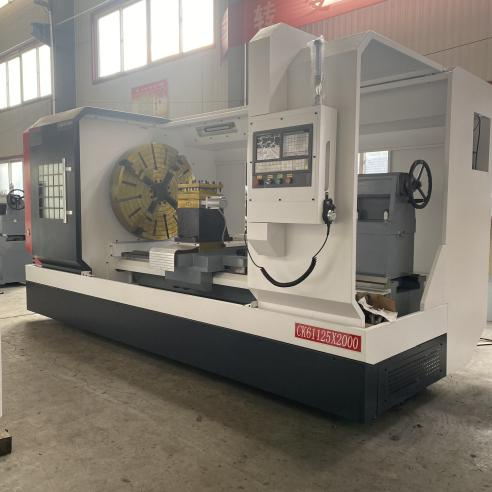

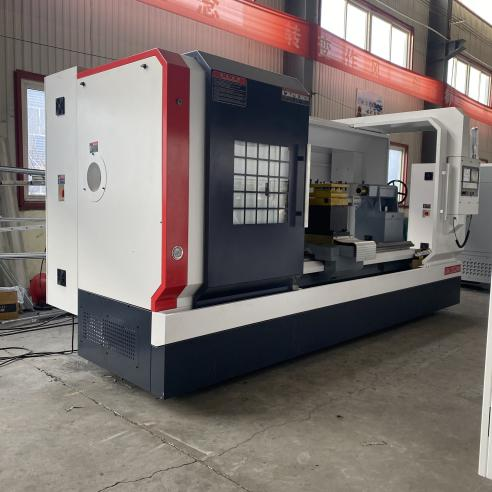

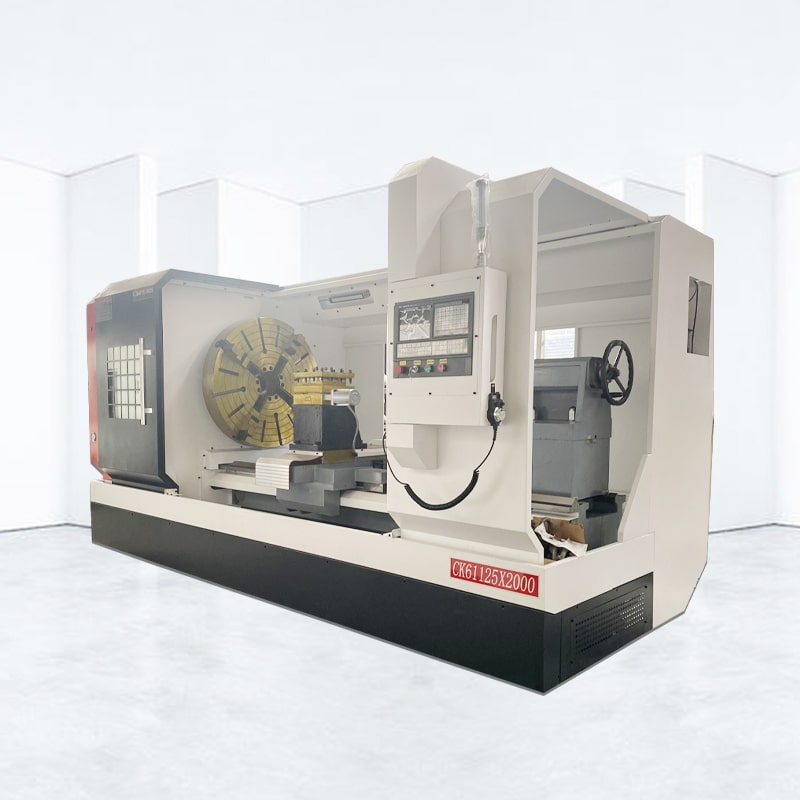

CK61125 Horizontal Parallel Cutting Large Metal CNC Lathe
1. It adopts bead less wide hard guide rail and fully enclosed safety protection cover, complete configuration, beautiful appearance, good rigidity, high precision, reliability, convenient operation and safety.
2. The built-in bed leg resolution and ultrasonic hardened guide rail make the machine have high rigidity and precision. Bed and foot bed, spindle and carriage, etc., precious castings. Through the finite element analysis, intelligently organize the playback tape, which effectively improves the performance of the machine in this regard.
ALMAZAKL CNC ALCK61100X2000 CNC lathe machine
CNC Lathe Configuration And Parameters
| Project | Content | Unit | ALCK61125X2000 |
| Processing range | Maximum turning diameter on the bed slide | mm | Φ1250 |
| Maximum turning diameter on the skateboard | mm | Φ900 | |
| Maximum processing length | mm | 2000 | |
| Effective processing length | mm | 1850 | |
| Maximum machining diameter | mm | Φ1250 | |
| Feed | Maximum bar diameter | mm | Φ630 |
| X/Z axis travel | mm | 530/2000 | |
| Machine net weight | kg | 5500 | |
| Machine tool dimensions (length × width × height) | mm | 4200*1820*1780 | |
| Electricity demand (power/current) | kW/A | 20kW/30A |
