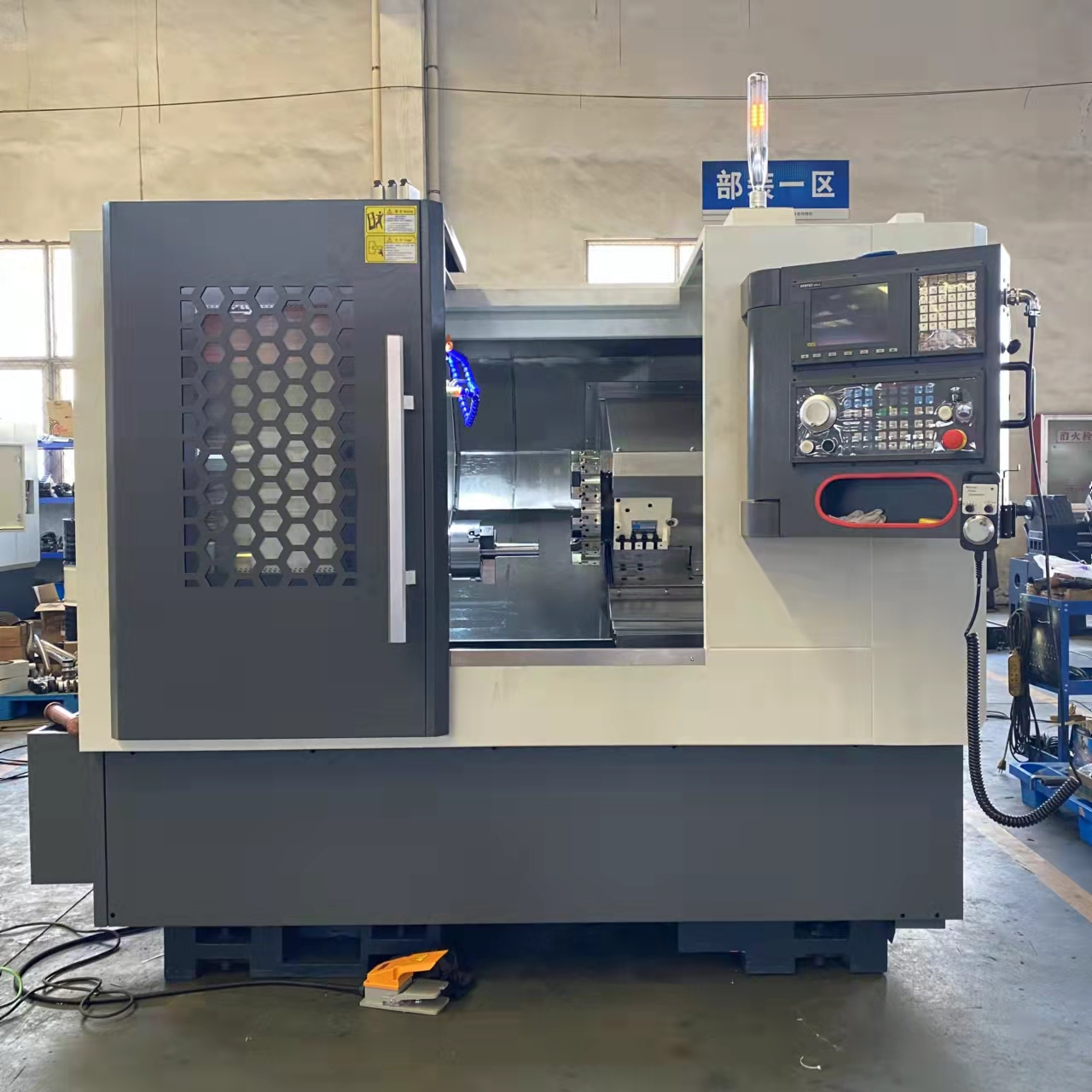

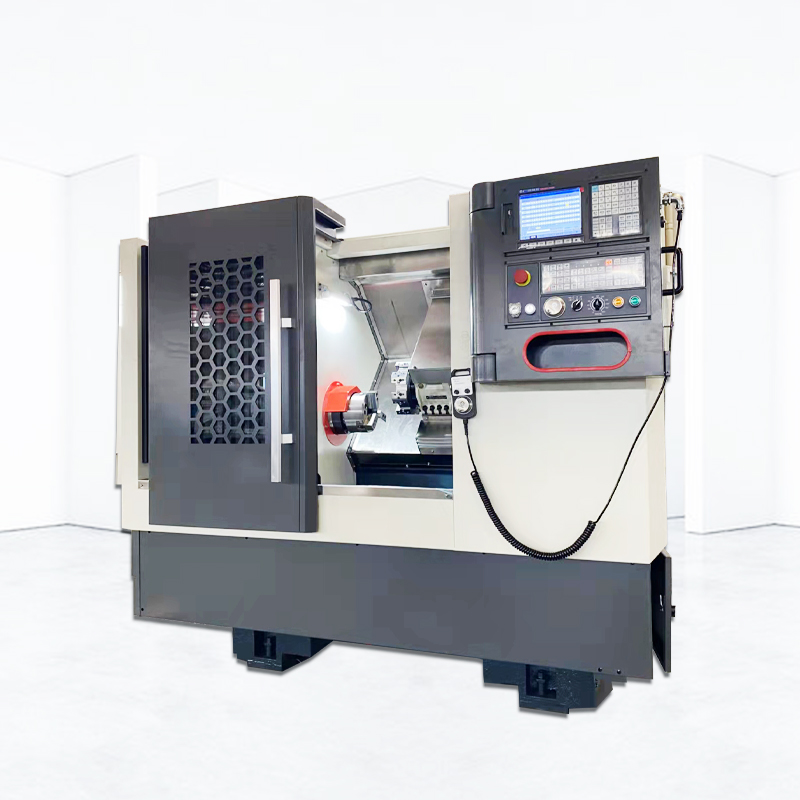

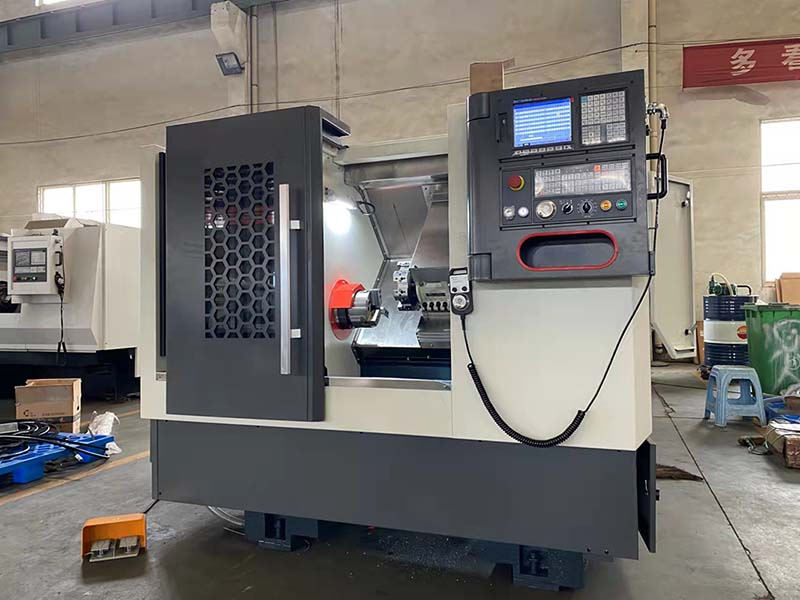

Slant bed CNC lathe to bring performance and productivity. The Y axis and C axis provide more flexibility and multiple operations when machining complex work piece. is ideal for various industrial applications.
1.30 degrees slant bed
2.Higher rigidity cast iron
3.Higher accuracy Taiwan HIWIN linear
4.Integrated automatic lubrication system
5.Removable hidden type hydraulic tailstock
6. station hydraulic turret
7.Screw pre-stretching structure
1. GSK or Siemens CNC system
2. Servo motor 5.5kw
3.8 station hydraulic turret
4. Domestic through-hole hydraulic chuck
Horizontal CNC lathe machine is mainly used for processing various shaft, disk parts. It can turn various screw head, the surface of arc, cone, rotary body. Its higher speed could meet the higher speed processing requirement of ferrous and non-ferrous metal.
CNC lathe machine bar fedeer could turn the car, motorcycle, electronics, aerospace, military parts with higher efficiency, larger quanity and high precision. Its machining precision could reach level 7.
CNC Lathe Machine ——In The Laster Inspection Of The Inclined Bed
Model | Unit | TCK46A |
Maximum turning diameter of bed | mm | Φ460 |
Maximum turning diameter of cross slide | mm | Φ170 |
Maximum processing length | mm | 350 |
Maximum machining diameter (disk type) | mm | Φ400 |
X axis maximum stroke | mm | 240 |
Z axis maximum stroke | mm | 400 |
Spindle speed | rpm | 3500rpm |
Spindle through hole | mm | Φ56 |
Sleeve stroke | mm | 80 |
Maximum stroke of tailstock | mm | 200 |
Total power capacity | KVA | 18 |
Dimensions (length × width × height) | mm | 2500*1700*1890 |
Total Weight | KG | 2600 |
