Slant Bed CNC Lathe Machining Shaft And Disc Parts
ALMAZAKLCNC CNC automatic lathe mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on.

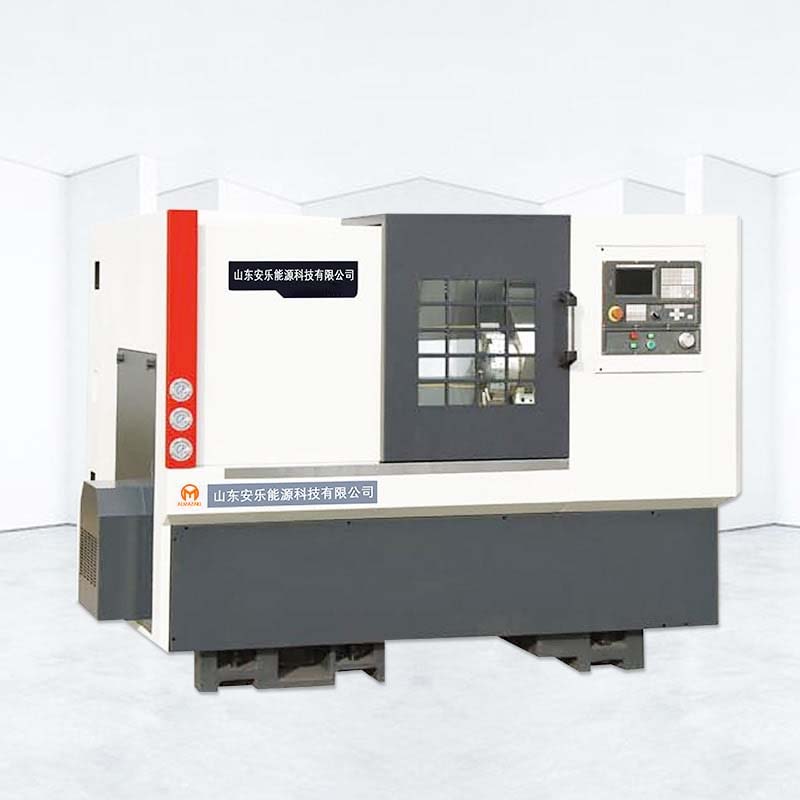

ALMAZAKLCNC Slant bed CNC lathe ALTCK46A with Y axis
The Main Technical Parameters
| Model | Unit | TCK46A |
| Maximum turning diameter of bed | mm | Φ460 |
| Maximum turning diameter of cross slide | mm | Φ170 |
| Maximum processing length | mm | 350 |
| Maximum machining diameter (disk type) | mm | Φ400 |
| X axis maximum stroke | mm | 240 |
| Z axis maximum stroke | mm | 400 |
| Spindle speed | rpm | 3500rpm |
| Spindle through hole | mm | Φ56 |
| Sleeve stroke | mm | 80 |
| Maximum stroke of tailstock | mm | 200 |
| Total power capacity | KVA | 18 |
| Dimensions (length × width × height) | mm | 2500*1700*1890 |
| Total Weight | KG | 2600 |
CNC Lathe Machine Metal Advantage:
1.CNC Lathe machine guide are accurately grated,
which has good wear resistance and high precision.
2.Lathe CNC metal the spindle adopts single spindle frequency shift, two axes and two gear variable speed.
3.Mini lathe CNC is equipped with an automatic lubrication system, thus making it possible to minimize the thermal deformation
4.Horizontal CNC lathe machine effectively and assure good machining accuracy.
CNC Lathe Machine Application:
CNC automatic lathe is suitable for producing metal , plastic etc in shaft and plate shape, could turn various threads, circle cone, circle arc, inside and outer side.
