Slant bed CNC lathe is an economical CNC lathe developed according to market demand. It has the characteristics of high precision, fast speed and strong rigidity. Can meet the processing of various materials.
If you are looking for CNC lathe with inclined bed, don't hesitate, we also offer custom service.

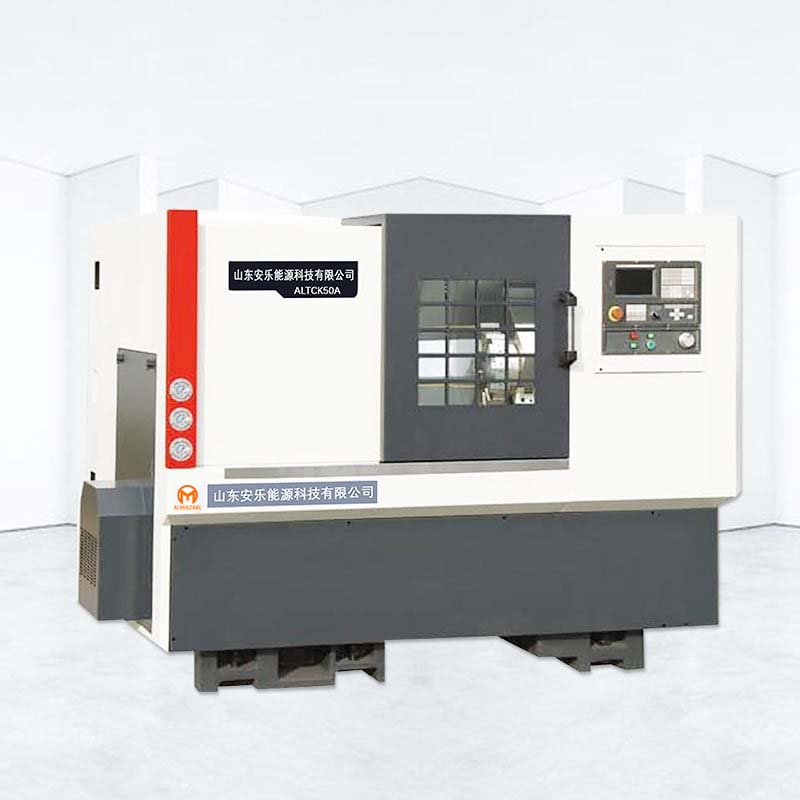

ALMAZAKLCNC Slant bed CNC lathe ALTCK50A with Y axis
The Main Technical Parameters
Model | Unit | TCK46A |
Maximum turning diameter of bed | mm | Φ460 |
Maximum turning diameter of cross slide | mm | Φ170 |
Maximum processing length | mm | 350 |
Maximum machining diameter (disk type) | mm | Φ400 |
X axis maximum stroke | mm | 240 |
Z axis maximum stroke | mm | 400 |
Spindle speed | rpm | 3500rpm |
Spindle through hole | mm | Φ56 |
Sleeve stroke | mm | 80 |
Maximum stroke of tailstock | mm | 200 |
Total power capacity | KVA | 18 |
Total power capacity | mm | 2500*1700*1890 |
Total Weight | KG | 2600 |

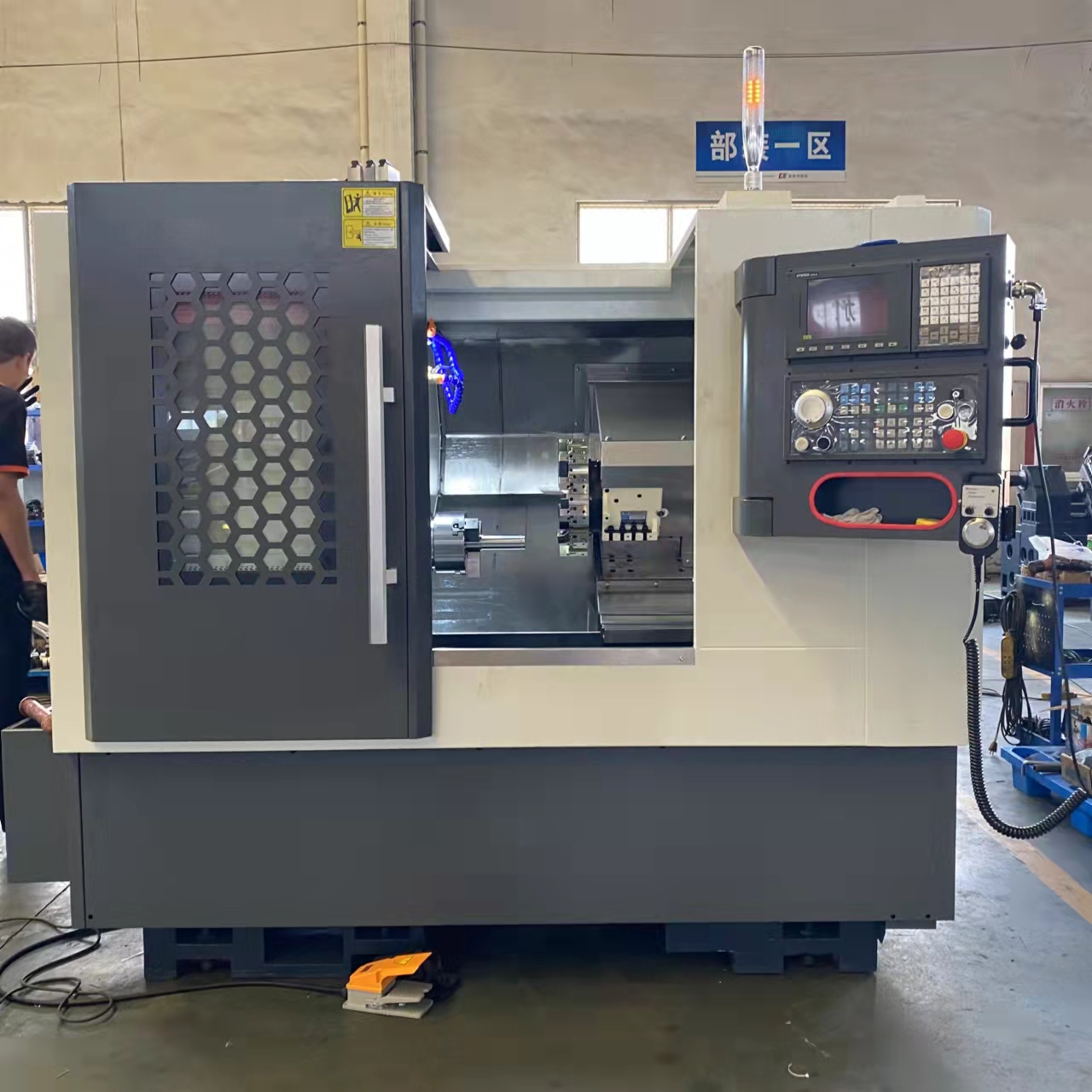

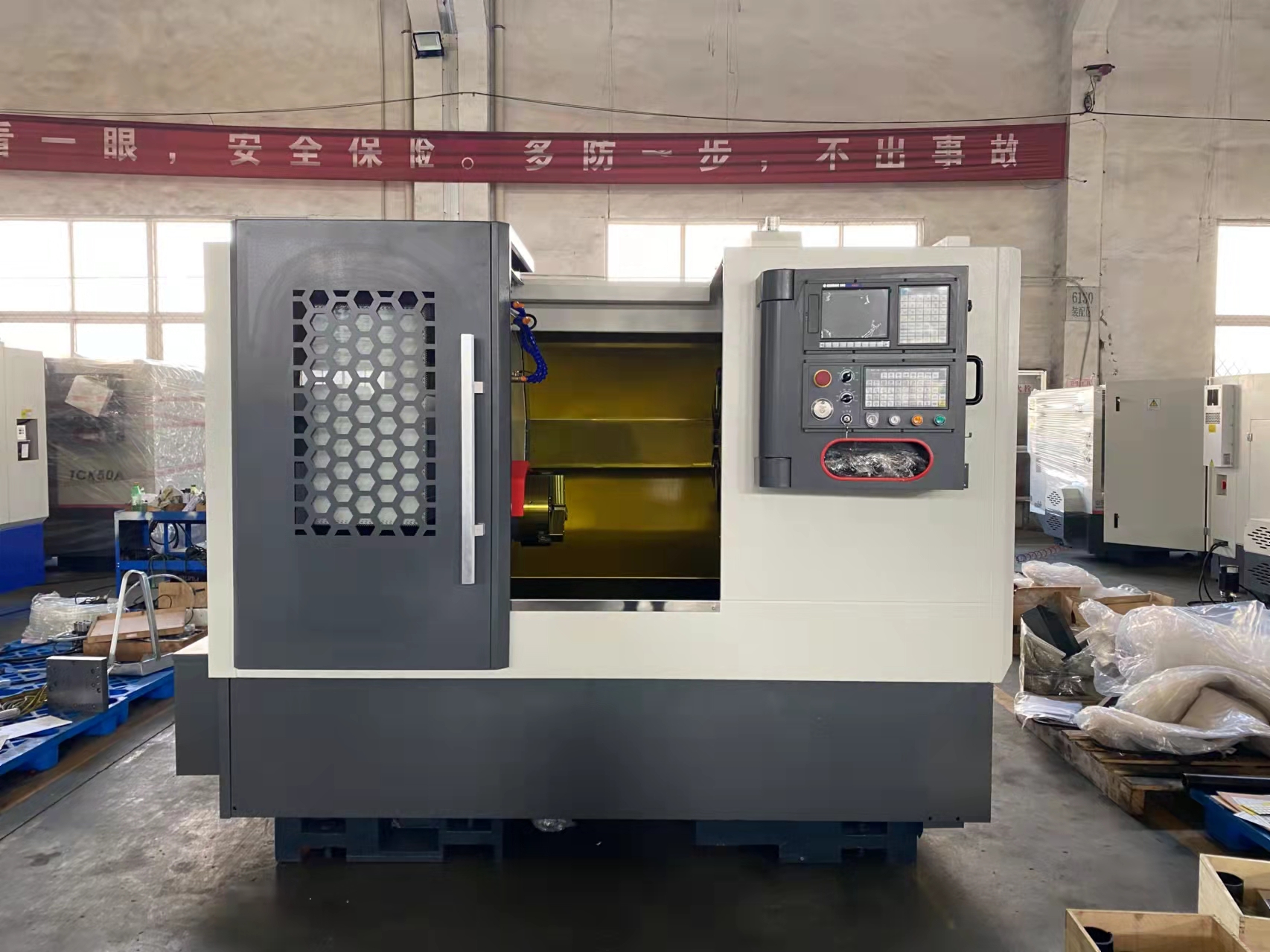

Slant bed CNC lathe is a high-precision, high-speed CNC lathe developed by Taigong CNC according to market demand, also known as CNC turning center. Can complete the processing of a variety of materials, equipped with a multi-station device or a power tool turret.
cnc lathe machine will add extensive technical capabilities
1.CNC lathe All structural components are manufactured from high quality stress relieved Meehant cast iron to minimize deformation.
2. The large base structure ensures high rigidity and excellent vibration damping effect.
3. Has box guides on X, Z axis. All surfaces are hardened and precision ground
4.horizontal CNC lathe machine with high precision spindle can accommodate both collet chuck and 3-jaw hydraulic chuck for multiple machining options. The main shaft adopts double row roller bearings combined with angular contact ball bearings, which can resist radial and axial loads. Fast and efficient machining is guaranteed, as well as very fine work piece finishing.
