CNC Lathe Machining Metal Thread
Product Tags :
CNC lathe for saleCNC lathe machine priceCNC lathe with bar feederCNC pipe thread lathe adoptsFlat bed CNC latheautomatic cnc lathe machinebar feeder cnc lathecnc lathecnc lathe 3 axiscnc lathe machine
Product Attributes :
The most popular CNC lathes, the cost is always low. In the basic configuration, in order to achieve the lowest cost, CNC lathe is equipped with GSK CNC system, four-station tool holder and mechanical workpiece clamping system. As an option, the CNC lathe machine can be equipped with hydraulic clamping system, eight-position turret and Siemens CNC system.
Product Description
Automatic CNC Lathe Machine Processing Features:
1.CNC lathe large diameter spindle hole.
2.CNC lathe 3 axis high quality solid casting
3.CNC milling lathe machine high torque and speed
4.Horizontal CNC lathe machine automatic lubrication system
5. ALMAZAKL CNC machining long parts
6. Strengthen the guide rail

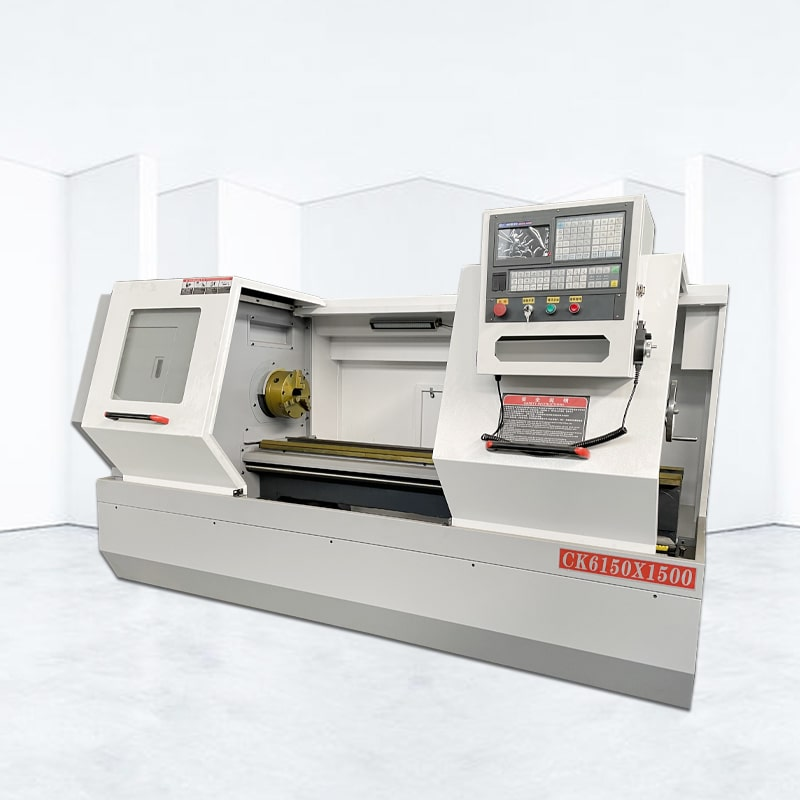

Heavy Duty Helical Gear ALCK6150x1500 CNC Lathe
Equipment Configuration And Parameters
| Item | Unit | ALCK6150*1500 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1500 |
| X/Z axis maximum stroke | mm | 1500 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | F82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Frequency converter | kW | 7.5 |
| X/Z axis |
N.m |
5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Diameter of tailstock sleeve | mm | F65 |
| Tailstock sleeve stroke | mm | 130 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
