ALMAZAKL CNC lathe is an economical and practical processing machine tool with mature product structure and stable performance and quality.

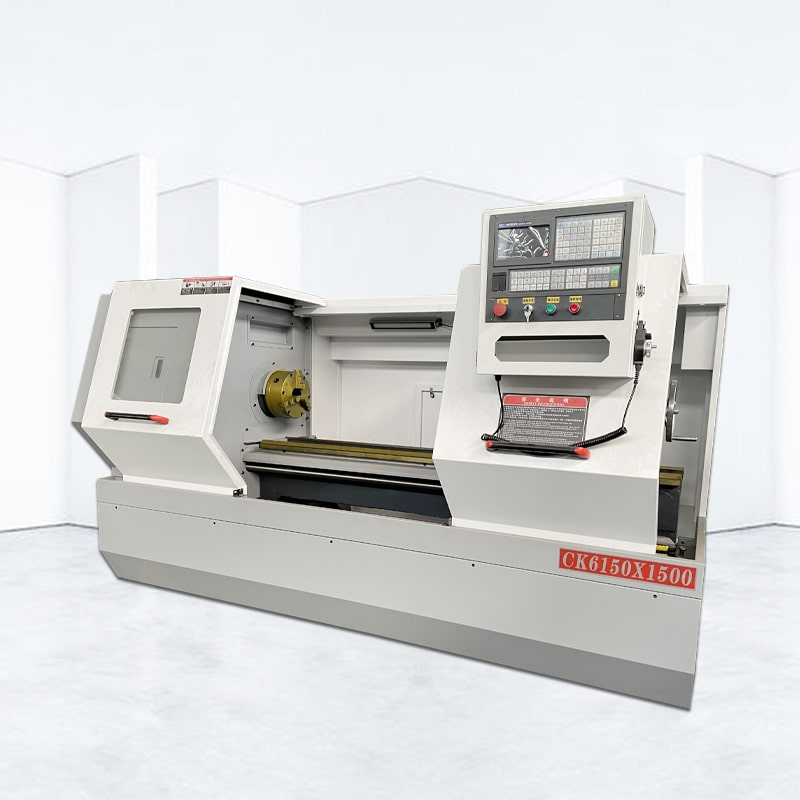

Heavy Duty Helical Gear ALCK6150x1500 CNC Lathe
Equipment Configuration And Parameters
Item | Unit | ALCK6150*1500 |
Max swing over bed | mm | Φ500 |
Maximum swing over slide | mm | Φ290 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 1500 |
X/Z axis maximum stroke | mm | 1500 |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | Φ82 |
Spindle speed limit | rpm | 150-2000/60-1600 |
Frequency converter | kW | 7.5 |
X/Z axis | N.m | 5/7.5 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Diameter of tailstock sleeve | mm | Φ65 |
Tailstock sleeve stroke | mm | 130 |
Tailstock sleeve stroke | kW/A | 15kW/20A |
1. CNC lathe mechanical and electrical integration design, beautiful appearance, mature product portfolio. easy to use,
2. Flat bed CNC lathe is a heavy casting. Heavy-duty castings undergo at least two aging quality inspections and over-frequency quenching. The integral casting makes the machine tool harder and the lathe more stable.
3. The X and Z axes adopt high-precision rolling screw chucks, which have better dynamics and higher precision.
4. The horizontal CNC lathe machine adopts double-row cylindrical roller bearings and two-way thrust angular contact bearings. These precision bearings are specially designed for the main shaft of machine equipment. This provides an optimized combination of high precision, high load and good operating speed; moreover, it is more durable.
ALMAZAKL CNC flat bed CNC lathe can automatically complete the machining of bearings, inner and outer cylindrical surfaces, conical surfaces, and circular guide surfaces. It is suitable for processing many varieties and small and medium batch products. Used in beverage equipment, medical equipment, mining plants, mining, and power plants, gas turbines, electrical machinery and other industrie
