ALMAZAKL CNC Flat bed CNC lathe has the characteristics of high precision, high power, high rigidity, etc. Its main components and structure have been optimized and designed, and can process shafts, discs, sleeves, special-shaped surfaces and threaded work pieces

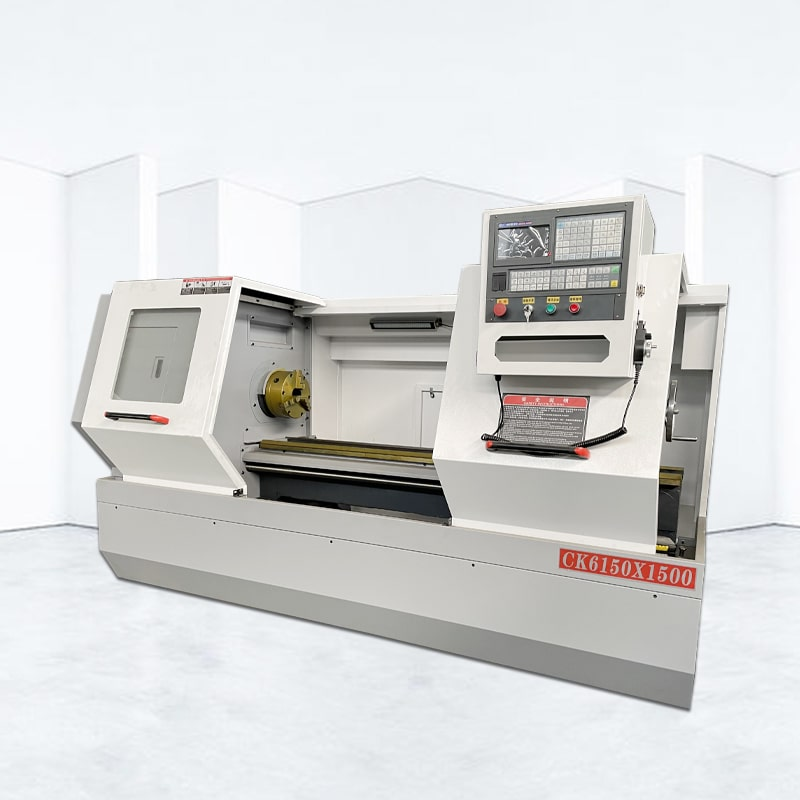

Heavy Duty Helical Gear ALCK6150x1500 CNC Lathe
Item | Unit | ALCK6150*1500 |
Max swing over bed | mm | Φ500 |
Maximum swing over slide | mm | Φ290 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 1500 |
X/Z axis maximum stroke | mm | 1500 |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | Φ82 |
Spindle speed limit | rpm | 150-2000/60-1600 |
Frequency converter | kW | 7.5 |
X/Z axis | N.m | 5/7.5 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Diameter of tailstock sleeve | mm | Φ65 |
Tailstock sleeve stroke | mm | 130 |
Electricity demand (power/current) | kW/A | 15kW/20A |
1.ALMAZAKL CNC metal lathe machine Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
2.ALMAZAKL CNC automatic CNC lathe machine tool guide with wear-resistant cast iron and after the audio quenching, can ensure the long-term stability of processing accuracy.
The CNC lathe 3 axis is mainly used for processing parts with complex shapes or high-precision parts. It can automatically complete the turning of inner and outer circular surfaces, tapered cotton, circular surfaces, end surfaces, various threads, drilling, hinges, boring, etc.
