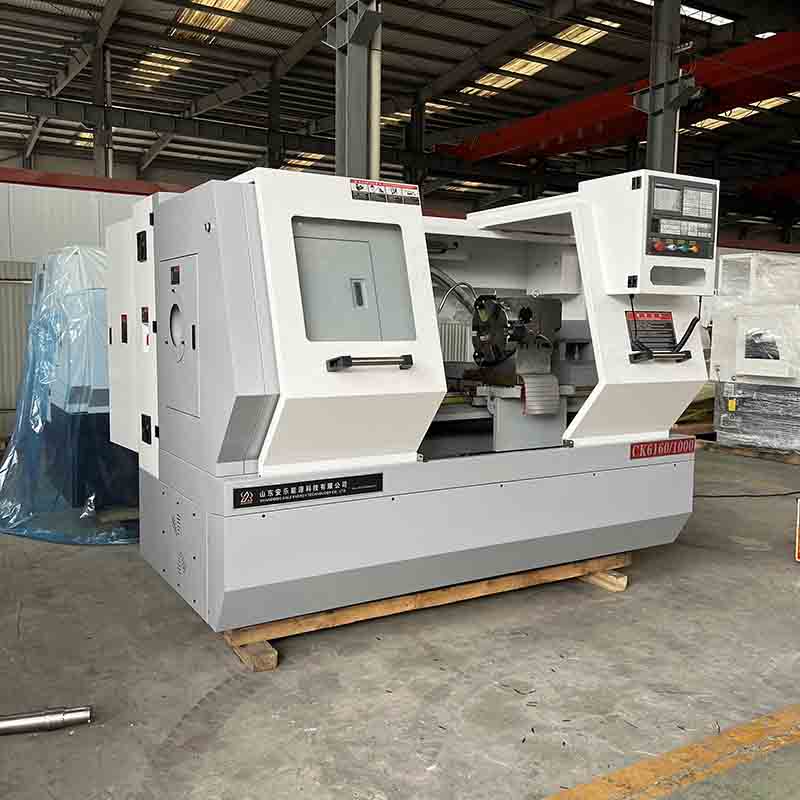

Horizontal CNC Lathe ALCK6160
ALMAZAKL CNC Ideal for tool shops, the CK6160 CNC lathe is designed for making complex parts in a variety of metals and alloys for heavy industrial applications. It has earned a solid reputation for quality and reliability, as well as versatility.
CNC Lathe Processing Features:
1. All the main shafts of CNC lathe machine gearbox are ultrasonically quenched and precision ground, with high precision and low noise.
3. The horizontal CNC lathe machine rail body is ultrasonically quenched and CNC finely ground, with high rigidity and strength and improved precision. The bed, guide rail, and bed are spliced together, the size of the carriage will not become thicker, and the strength will increase.
4. The automatic CNC lathe machine connecting rod ball screw adopts the integral inner ring screw with support and preloaded diagonal ball bearings. Guide rails, pull rod bolts, etc. adopt centralized automatic lubrication, which can move flexibly, reduce thermal deformation, and stabilize point accuracy.
5. The repeat positioning of CNC lathe machine bar fedeer is accurate.
6. The rear frame of CNC lathe adopts eccentric wheel locking mechanism and adhesive, which makes fastening faster. The rear connector has a device to prevent the drill from rotating, effectively protecting the rear parts.

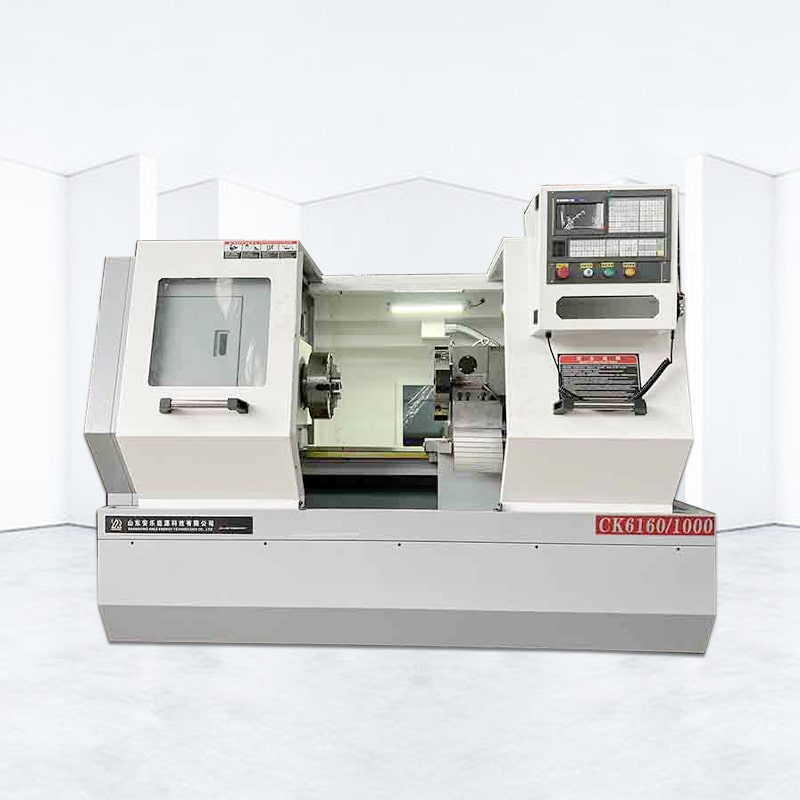

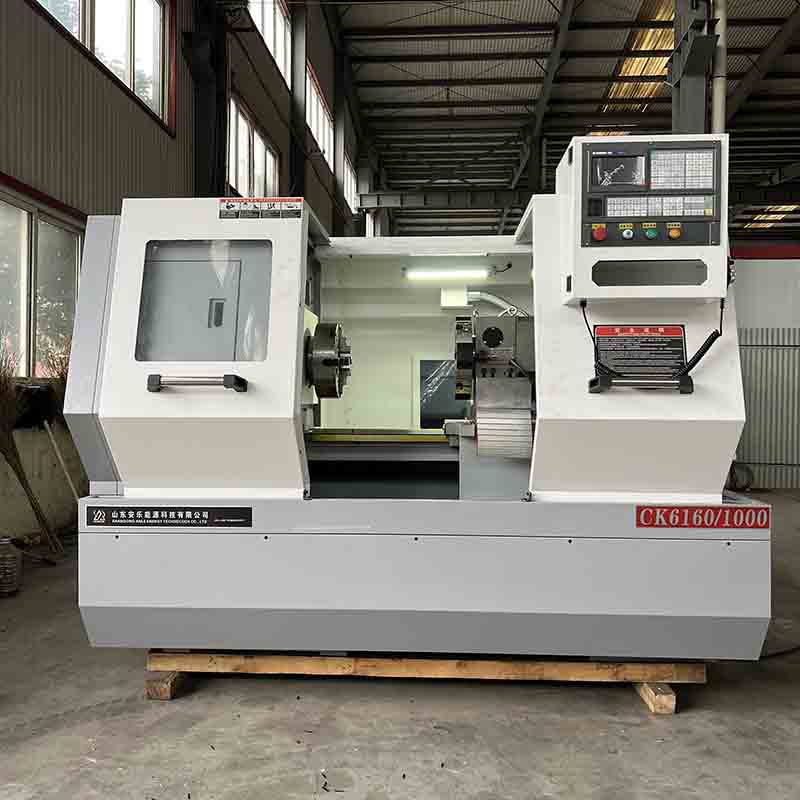

ALCK6160X1000 Flat bed CNC lathe
Equipment configuration and parameters
| model | Unit | ALCK6160X1000 |
| Maximum turning diameter of bed | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Ф310 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/(1000/1500) |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Ф82 (105/130) |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Machine size (length×width×height) | mm | 2940*1400*1700 |
| Electricity demand (power/current) | mm | 15kW/20A |
| Chuck | kW/A | 320mm manual three-jaw chuck |
ALMAZAKL CNC Flat Bed CNC Lathe Application
CNC metal turning equipment CK6160 is equipped with GSK digital control system, which has simple control and simulation functions and is suitable for medium production. It can be replaced with more powerful CNC systems such as Siemens, Fanuc, and KND as needed.
