CNC Lathe Tool Equipment CE Certification
ALMAZAKL CNC The automatic CNC lathe machine can perform grooving, threading, boring, reaming, drilling and other processing with high efficiency and wide applicability.

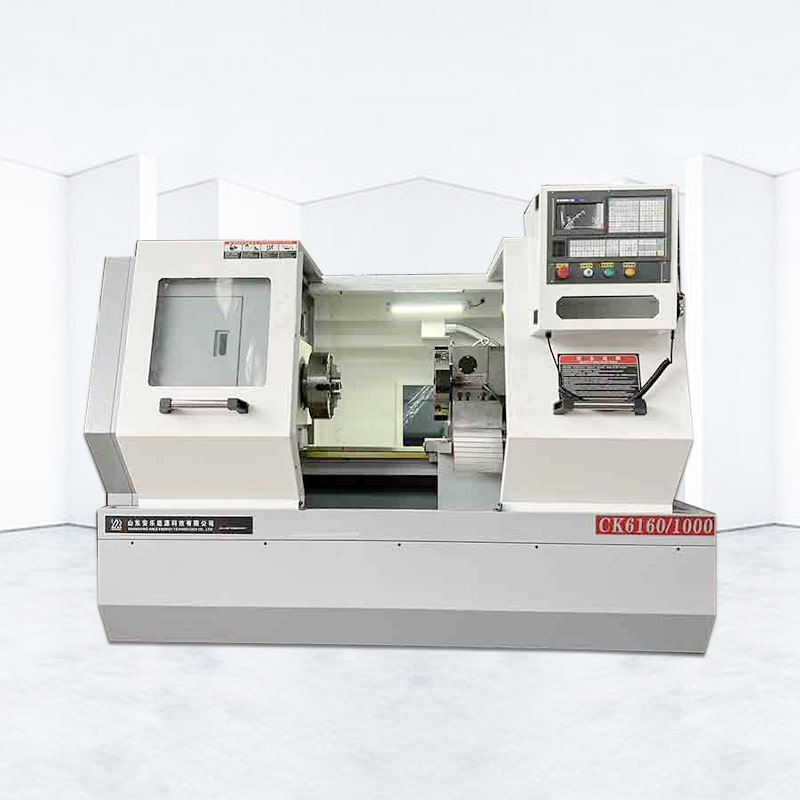

ALCK6150X1000 Flat bed CNC lathe
Equipment configuration and parameters
| Model | Unit | ALCK6160X1000 |
| Maximum turning diameter of bed | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Ф310 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis minimum displacement unit | mm | 300/(1000/1500) |
| Spindle hole diameter | mm | 0.001 |
| X/Z axis | mm | Ф82 (105/130) |
| X/Z axis rapid traverse speed | N.m | 6/8 |
| Repeated positioning accuracy of tool post | m/min | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Machine size (length×width×height) | mm | 2940*1400*1700 |
| Electricity demand (power/current) | mm | 15kW/20A |
| Chuck | kW/A | 320mm manual three-jaw chuck |
Horizontal CNC Lathe Features:
1. ALMAZAKL CNC bearings are equipped with high-precision double ball bearings. All the gears of the spindle box are ultrasonically quenched and precision ground, with high precision and low noise.
3. The flat bed CNC lathe guide rail is ultrasonic quenched and CNC precision ground, with high hardness, good rigidity and higher precision. The bed, guide rail, bed saddle and pallet are thickened and their strength increased.
4. The CNC lathe machine ball screw adopts the integral inner ring screw, and the oblique contact ball bearing is supported and preloaded. Guide rails, screw rods, etc. are centralized and automatically lubricated, with movement flexibility, reduced thermal deformation, and stable precision.
5. Horizontal CNC lathe machine electric tool holder has four vertical positions and six horizontal positions, with precise gear positioning and high repeat positioning accuracy.
6. The tail stock of CK6160 CNC lathe adopts eccentric wheel self-locking mechanism and thread locking, which makes fastening faster. The tail stock has a device to prevent the rotation of the drill bit, effectively protecting the tail.
ALMAZAKL CNC Flat Bed CNC Lathe Application
The main shaft adopts high-precision rolling bearings, and the high-precision turntable adopts high-precision ball screw drive, which has good dynamic performance and accurate positioning.
Our equipment is used in the oil industry in Russia, motorcycle parts and auto parts in Vietnam, Thailand.
