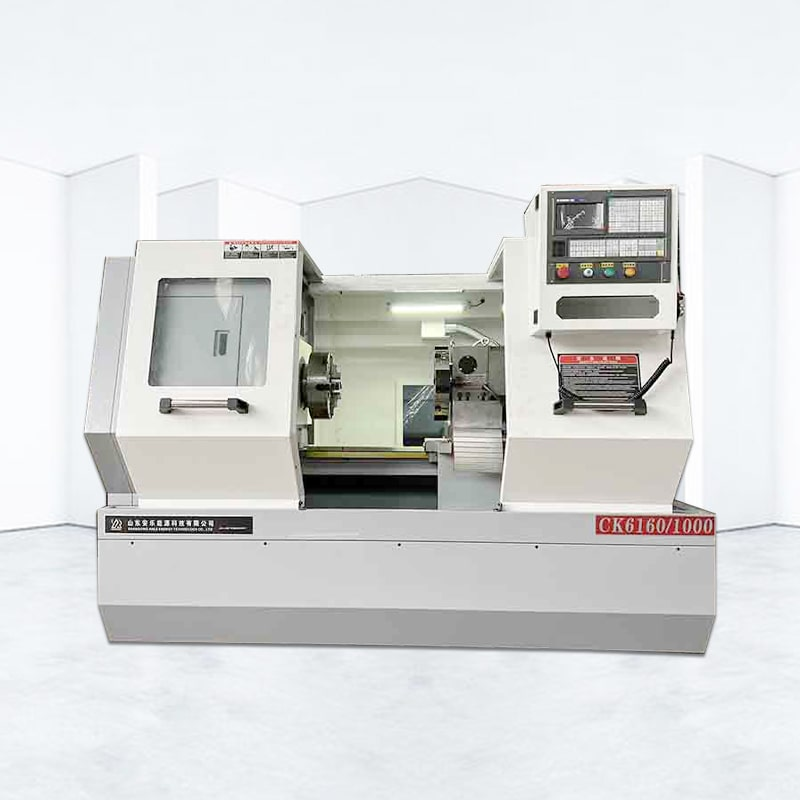

Flat Bed CNC Lathe For Precision Thread Cutting
ALMAZAKL CNC We offer a wide range of high-quality, high-performance and easy-to-use CNC machining processes. Security, increased yield, and manufacturing flexibility.
Flat Bed CNC Lathe For Precision Thread Cutting ALCK6160X1000
GSK system
With third-party driver
Rail width 400
320 three-jaw manual self-centering chuck
Four-station electric tool holder
7.5kw ordinary motor
Equipment configuration and parameters
| Model | Unit | ALCK6160X1000 |
| Maximum turning diameter of bed | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Ф310 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/(1000/1500) |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Ф82 (105/130) |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Machine size (length×width×height) | mm | 2940*1400*1700 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
| Chuck | 320mm manual three-jaw chuck |
Metal Lathe Machine Main Feature
1.Flat bed CNC lathe widening high stability bed
2.Automatic CNC lathe machine two gear spindle speed,step less in gear
3.Horizontal CNC lathe machine wider layor board
4.ALMAZAKL CNC CNC lathe machine Inter grated automatic lubrication system
Lathe CNC Metallathe Application:
The ALMAZAKL CNC spindle adopts high-precision rolling bearings, and the high-precision turntable adopts high-precision ball screw drive, which has good dynamic performance and accurate positioning.
Industries that use CNC lathes: aerospace industry, automotive industry, defense industry, healthcare industry, oil and gas industry, etc.
Example: The automotive industry often uses CNC lathe for prototyping and production. Extruded metal can be machined into cylinder blocks, transmissions, valves, shafts and a variety of other components.
