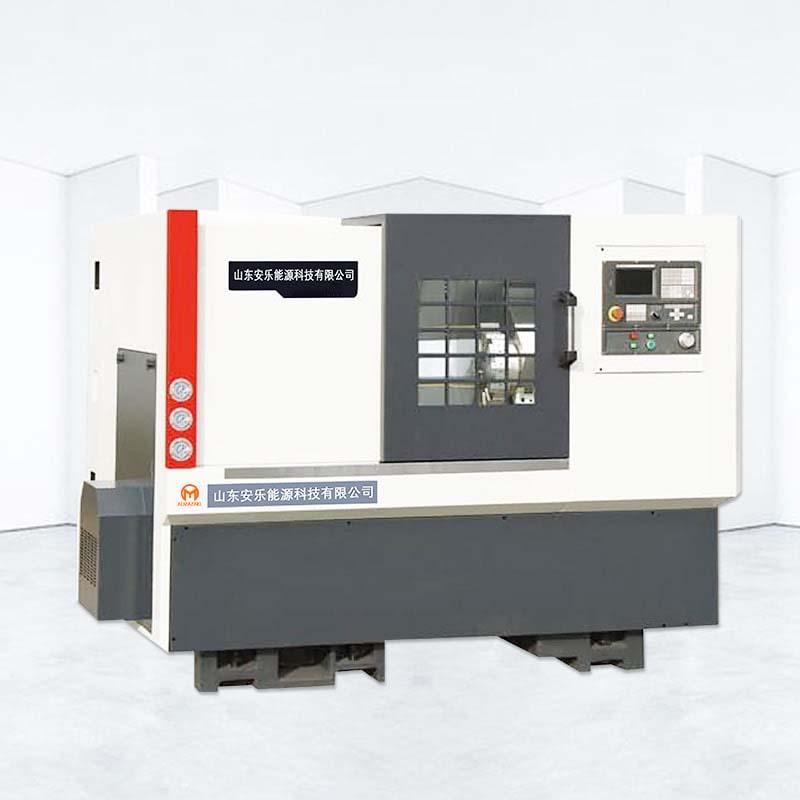

Linear Guideway CNC Slant Bed Lathe
Horizontal CNC lathe machine general purpose use with full sized and specifications for disc and cylindrical, cone , slot, beveling, threading, boring and reaming in military, vehicle, civil aviation and electronic industries.
Almazakl cnc Slant bed CNC lathe with Y axis
The Main Technical Parameters
| Section | Item | ALTCK36A |
| The main parameters | Maximum upper turning diameter of bed | Φ360mm |
| Maximum machining diameter on tool post | Φ140mm | |
| Maximum processing length | 300 | |
| Spindle and chuck parameters | Spindle head type (optional chuck) | A2-5 |
| Spindle hole diameter | Φ48 | |
| Bar diameter | Φ41 | |
| Maximum stroke of tailstock | 200 | |
| Bed frame | Bed form and slope | Integral/45° |
| Shape | length * width * height (mm) | 2200×1600×1850 |
| Weight | length * width * height (mm) | 2200kg |
CNC Lathe Machine Advantage:
slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn ex circle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient.
Advantage
Horizontal CNC lathe machine good stability
Machine tools with inclined bed or flat bed and inclined guide rail are generally used for oversized parts, because the corresponding parts of medium and large machine tools are also large, especially the turret part. The inclined guide rail is mainly used to overcome gravity and have better stability to improve The precision of the machine tool can reflect the superiority of the inclined machine tool in some harsh environments.
