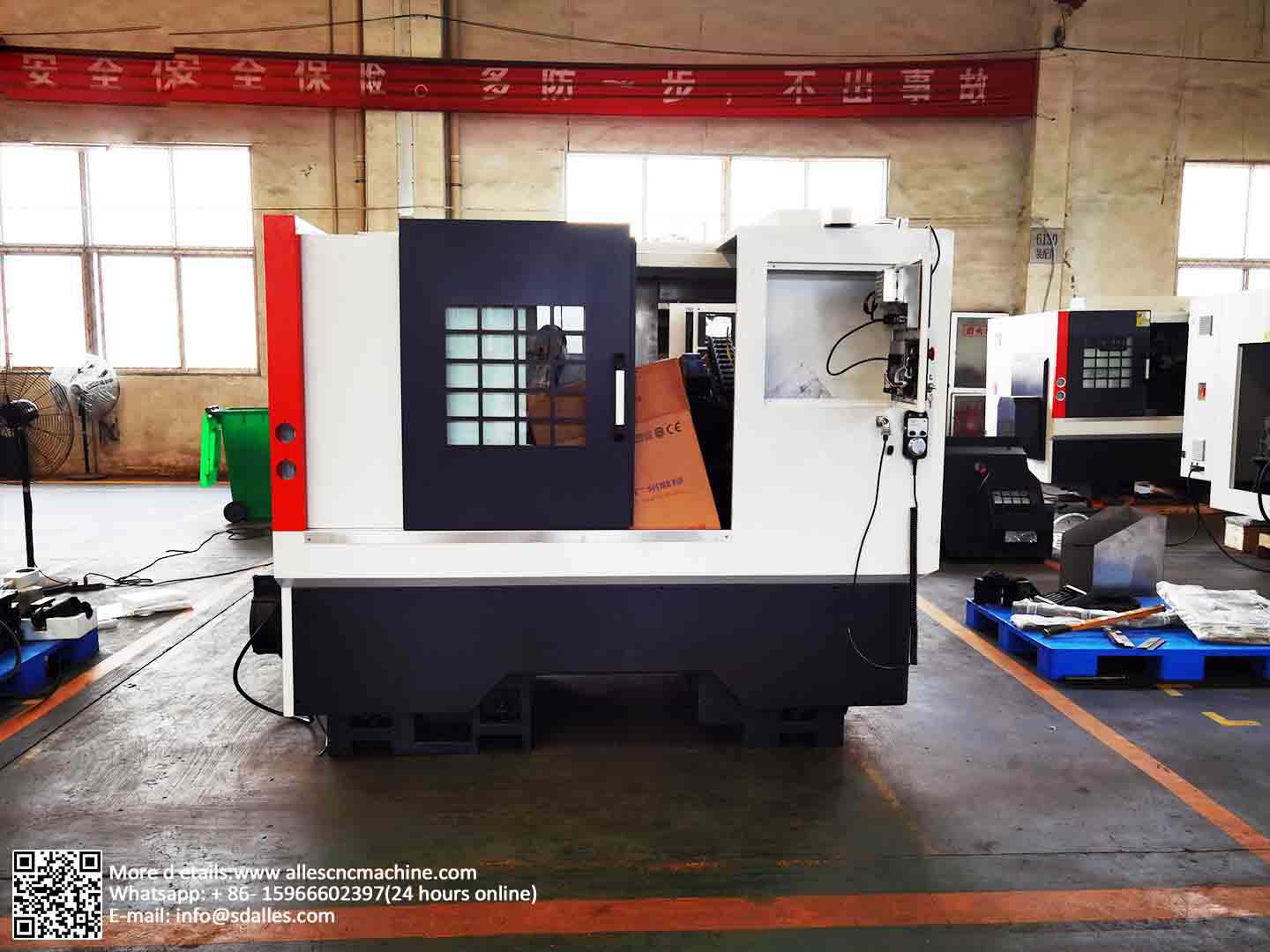

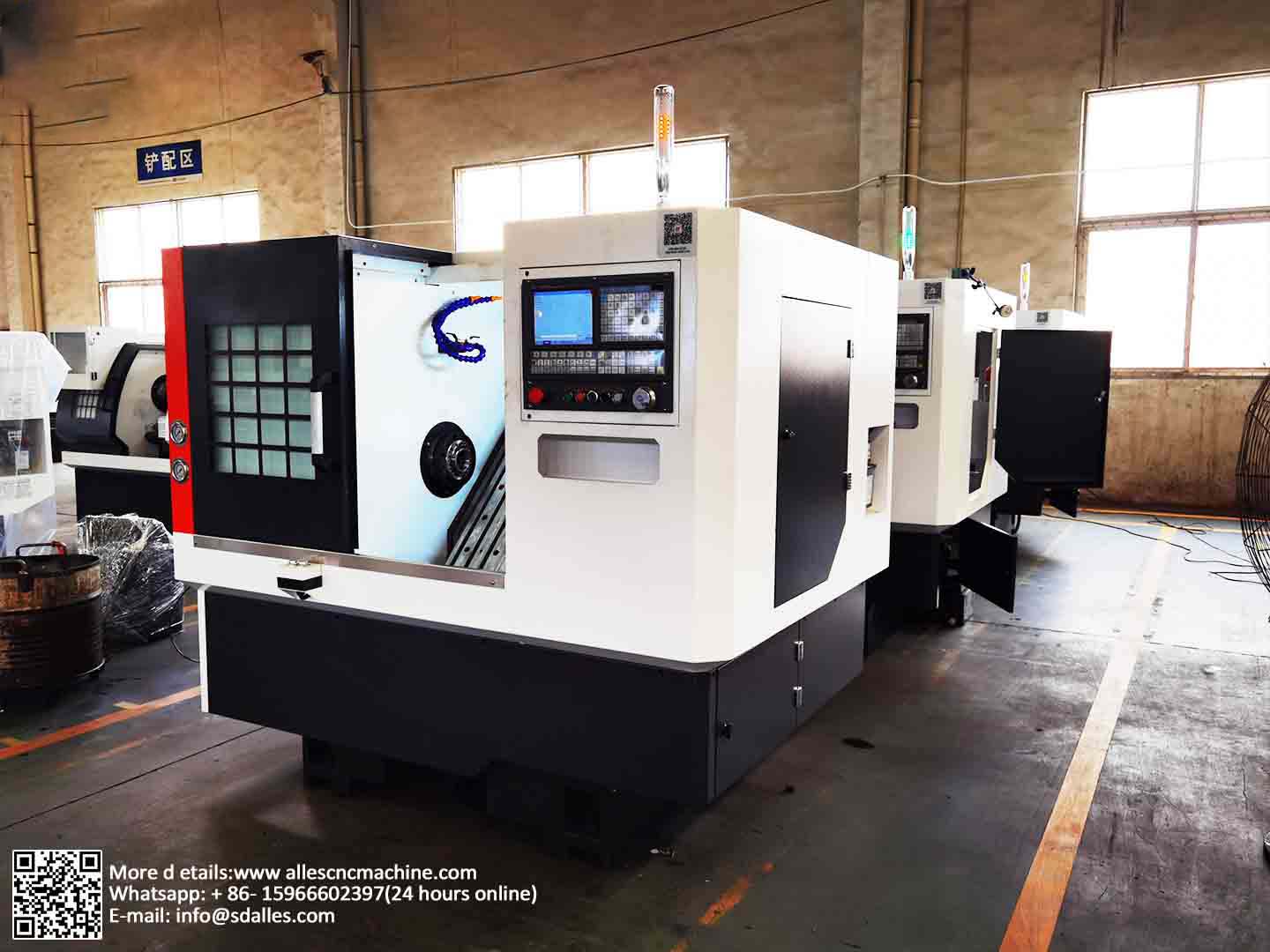

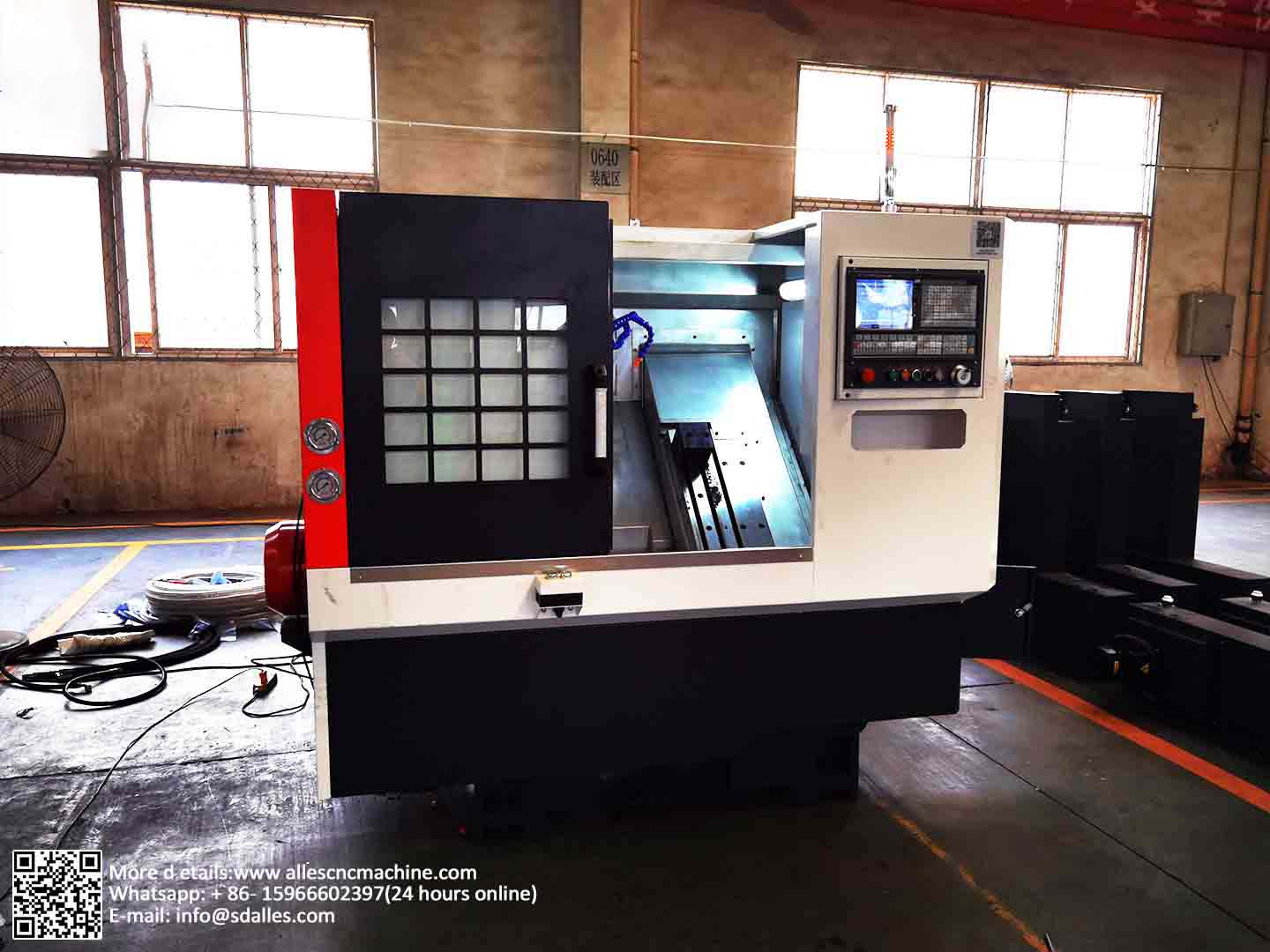

The slant bed CNC lathe is a high-speed production lathe with a precision bi-directional indexing turret. The CNC lathe machine is also equipped with ball screws, upper silver linear guides and Schneider electronics to ensure precision and high feed and cutting speed.

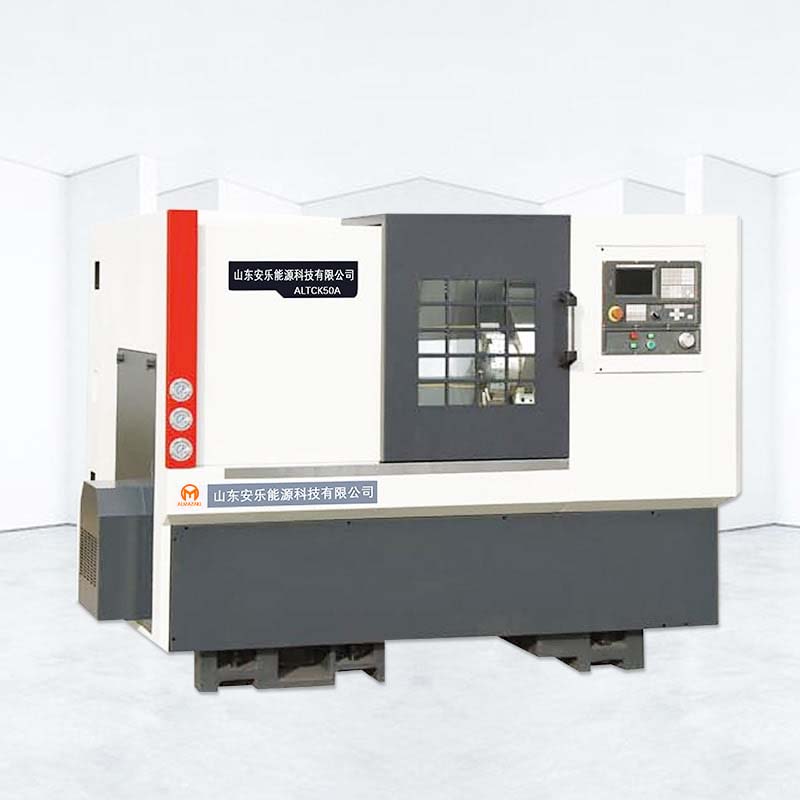

Almazakl cnc Slant bed CNC lathe ALTCK50A with Y axis
The Main Technical Parameters
Section | Item | ALTCK36A |
The main parameters | Maximum upper turning diameter of bed | Φ360mm |
Maximum machining diameter on tool post | Φ140mm | |
Maximum processing length | 300 | |
Spindle and chuck parameters | Spindle head type (optional chuck) | A2-5 |
Spindle hole diameter | Φ48 | |
Bar diameter | Φ41 | |
Maximum stroke of tailstock | 200 | |
Bed frame | Bed form and slope | Integral/45° |
Shape | length * width * height (mm) | 2200×1600×1850 |
Weight | Weight (approximate weight) | 2200kg |
1.The slant bed CNC lathe features a one-piece bed/spindle design for increased rigidity and vibration damping. even during heavy cutting operations. The rigid base also ensures accuracy and repeatability during high-speed turning operations.
2. The CNC lathe design also increases rigidity - resulting in the best surface finish. Ancillary benefits include reduced warm-up time and reduced power consumption.
3.slant bed CNC lathe high-quality 8-station turret with high positioning accuracy and high repeatability. Bidirectional indexing of the turret allows for the shortest indexing and cycle times.
Built-in Schneider Electric components, ball screws, silver linear guides and other high-quality precision components. The highest quality components combined with heavy duty premium castings - ensuring long machine life and consistent high quality part production results.
