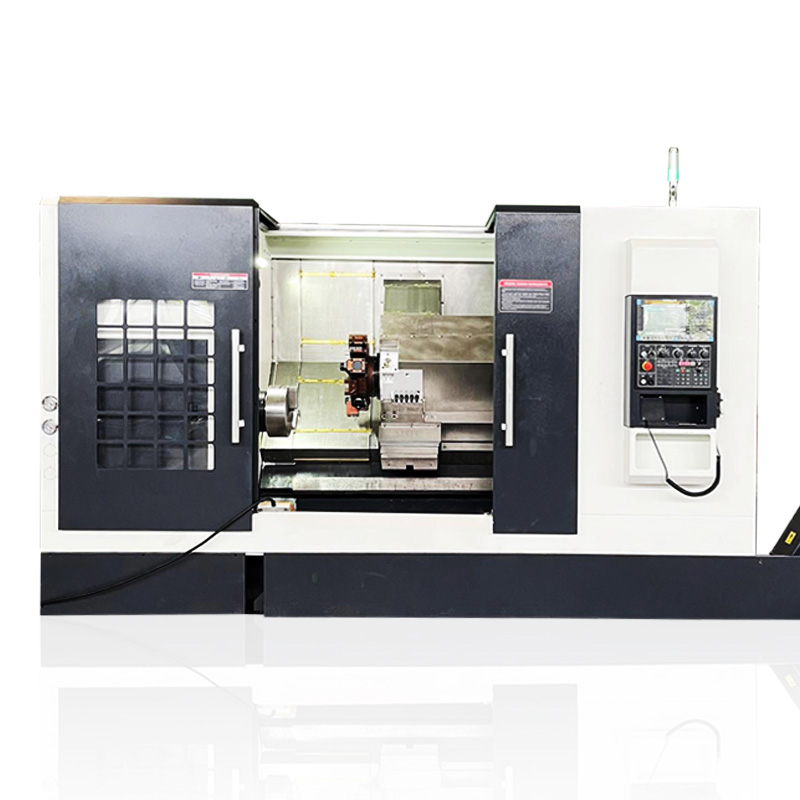

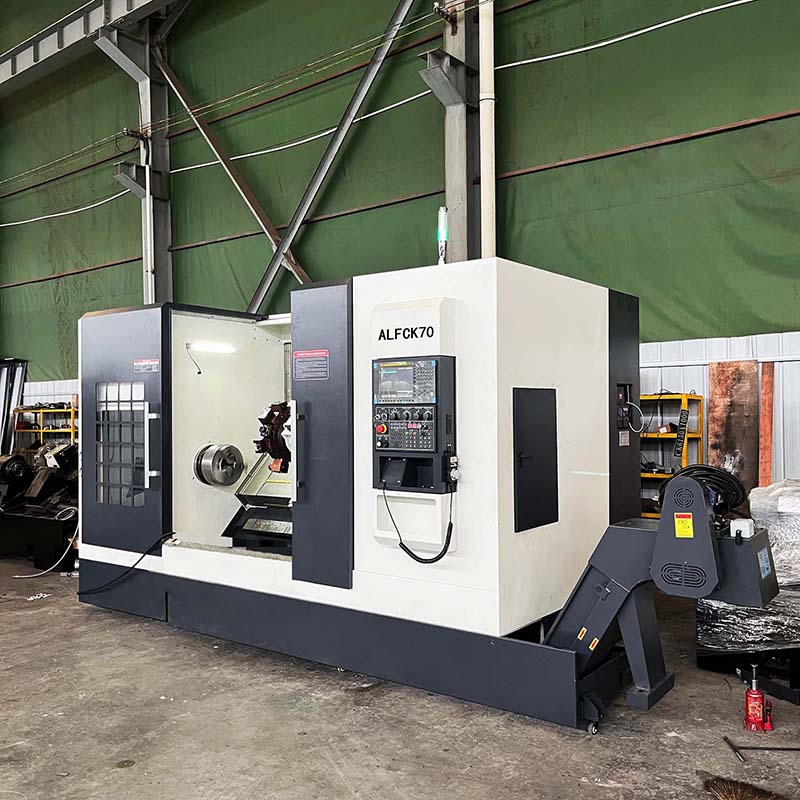

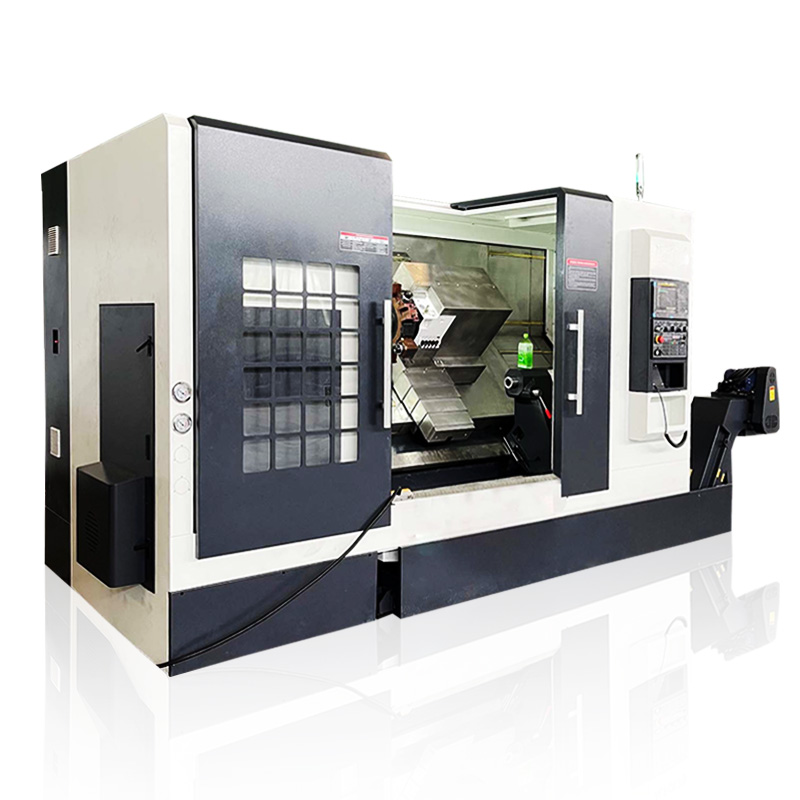

TCK700 CNC Turning and Milling Machine Introduction

The TCK700 CNC Turning and Milling Machine is a high-performance turn-mill center designed for efficient machining of medium and large-sized complex metal parts. It integrates turning, milling, drilling, tapping, and other machining processes into one machine, allowing multiple operations to be completed in a single clamping.

With a rigid inclined bed structure, high-torque spindle, precision linear guides, and powered turret, the TCK700 provides excellent cutting stability, machining accuracy, and production efficiency. It is an ideal solution for industries requiring high precision and reduced production cycles.

Key Features and Advantages of TCK700 CNC Turning and Milling Machine

1. Turning and Milling Integration for Higher Efficiency

The TCK700 combines CNC turning and milling functions in one machine tool.

It can complete:

• External and internal turning
• End face machining
• Milling
• Drilling
• Tapping
• Complex contour machining

By reducing multiple setups and workpiece repositioning, the machine significantly improves machining efficiency and part consistency.

Benefits:

✔ Reduce production time

✔ Improve machining accuracy

✔ Reduce operator workload

✔ Save floor space and investment cost

2. Heavy-Duty Inclined Bed Structure

The TCK700 adopts a high-rigidity 45° inclined bed design, providing excellent structural stability during heavy cutting operations.

The optimized casting structure improves:

• Vibration resistance
• Cutting stability
• Long-term accuracy retention
• Chip removal efficiency

It is suitable for continuous machining of large and heavy components.

3. Powerful Spindle System

The machine is equipped with a high-performance spindle system designed for both high-speed machining and heavy-duty cutting.

Main advantages:

• High spindle torque
• Large spindle bore
• Stable cutting performance
• Suitable for large diameter workpieces

Optional spindle configurations can meet different machining requirements.

4. High Precision Linear Guideways

The X and Z axes use high-precision linear roller guides, providing:

• High positioning accuracy
• Fast feed movement
• Low friction operation
• Long service life

The rigid guideway structure ensures stable performance during precision machining.

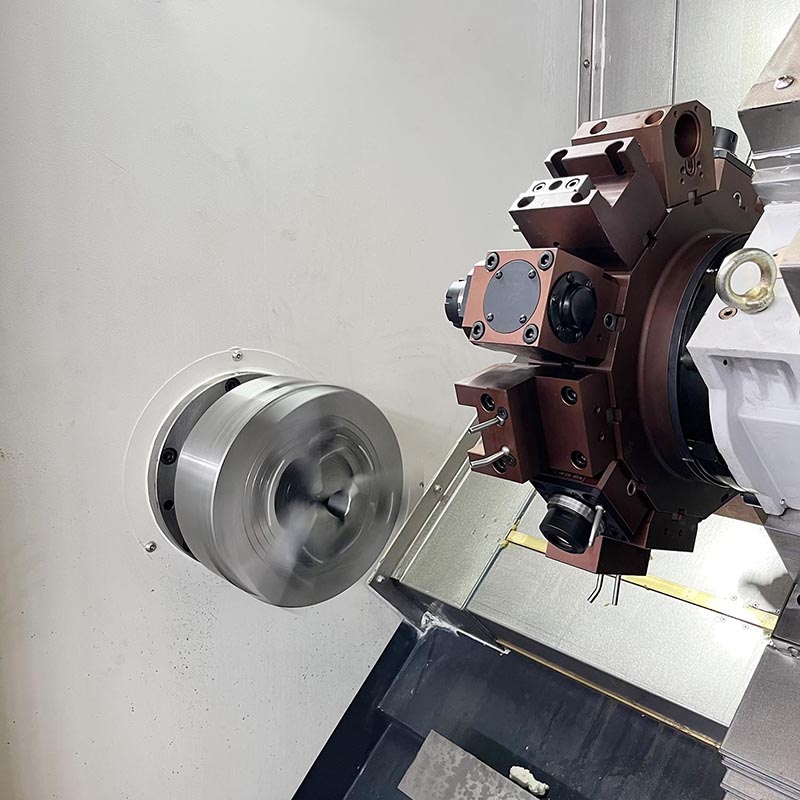

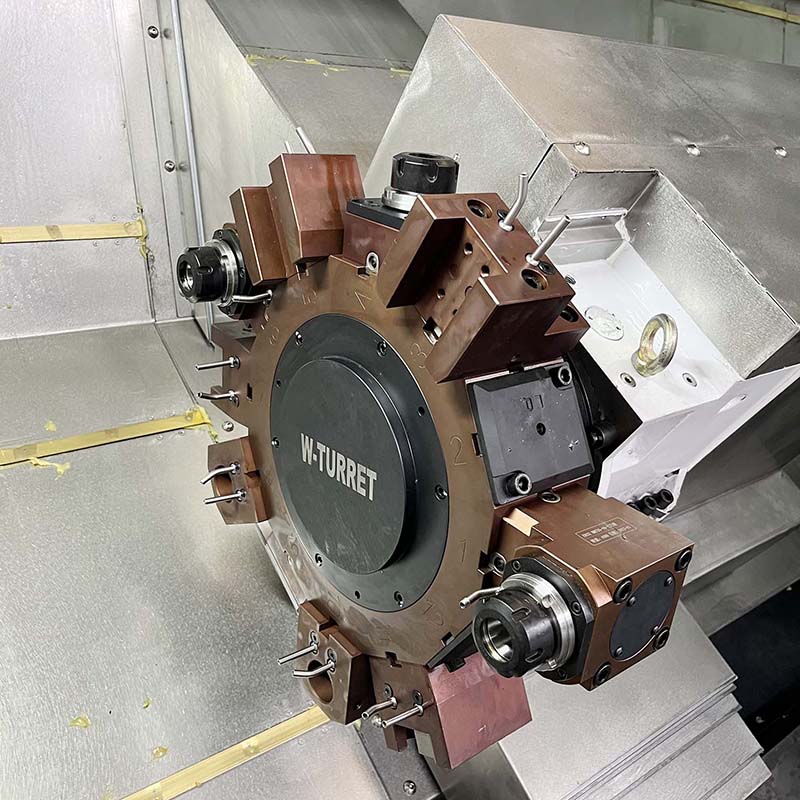

5. Powered Turret for Multi-Process Machining

The TCK700 is equipped with a BMT65 powered turret, supporting turning tools and driven milling tools.

Advantages:

• Faster tool changing
• Multiple machining processes
• Improved automation capability
• Better surface finish quality

TCK700 CNC Turning and Milling Machine Technical Specifications

Model		TCK700X1000
Processing range	The maximum turning diameter on the bed	Φ780mm
	The maximum turning diameter on the saddle	Φ500mm
	Recommended turning diameter	Φ650mm
	Effective processing length	900mm
Spindle	Spindle head type	A2-8	A2-11(optional)
	Spindle through hole diameter	88	105	132
	Bar stock diameter ≤	75m	92mm	115mm
	Maximum spindle speed	3000r/min	2500r/min	1600r/min
	Main motor rated output	15-21Kw	22-30Kw
Tailstock	Tailstock sleeve	MT5/6 internal rotation
	Tailstock movement form	Hydraulic programm able automatic
Saddle	Moving distance X	350+20mm
	Fast movement speed X/Z	16/24 m/min
	Servo motor X/Y/Z	3/3/3(4)KW
Turret	Form	BMT65 horizontal 12 stations
	Adjacent tool change time	0.5S
	Power Turret Power	7.5-11KW
	Y-axis travel	±75mm
Machine dimensions		45000x2300x2550mm
Machine net weight/gross weight		7000/7500KG

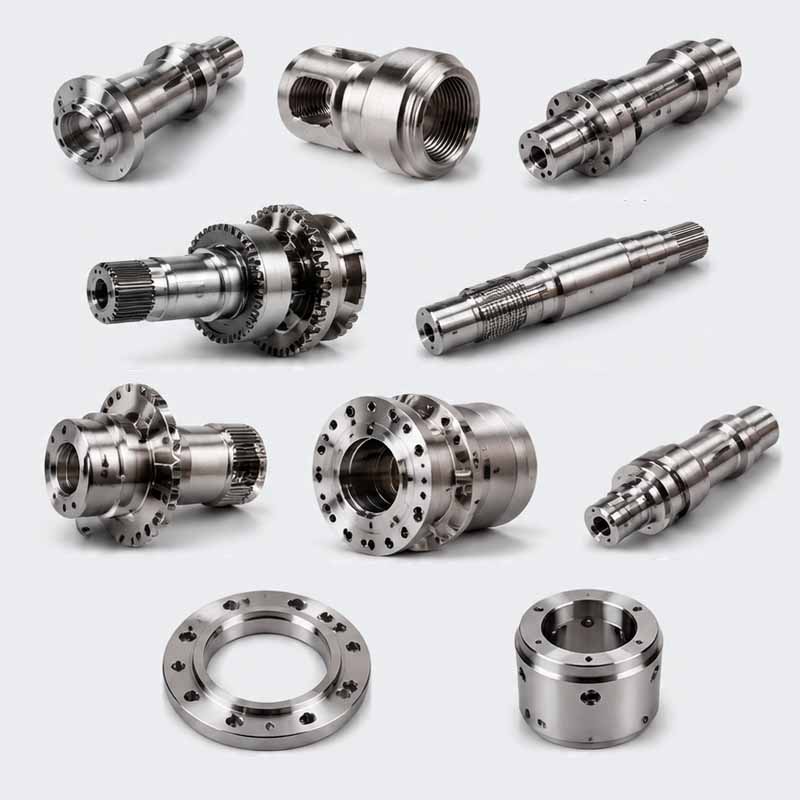

Applications of TCK700 CNC Turning and Milling Machine

The TCK700 is widely used for machining complex components in:

Oil & Gas Industry

Suitable for:

• Oil drilling components
• Pipe fittings
• Large shaft parts
• Valve bodies

Automotive Industry

Used for:

• Transmission components
• Engine parts
• Precision shafts

Aerospace Industry

Suitable for:

• Aluminum alloy parts
• Titanium alloy components
• Complex structural parts

Engineering Machinery

Used for:

• Hydraulic components
• Heavy machinery parts
• Large rotating components

General Mechanical Manufacturing

Suitable for:

• Flanges
• Shafts
• Sleeves
• Complex precision parts

Why Choose TCK700 CNC Turning and Milling Machine?

One Machine, Multiple Processes

Complete turning, milling, drilling, and tapping operations with one setup.

Higher Productivity

Reduce machining procedures and improve production efficiency.

Better Accuracy

Single clamping reduces positioning errors and improves machining consistency.

Lower Production Cost

Save labor, reduce equipment investment, and improve factory competitiveness.

Designed for Heavy Machining

Strong structure and powerful spindle support demanding industrial applications.

Standard Configuration

• CNC control system
• 45° inclined bed structure
• Hydraulic chuck
• Hydraulic programmable tailstock
• BMT65 powered turret
• Precision linear guideways
• Automatic lubrication system
• Cooling system
• Fully enclosed protection cover

Optional Configuration

• FANUC / Siemens / Syntec CNC system
• Y-axis function
• Automatic chip conveyor
• Tool setter
• Automatic tool measurement
• Bar feeder
• Special fixtures
• Hydraulic steady rest

FAQ About TCK700 CNC Turning and Milling Machine

Technical, Inspection, Delivery and After-Sales Questions

1. What tests are performed before the TCK700 is delivered?

Before shipment, every TCK700 CNC Turning and Milling Machine undergoes a complete inspection process, including:

Mechanical Inspection

• Machine leveling
• Guideway accuracy check
• Spindle runout inspection
• Tool turret positioning test

CNC System Testing

• Axis movement test
• Program operation test
• Servo system inspection
• Alarm function verification

Machining Test

• Test cutting with actual materials
• Checking machining dimensions
• Surface finish inspection
• Continuous operation test

Customers can request inspection videos, test reports, and machine operation videos before delivery.

2. Can customers inspect the TCK700 before shipment?

Yes. Customers are welcome to inspect the machine before shipment.

We can provide:

• Factory inspection videos
• Live video inspection
• Test machining videos
• Accuracy inspection reports
• Machine configuration confirmation

Customers can also appoint a third-party inspection company for pre-shipment inspection.

3. How long is the delivery time for the TCK700 CNC Turning and Milling Machine?

The delivery time depends on machine configuration and customization requirements.

Generally:

• Standard configuration: around 45–60 days
• Customized configuration: depends on technical requirements

Before ordering, we will confirm the production schedule, machine completion date, and shipping arrangement with customers.

4. How is the TCK700 CNC Turning and Milling Machine packaged for shipping?

The machine is professionally prepared for international transportation.

Packaging includes:

• Rust prevention treatment
• Waterproof protection
• Reinforced export wooden case
• Fixed machine components
• Shock-resistant packaging

The packaging is designed to protect the machine during sea transportation and long-distance logistics.

5. Does ALLES CNC provide installation and commissioning service?

Yes. ALLES CNC provides professional installation and commissioning support.

• Service options include:
• Remote installation guidance
• Online technical support
• Video operation training
• On-site engineer service (available according to region and project requirements)

Our engineers help customers complete machine installation, parameter setting, and trial production.

6. What after-sales support is available after purchasing TCK700?

ALLES CNC provides long-term technical support, including:

• Remote troubleshooting
• Spare parts supply
• CNC parameter support
• Maintenance guidance
• Application support

Our service team helps customers solve machine operation and maintenance problems efficiently.

7. Can the TCK700 be customized for special machining requirements?

Yes. The TCK700 can be customized according to different production needs.

Customization options include:

• Different spindle specifications
• Larger machining capacity
• Y-axis milling function
• Automatic chip conveyor
• Bar feeder connection
• Tool measurement system
• Special fixtures

Our engineers can provide a complete machining solution based on customer drawings and production requirements.

8. What information should customers provide before ordering a TCK700?

To recommend the best configuration, customers are advised to provide:

• Workpiece drawings
• Material information
• Maximum machining diameter and length
• Required machining processes
• Production quantity
• Accuracy requirements
• CNC system preference

This allows our engineers to select the correct spindle, tooling, and machine configuration.
