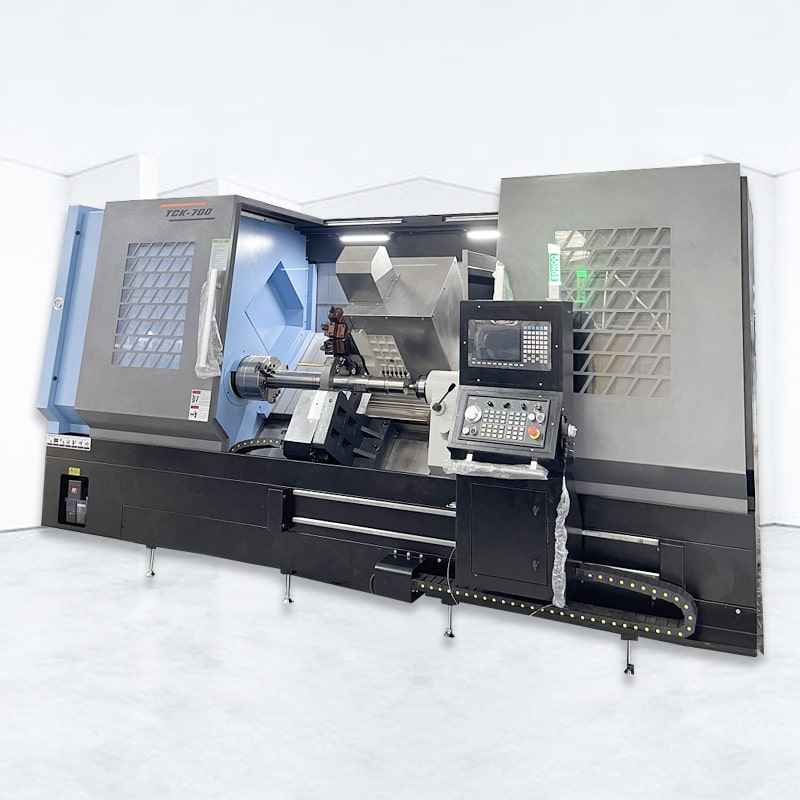

ALMAZAKL CNC ALTCK700 CNC mill-turn machines are multi-function machines that can perform both turning and milling operations in one setup. They are widely used in the manufacturing industry to produce complex parts with high precision and accuracy.
CNC Turning And Milling Compound Machine The 45° inclined bed and the base are integrally cast, cast with high-strength cast iron, the reinforcement ribs that are optimally arranged through finite element analysis, high-strength cast iron materials, resin sand molding, and sufficient secondary aging And natural aging, so that the basic parts of the machine tool have high rigidity and ensure the stability of the machine tool for long-term use; with automatic forced lubrication, the frictional resistance of the feed movement is greatly reduced, and the accuracy and life of the machine tool are improved.
ALMAZAKL CNC Super low price CNC lathe ALCK6150
1.Aerospace: CNC mill-turn machines are used in the aerospace industry to manufacture critical components such as engine components, landing gear and structural components.
2.Medical: CNC turning and milling machines are used in the medical industry to produce high-precision implants, surgical instruments, and other medical equipment.

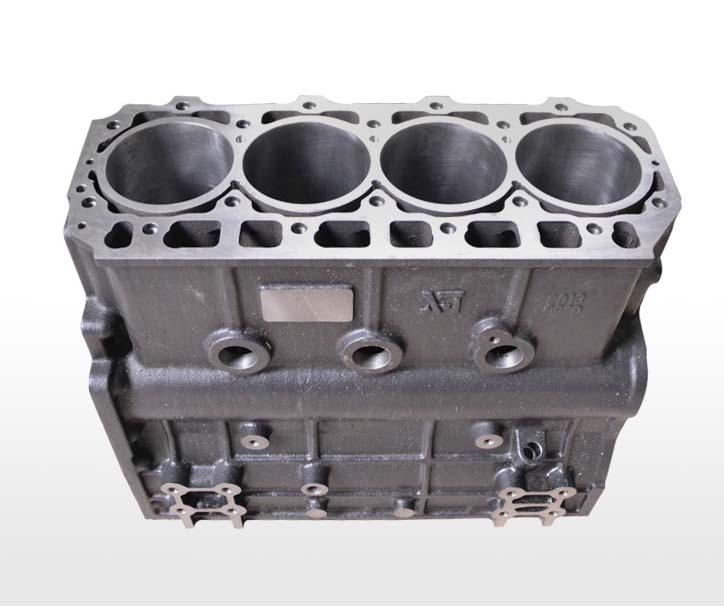

3.Automotive: CNC turning and milling machines are used in the automotive industry to produce parts such as engine blocks, transmission components, and suspension components.
4.Defense: CNC turn-mill machines are used in the defense industry to produce parts for weapons, tanks, and other military vehicles.

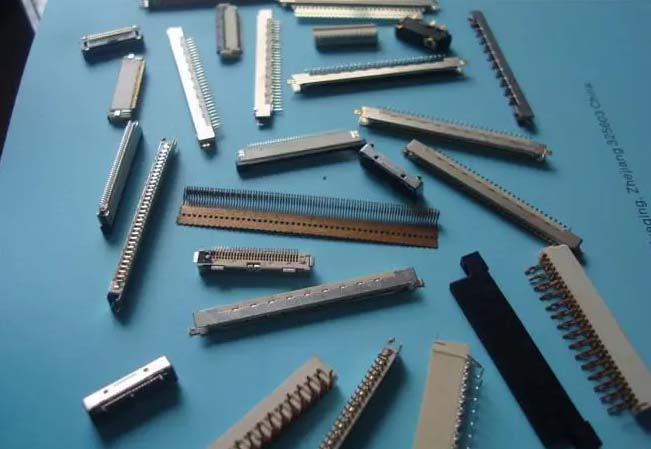

5.Electronics: CNC turning and milling machines are used in the electronics industry to produce parts such as connectors, housings, and heat sinks.
6.Oil and Gas: CNC turn-mill machines are used in the oil and gas industry to produce parts such as valves, pumps and drilling equipment.
technical specifications | Unit | unit | TCK700 |
Processing range | The maximum turning diameter on the bed | mm | Φ780 |
The maximum turning diameter on the saddle | mm | Φ500 | |
Recommended Turning Diameter | mm | Φ650 | |
Center distance | mm | 1100-1600-2100-3100 | |
Chuck clamping processing length | mm | 900/1400/1900/2900 | |
saddle | Fast movement speed X/Z | m/min | 16/24 |
Moving distance X | mm | 350+20 | |
knife tower | Tool Dimensions (Turning / Boring) | mm | 32×32/Φ32(40) |
Y-axis travel | mm | ±75 |
