Slant Bed CNC Lathe Bed For Machining Aerospace Industry Parts
ALMAZAKL CNC The TCK66AX800 slant bed CNC lathe is a versatile machine tool used for the machining of various types of workpieces. The specific workpieces that can be machined on this lathe depend on factors such as the size and shape of the workpiece, the material being machined, and the specific capabilities of the machine.
Features Of The TCK66AX800 Slant Bed CNC Lathe:
1. CNC Control: A slant bed CNC lathe operates via computer numerical control (CNC), which means it is programmable and can be set up to produce complex parts with high precision.
2. Inclined bed: The inclined bed design can improve chip evacuation, better access to the workpiece, and increase stability during cutting operations.
3. Spindle: The spindle is the rotating part that holds the workpiece in place. The spindle of the inclined bed CNC lathe can be driven by a motor or a belt.
4. Tool Turret: Tool turrets are used to hold cutting tools used in machining operations. The turret can be rotated to bring the desired tool into position.
5. Chuck: The chuck is used to hold the workpiece firmly in place during machining.
6. Tailstock: The tailstock provides additional support for the workpiece during machining operations. It can move along the bed to adapt to the length of the workpiece.
7. Cooling system: The cooling system is used to cool the tool and workpiece during machining operations. This helps to extend the life of the tool and improve the quality of the finished part.
8. Chip Conveyor: The chip conveyor is used to remove chips generated during machining operations. This helps keep the work area clean and prevents damage to the machine.
These are some common features of slanted bed CNC lathes. Specific features of the TCK66AX800 lathe may vary by make and model.
Processing Workpiece Of TCK66Ax800 Slant Bed CNC Lathe:
1.Some common workpieces that can be machined on the TCK66A/800 slant bed CNC lathe include:
2.Shafts and cylinders: These can be made from materials such as steel, aluminum, brass, and titanium.
3.Automotive parts: The lathe can be used to machine parts for cars and other vehicles, such as brake rotors, transmission components, and engine parts.
4.Aerospace components: The TCK66A/800 slant bed CNC lathe is commonly used to machine parts for the aerospace industry, including turbine blades, jet engine components, and landing gear parts.
5.Medical equipment: The lathe can also be used to machine parts for medical equipment, such as prosthetics, orthopedic implants, and surgical instruments.
6.Industrial equipment: The lathe can be used to machine parts for a wide range of industrial equipment, including pumps, valves, and gearboxes.

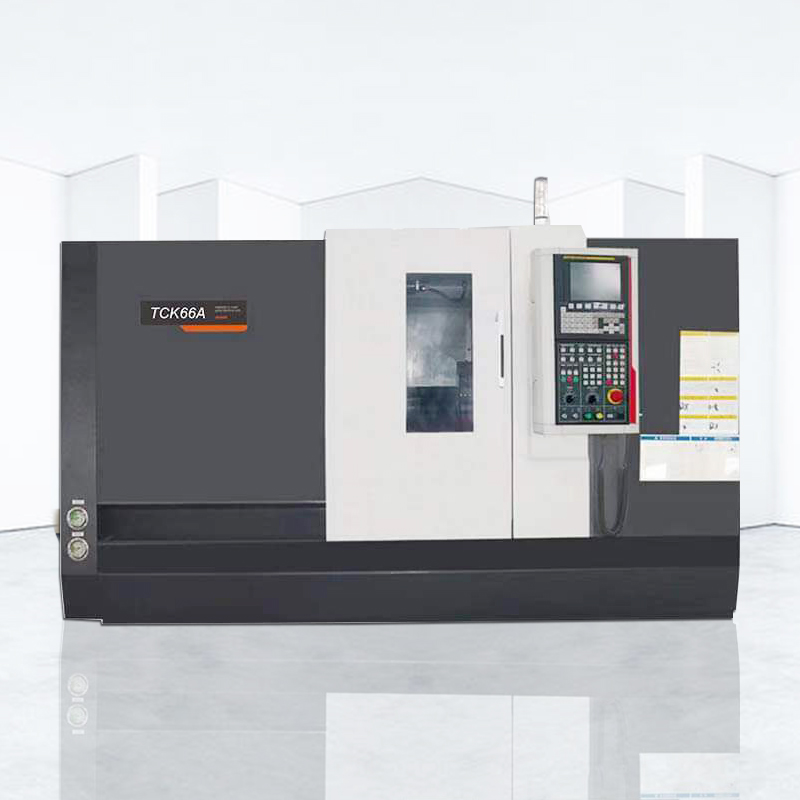

ALTCK66A slant bed cnc lathe
The Main Technical Parameters
| Item | Unit | ALTCK66A/800 |
| Maximum turning diameter of bed | mm | φ660 |
| X-direction rail span | mm | 343 |
| Z-direction rail span | mm | 490 |
| Maximum turning diameter of slide | mm | φ400 |
| Maximum turning length | mm | 700 |
| Spindle hole diameter | mm | φ85 |
| Tailstock sleeve stroke | mm | 250 |
| Tools in electric tool post | pcs | 4 |
| Knife square size | mm | □32×32(8 stations) |
| X/Z direction moving speed | m/min | 4/5 |
| X direction stroke | mm | 270 |
| Z direction stroke | mm | 800 |
| Minimum Setting Unit | mm | 0.001 |
| Total Electric Power | KW | 18 |
| Machine Weight | Kg | 4500 |
| Machine Size（L×W×H） | mm | 3500×2000×2100 |
