Horizontal CNC Lathe Automatic Programming Thread Machine

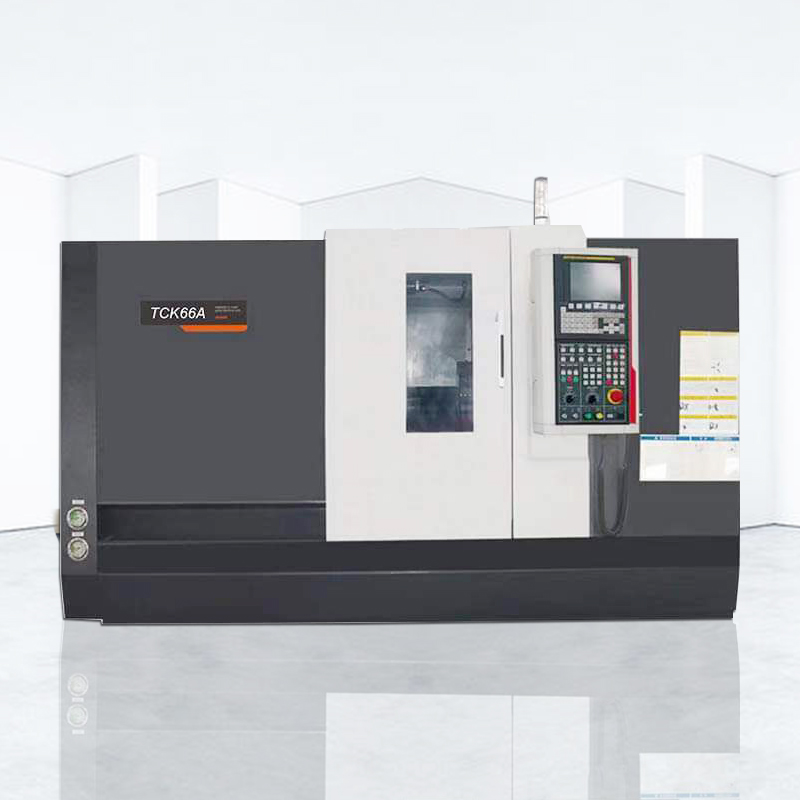

ALTCK66A slant bed cnc lathe
The Main Technical Parameters
| Item | Unit | ALTCK66A/800 |
| Maximum turning diameter of bed | mm | φ660 |
| X-direction rail span | mm | 343 |
| Z-direction rail span | mm | 490 |
| Maximum turning diameter of slide | mm | φ400 |
| Maximum turning length | mm | 700 |
| Spindle hole diameter | mm | φ85 |
| Tailstock sleeve stroke | mm | 250 |
| Tools in electric tool post | pcs | 4 |
| Knife square size | mm | □32×32(8 stations) |
| X/Z direction moving speed | m/min | 4/5 |
| X direction stroke | mm | 270 |
| Z direction stroke | mm | 800 |
| Minimum Setting Unit | mm | 0.001 |
| Total Electric Power | KW | 18 |
| Machine Weight | Kg | 4500 |
| Machine Size（L×W×H） | mm | 3500×2000×2100 |
Features Of Automatic CNC Lathe Machine:
1.CNC lathe highest precision Taiwan linear guide
2.Horizontal CNC lathe machine High-speed spindle unit, optional domestic spindle
3.High rigidity cast iron
4.Integrated automatic lubrication
CNC Lathe Advantages:
ALMAZAKL CNC Automatic CNC lathe machine is an economical ,practical type machine tools with good quality , they are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, whit worth, module and diameter pitch threads as well as taper turning, facing, drilling, reaming and broaching for oil grooves and key ways etc. The work piece produced on machine can achieve good accuracy and surface roughness.
5.CNC lathe for sale One-piece casting inclined bed CNC lathe
CNC Lathe Machine Application Industry:
Horizontal CNC lathe machine is suitable for automobiles, motorcycles, electronics, aerospace, military, petroleum and other industries. The bed has a high rigidity of 45 degrees, and the high-torque spindle adopts Taiwan track line to ensure high rigidity of the machine tool. The spindle is close to the center of the manipulator, and the work piece loading and unloading is more convenient.
