The Large CNC Lathe Spindle Assembly is suitable for heavy duty work while being well balanced for precision machining at high RPM.
1Horizontal CNC lathe machine adopts direct-coupled feed motor and screw rod to ensure machining accuracy and positioning accuracy.
2. The spindle box of the CNC lathe machine adopts a symmetrical structure to make the thermal deformation uniform and avoid the deviation of the spindle center.
3. The CNC lathe spindle box is lubricated by oil bath circulation to reduce thermal deformation;
4. The front end of the CNC lathe spindle adopts a three-support structure with two-way angular contact ball bearings, which improves the accuracy and rigidity;
5. The gears in the CNC lathe head stock and guide rails are quenched to ensure accurate transmission and high rigidity.
1. High-power spindle: The spindle adopts high-precision rolling bearings, with strong power and wide speed range, which can meet different processing requirements 5. Multi-functional processing: It can perform various processing such as turning, hole, tapping, etc., which improves processing efficiency and flexibility
2. Humanized design: easy to operate, with a good human-computer interaction interface, the operator can easily master the operation skills.
3. High reliability: adopt high-quality transmission parts and control system to ensure the stability and reliability of the machine tool

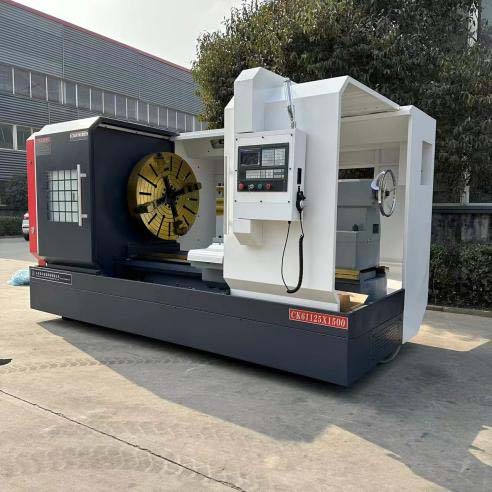

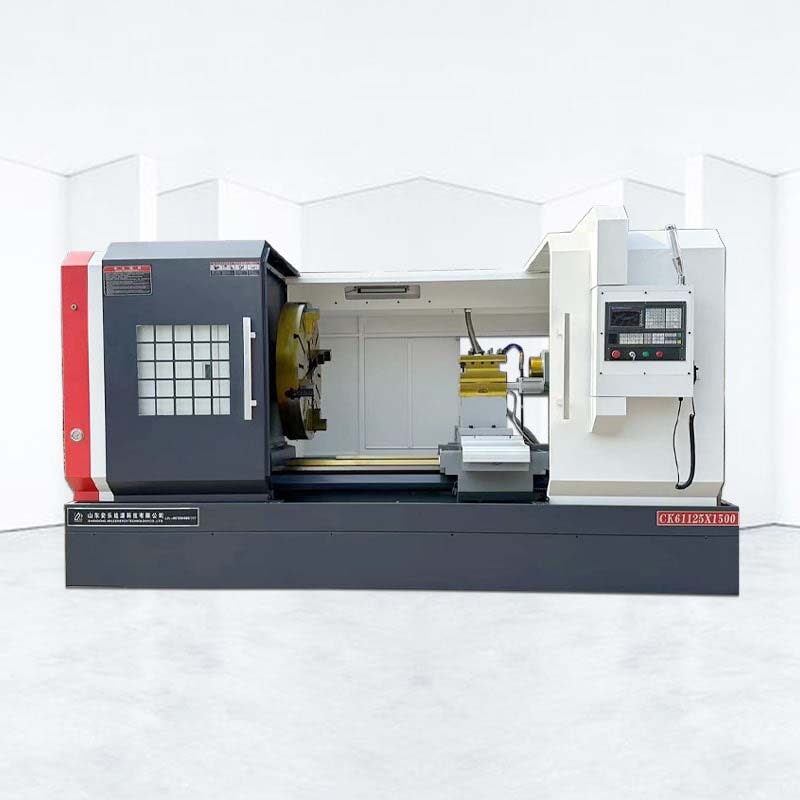

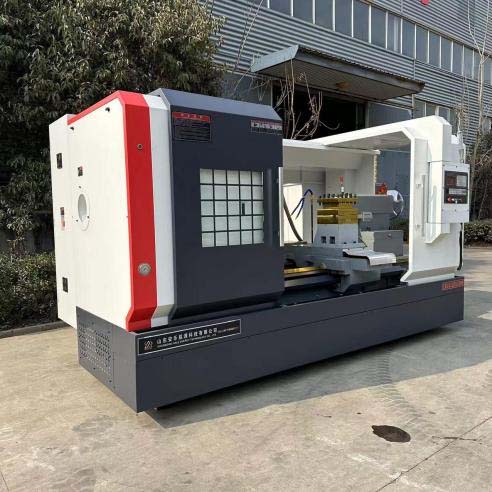

ALMAZAKL CNC ALCK61100X1500 CNC lathe machine
Project | Content | Unit | ALCK61125X1500 |
Processing range | Maximum turning diameter on the bed slide | mm | Φ1250 |
Maximum turning diameter on the skateboard | mm | Φ900 | |
Maximum processing length | mm | 1500 | |
Effective processing length | mm | 1350 | |
Maximum machining diameter | mm | Φ1250 | |
Maximum bar diameter | mm | Φ630 | |
Spindle | Spindle through hole diameter | mm | Ф105 |
X/Z axis | N.m | 10/15 | |
X/Z axis rapid traverse speed | m/min | 4/6 | |
Feed | X/Z axis travel | mm | 530/1500 |
X/Z axis minimum displacement unit | mm | 0.001 | |
Machine net weight | kg | 5000 | |
Machine tool dimensions (length × width × height) | mm | 3700*1820*1780 | |
Electricity demand (power/current) | kW/A | 20kW/30A |
