Horizontal Large CNC Lathe Swing Bed
ALMAZAKL CNC horizontal CNC lathe machine is a general standard automatic processing equipment for metal processing, capable of semi-finishing and finishing of mechanical parts, with the main features of reliable structure and convenient operation.
Horizontal CNC Lathe Machine Features:
1. ALMAZAKL CNC Standard configuration GSK bus system, 17-bit high-power absolute value feed servo, is the best combination of accuracy and efficiency;
2. CNC lathe The integrally cast integral bed foot has good rigidity and good stability;
3.CNC lathe machine Fully enclosed double sliding door sheet metal, system box and rotation, beautiful shape, suitable for introduction, no dripping;

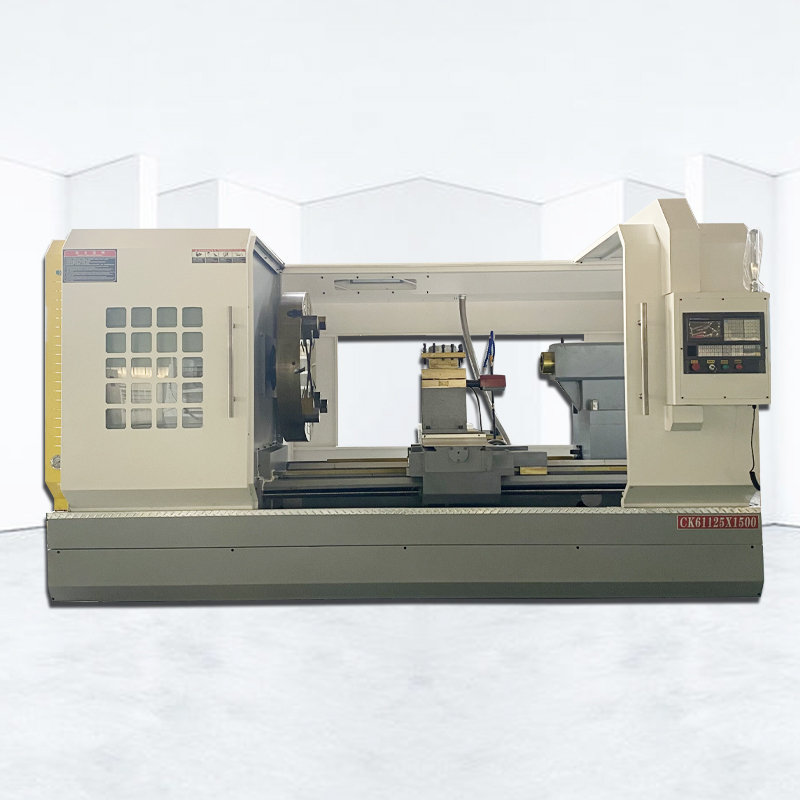

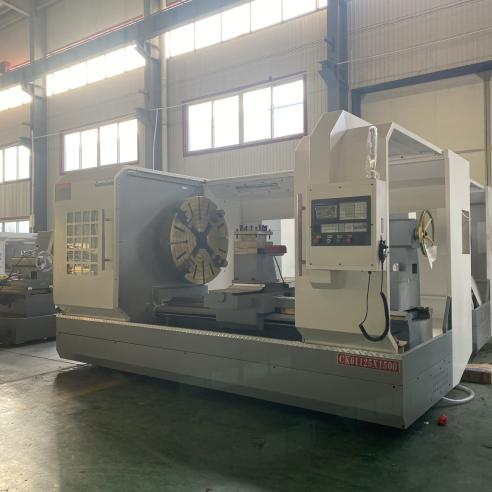

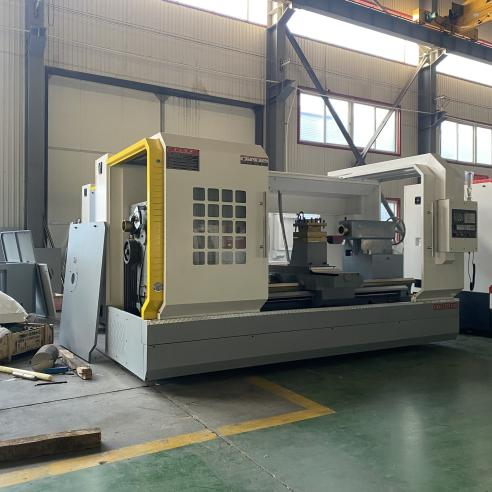

ALMAZAKL CNC ALCK61100X1500 CNC lathe machine
Equipment configuration and parameters
| Project | Content | Unit | ALCK61125-1500 |
| Processing range | Maximum turning diameter on the bed slide | mm | Φ1250 |
| Maximum turning diameter on the skateboard | mm | Φ900 | |
| Maximum processing length | mm | 1500 | |
| Effective processing length | mm | 1350 | |
| Maximum machining diameter | mm | Φ1250 | |
| Maximum bar diameter | mm | Φ630 | |
| Inverter | kW | 11 | |
| X/Z axis | N.m | 10/15 | |
| X/Z axis rapid traverse speed | m/min | 4/6 | |
| Feed | X/Z axis travel | mm | 530/1500 |
| X/Z axis minimum displacement unit | mm | 0.001 | |
| Tailstock sleeve diameter | mm | Φ100 | |
| Machine net weight | kg | 5000 | |
| Machine tool dimensions (length × width × height) | mm | 3700*1820*1780 | |
| Electricity demand (power/current) | kW/A | 20kW/30A |
CNC Lathe Application:

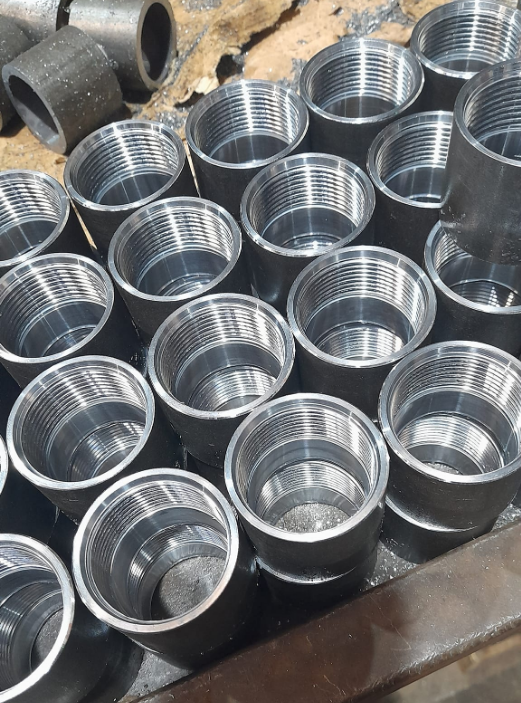

Automatic CNC lathe machine is widely used in auto parts, valves, plumbing, abrasives, aerospace, 3C and semiconductor, communications and other industries. Products all over the country, exported to Russia, Southeast Asia and some European countries.
