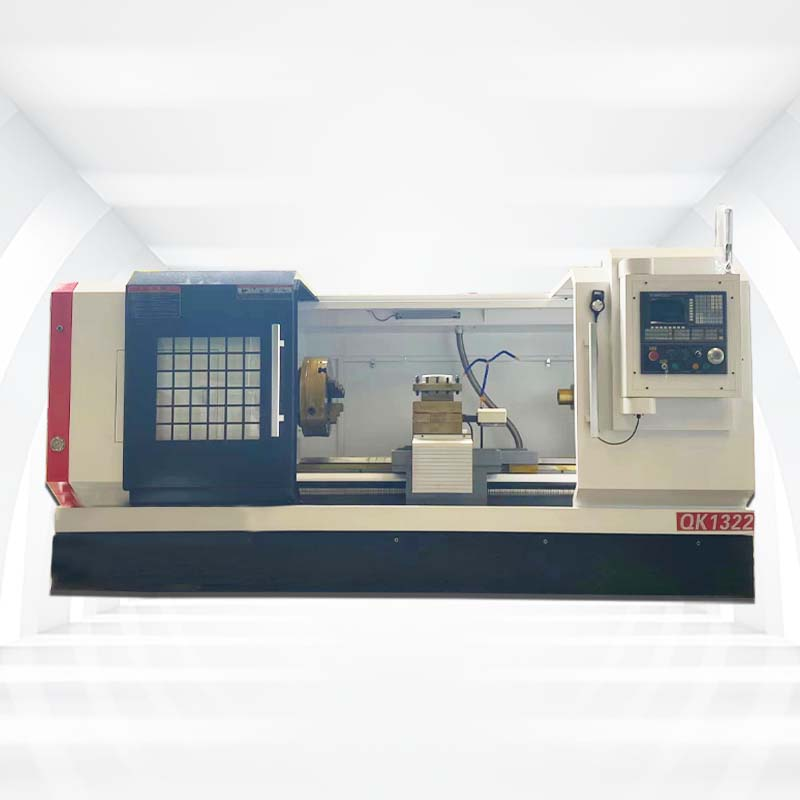

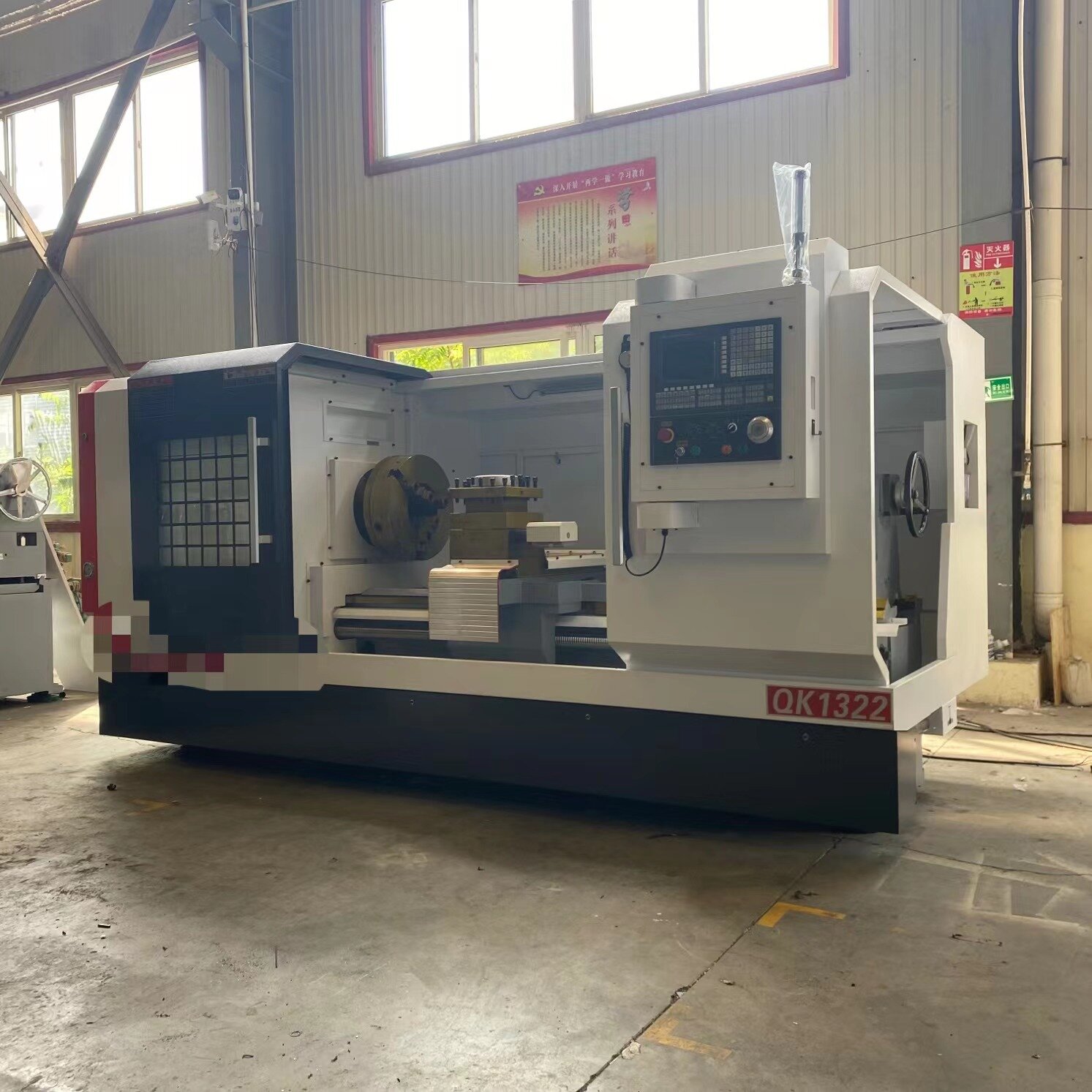

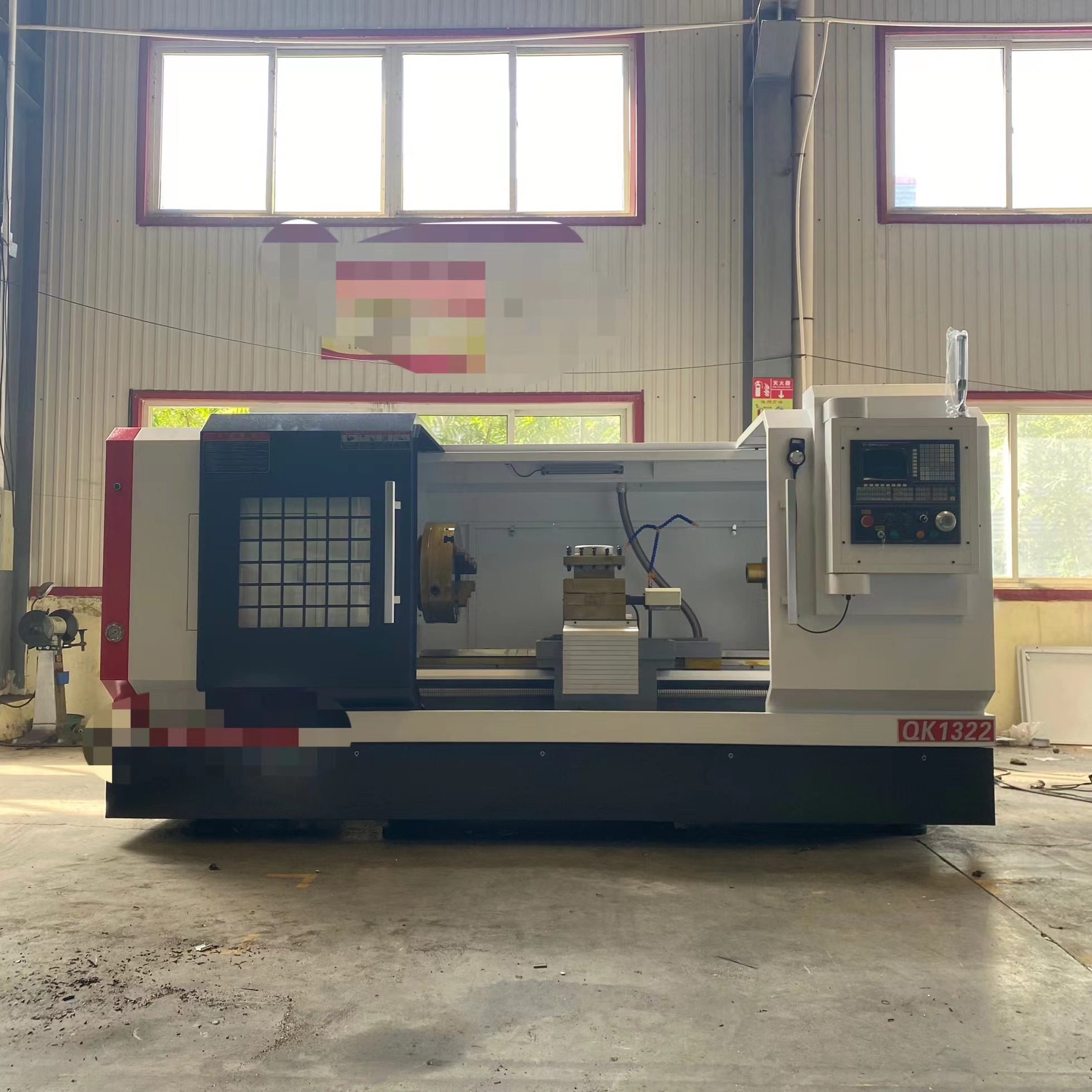

CNC Pipe Thread Lathe Processing Pipe
ALMAZAKL CNC pipe threading machine, designed for rough and semi-finish turning of large components and high stock removal volumes.
Processing Characteristics Of CNC Pipe Thread Lathe：
1. The integrated casting bed of CNC lathe machine ensures the high rigidity of the machine;
2.CNC pipe thread lathe is suitable for internal and external processing of pipes;
3. The modern design of horizontal CNC lathe machine guide rail provides high rigidity;
4. ALMAZAKL CNC components from world famous manufacturers.
CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
| Project | Content | Unit | ALQK1322 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | mm | Φ330 | |
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ630 | |
| Maximum bar diameter | mm | Φ330 | |
| Spindle through hole diameter | mm | Φ220 | |
| motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| Others | battery capacity | KVA | 15 |
| Machine weight | kg | 4200 | |
| Machine tool dimensions: length × width × height | mm | 3750/1830/1900 |
Please note that the bed length can be customized according to the actual needs of customers
Application
The CNC pipe thread lathe is mainly designed to process internal and external threads of pipes with various diameters, and has all the general functions of ordinary CNC lathes. These lathes are commonly used in industries such as petroleum, mining, and exploration. It is a high-performance equipment for processing and repairing drill pipes, drill pipes, threaded connections, etc.
