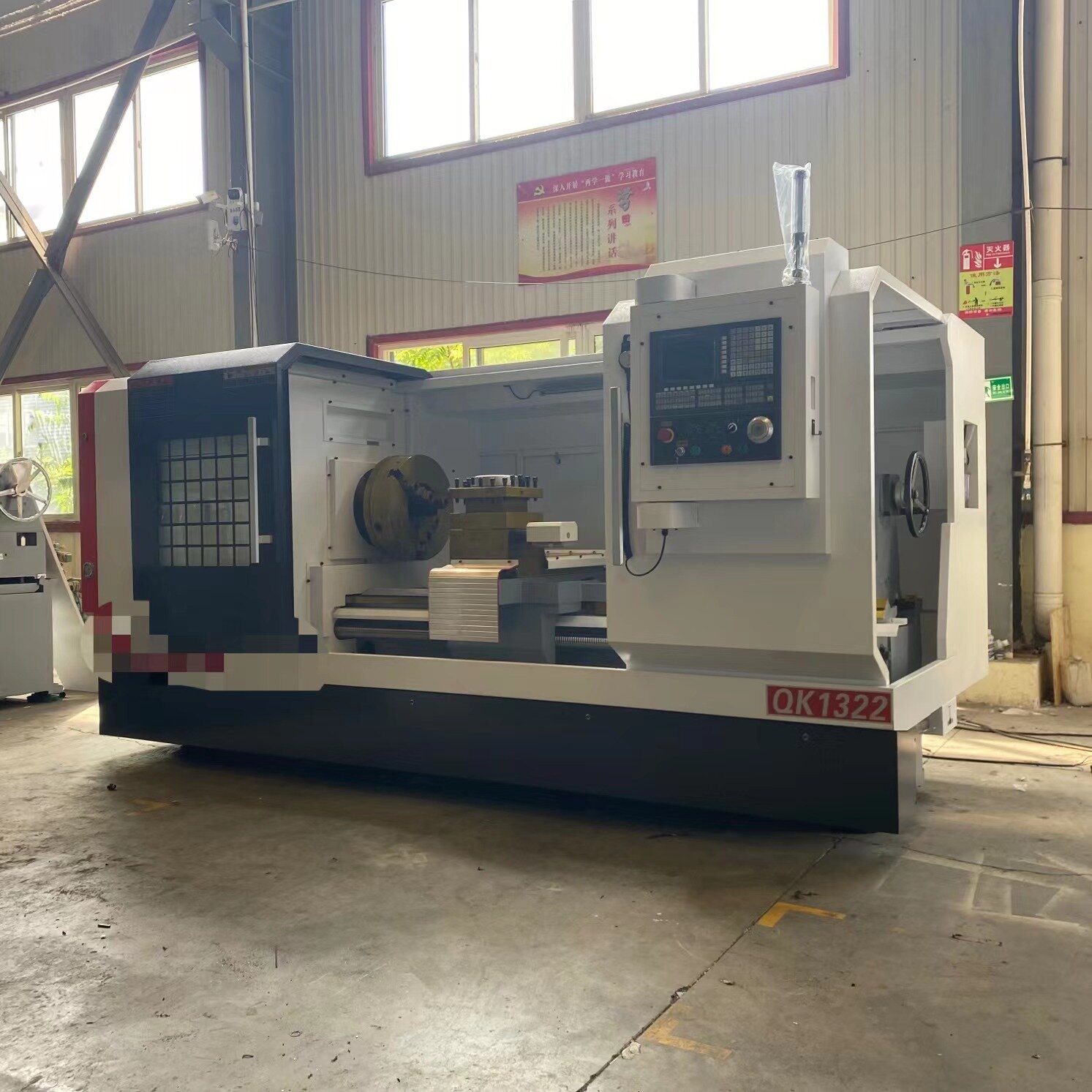

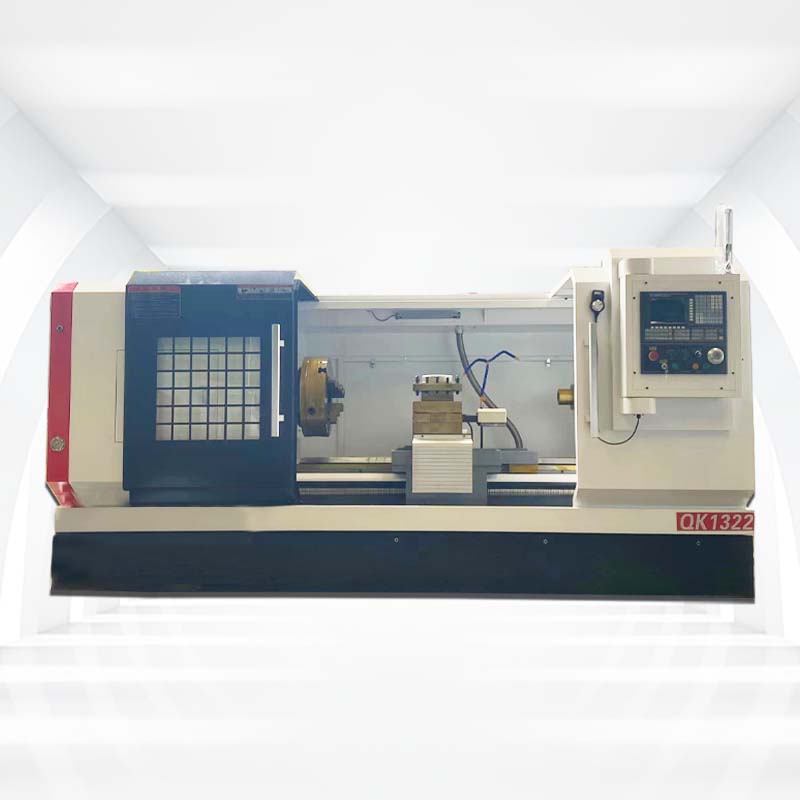

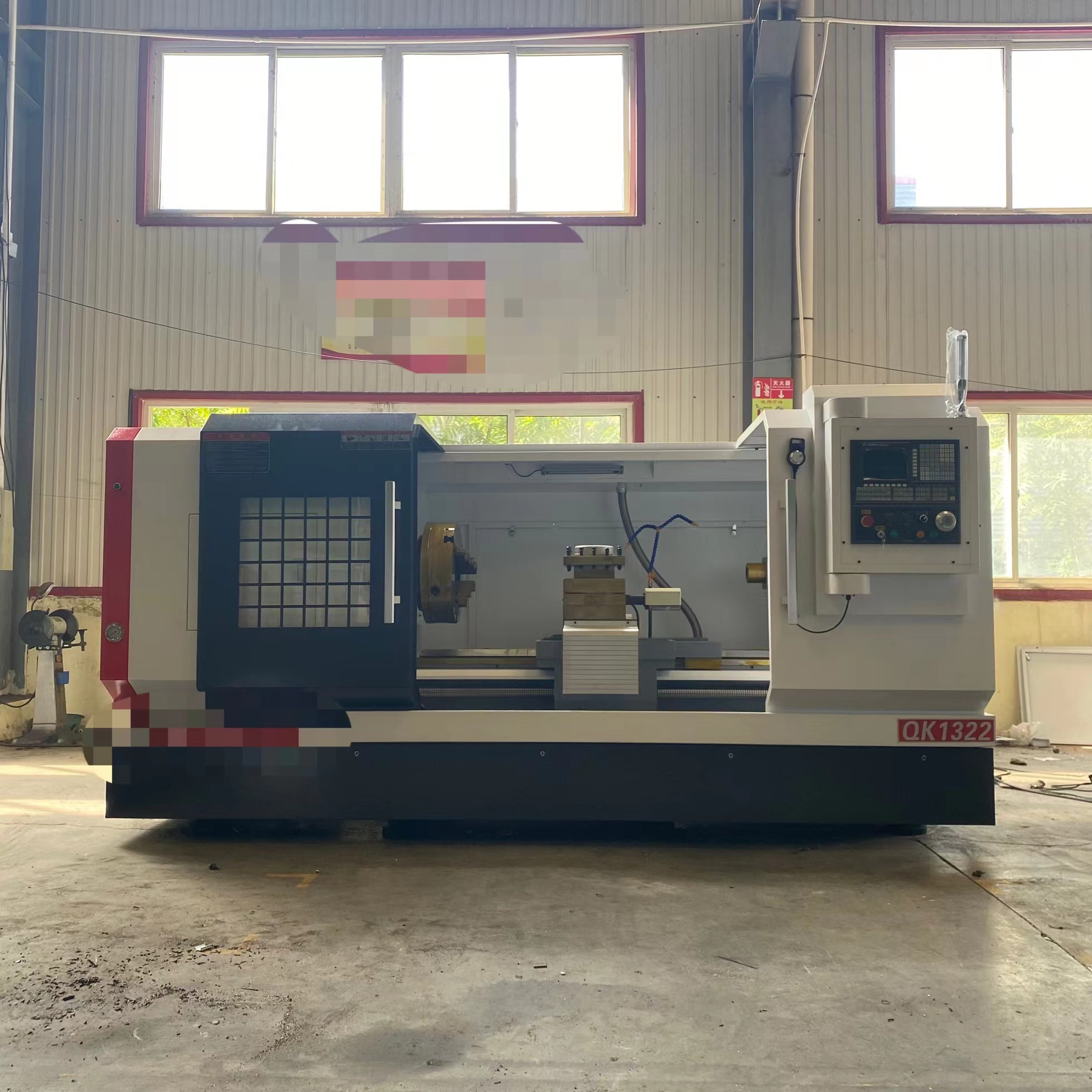

The CNC pipe threading machine is developed for the oil field pipe thread turning and it is suitable for all types of pipe threads turning. The machine also can be used as general CNC lathes to machining complex shapes,like shaft sleeve, disc-type parts.
CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
Project | Content | Unit | ALQK1322 |
Processing range | Maximum turning diameter of bed | mm | Φ630 |
range | Maximum turning diameter on the skateboard | Φ330 | |
Maximum processing length | mm | 1500 | |
Maximum machining diameter | mm | Φ630 | |
Maximum bar diameter | mm | Φ330 | |
Spindle through hole diameter | mm | Φ220 | |
Spindle bore taper | 1:20 | ||
feed | X/Z axis travel | mm | 350/1500 |
X/Z axis screw diameter × pitch | mm | φ3208/φ5010 | |
number of stations | 4 | ||
Tool Specifications: Turning/Boring | mm | 32/40 | |
motor | Spindle motor power | Kw | 11 |
Spindle motor torque | NM | 48 | |
Others | battery capacity | KVA | 15 |
Machine weight | kg | 4200 | |
Machine tool dimensions: length × width × height | mm | 3750/1830/1900 |
Please note that the bed length can be customized according to the actual needs of customers
1.CNC lathe High rigidity casting bed
2.CNC lathe machine High precision spindle bearing
3.ALMAZAKL CNC Bed guide ways industively hardened
1, We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.
2, The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like.
3, The surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
4, Step less spindle speed controlled by servo,low-torque,high-speed precision
5, Set up self lubrication system, and easy to maintain.
ALMAZAKL CNC Automatic CNC lathe machine is used for high margin turning operations, including rough machining of cast iron castings. The main direction is rough machining of large parts and turning of semi-finished products.
