Horizontal CNC Lathe Machine Heavy Metal Processing
ALMAZAKL CNC ALCK61100X2000 Flat bed CNC lathe is designed for heavy metal working.
Horizontal CNC Lathe Machine Features:
1.Horizontal CNC lathe machine adopts solid cast frame, which ensures the high rigidity of the machine;
2. The modern design of the CNC lathe machine bar fedeer rail provides high rigidity.
3. ALMAZAKL CNC components from world famous manufacturers.

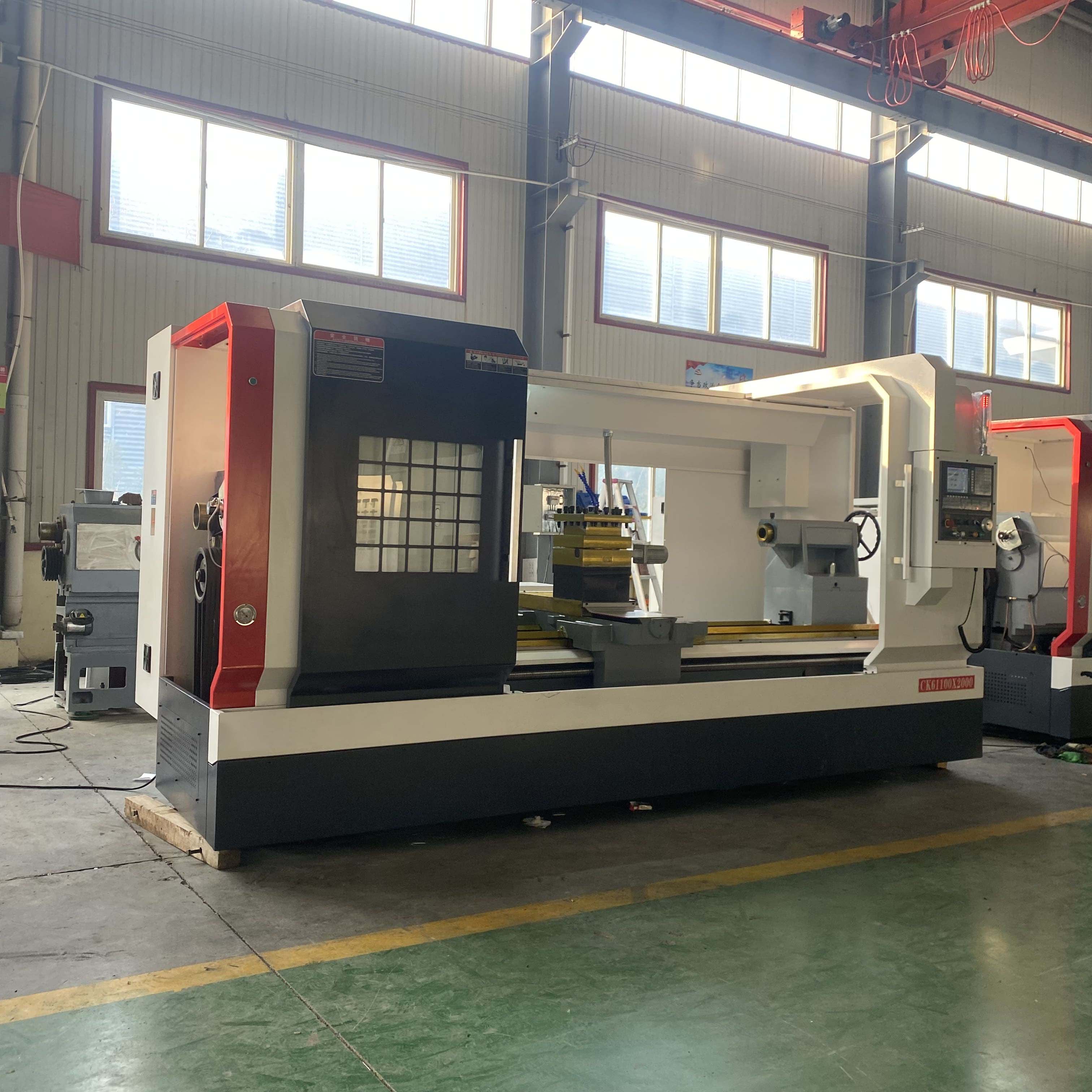

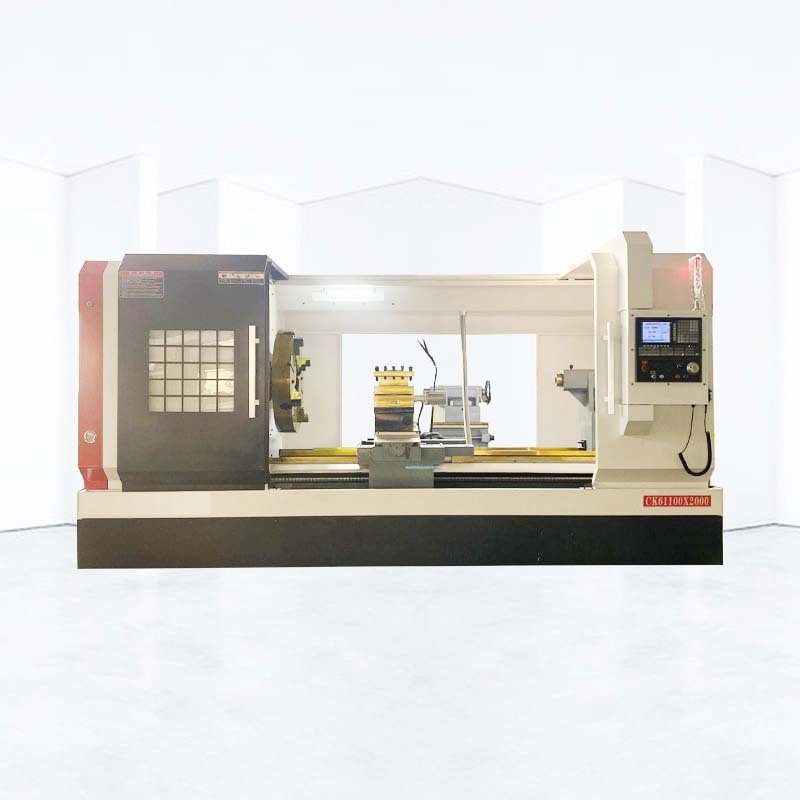

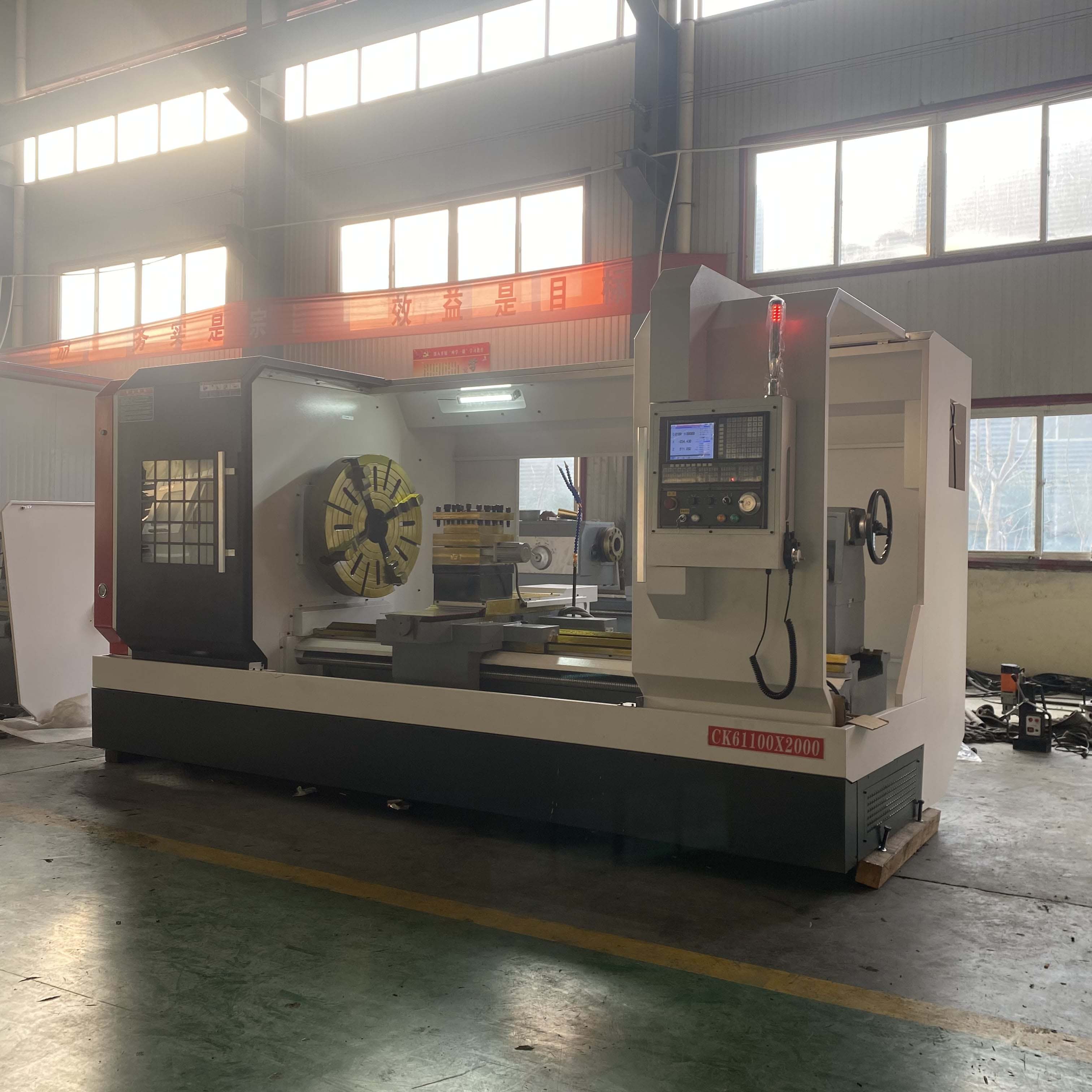

ALMAZAKL CNC ALCK61100X2000 CNC lathe machine
Equipment configuration and parameters
| Item | Content | Unit | ALCK61100-2000 |
| Processing range | Maximum turning diameter of bed | mm | Φ1000 |
| Maximum turning diameter of slide | mm | Φ630 | |
| Maximum turning length | mm | 2000 | |
| Maximum machining diameter | mm | Φ1000 | |
| Maximum bar diameter | mm | Φ500 | |
| Feed | X/Z axis travel | mm | 500/2000 |
| Motor | Main motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Machine Net Weight | kg | 5500 | |
| Machine Size（L×W×H） | mm | 4400/1900/2000 |
Flat bed CNC lathe Machine Advantages
1. CNC lathe machine reinforced type, suitable for heavy-duty processing
2. Integral bed, high rigidity
3.Flat bed CNC lathe bed is made of high quality Chinese cast iron
4.Automatic CNC lathe machine rails are ultrasonically hardened
5. ALMAZAKL CNC bed has natural aging, good shock absorption and high rigidity
6.Horizontal CNC lathe machine spindle adopts high-precision bearings
7. High-precision ball screw with preload can minimize backlash.
CNC Lathe Application:
ALMAZAKL CNC CK61100X2000 CNC lathe is ideal for tool shops and is designed for manufacturing complex parts for heavy industrial applications using various metals and alloys. It has earned a solid reputation for quality and reliability, as well as versatility.
