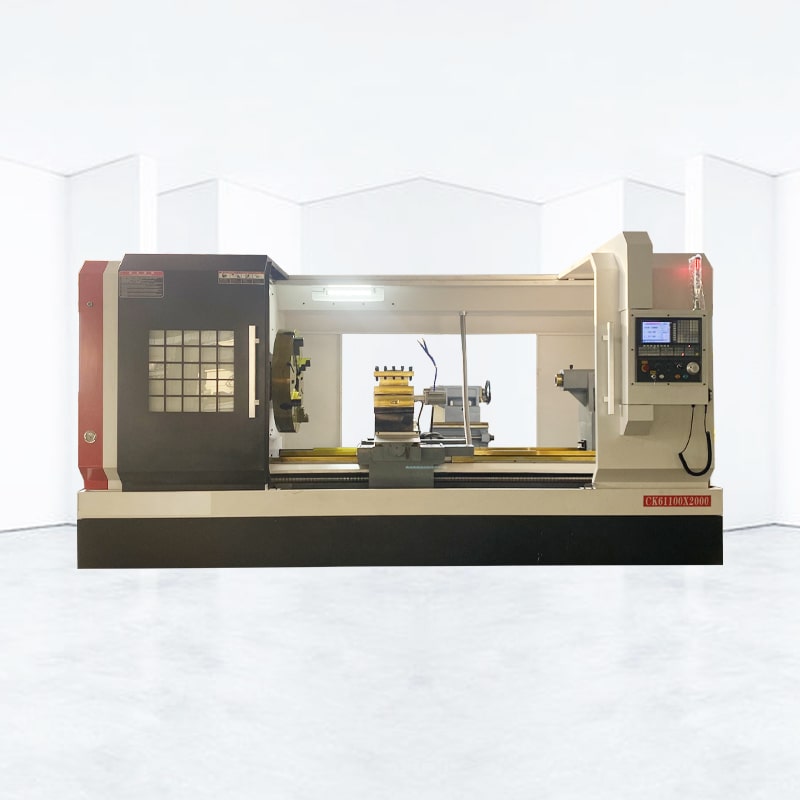

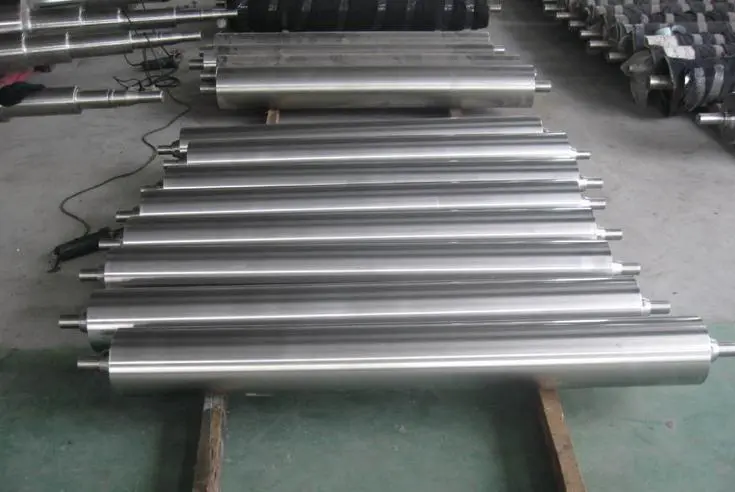

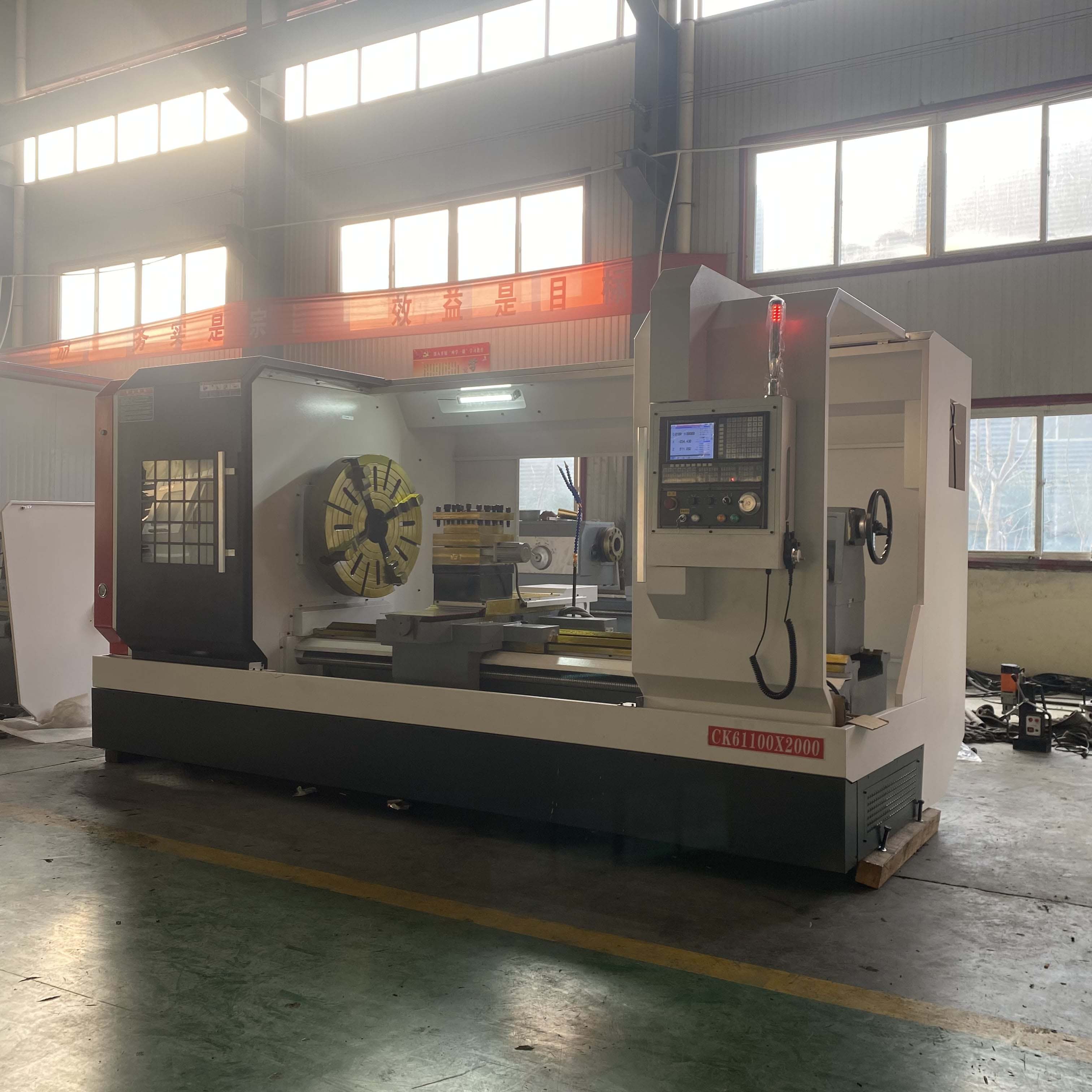

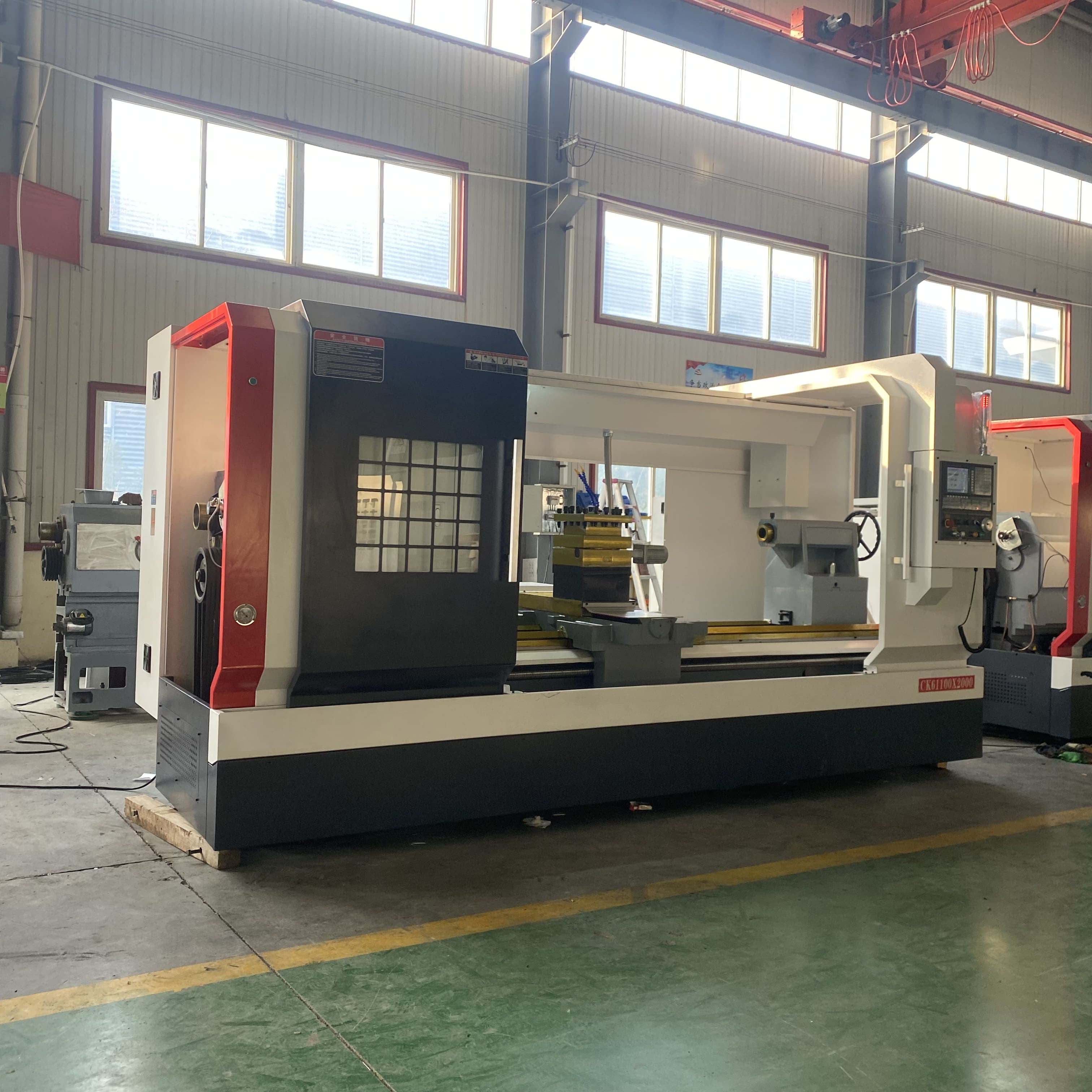

ALMAZAKL CNC horizontal CNC lathe machine is an economical and practical CNC lathe with optimized structure, reliable performance, high quality, simple programming and convenient operation. It is suitable for turning complex shafts, sleeves and discs such as internal and external turning. Cylinders, cones, arc surfaces and various threads, even drilling, boring and reaming.
1.ALMAZAKL CNC CNC lathe machine high rigidity casting bed
2.CNC lathe high precision spindle bearing
3.ALMAZAKL CNC automatic CNC lathe machine bed guide rail industrial hardening
Item | Content | Unit | ALCK61100-2000 |
Processing range | Maximum turning diameter of bed | mm | Φ1000 |
Maximum turning diameter of slide | mm | Φ630 | |
Maximum turning length | mm | 2000 | |
Maximum machining diameter | mm | Φ1000 | |
Maximum bar diameter | mm | Φ500 | |
Feed | X/Z axis travel | mm | 500/2000 |
X/Z axis screw diameter × pitch | mm | φ3208/φ5010 | |
X/Z direction moving speed | m/min | 4/6 | |
Motor | Main motor power | Kw | 11 |
Spindle motor torque | NM | 48 | |
X/Z motor power | Kw | 1.5/2.3 | |
X/Z motor torque | NM | 10/15 | |
Cooling pump motor power | W | 125 | |
Machine Net Weight | kg | 5500 | |
Machine Size(L×W×H) | mm | 4400/1900/2000 |
1.CNC lathe heavy duty CNC lathe is universal standard automatic machining equipment for metal processing ,capable of semi-finish machining and finish machining of machinery components and parts ,with the main characters such as reliable structure and easy operating .
2.Flat bed CNC lathe is mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surface ,and turning internal and external pipe threads including metric,inch ,module,DP threads etc.
ALMAZAKL CNC The Flat bed CNC lathe is particularly suitable for turning small and medium batches of diverse work pieces. It has the characteristics of high versatility, high efficiency, low inferiority and good comfort. Therefore, it is widely used in various industries such as the automotive industry. Petroleum industry, military industry, etc.
