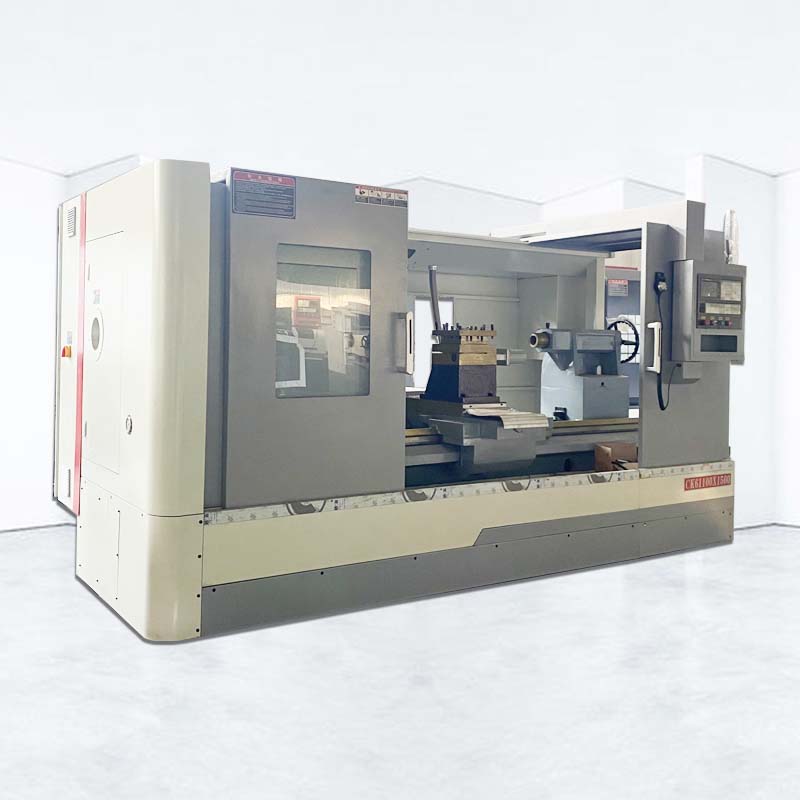

Flat Bed Mechanical CNC Lathe
ALMAZAKL CNC CNC Lathe is a full-function CNC ordinary precision lathe designed and manufactured with advanced technology. The design and controls have been developed with ergonomic requirements in mind: ease of operation, ease of maintenance.
CNC Lathe Turning Machining Features:
1. ALMAZAKL CNC horizontal flat bed structure; the main components are cast with high-strength resin sand, fully aging treatment, and the guide rails are treated by high-frequency quenching to ensure the long-term stability of the machine tool.
2. The CNC lathe spindle adopts frequency conversion speed regulation, and the spindle system adopts the spindle unit structure, which has the remarkable characteristics of high speed, high precision, strong rigidity, small thermal deformation, stable operation and low noise.
3.CNC lathe high stability hard rail bed
4.The spindle of CNC lathe machine has three-speed speed change, and the speed is adjusted by step less frequency conversion in the gear.
5.mini CNC lathe high strength base
6.Widen the pallet
7. Automatic centralized lubrication

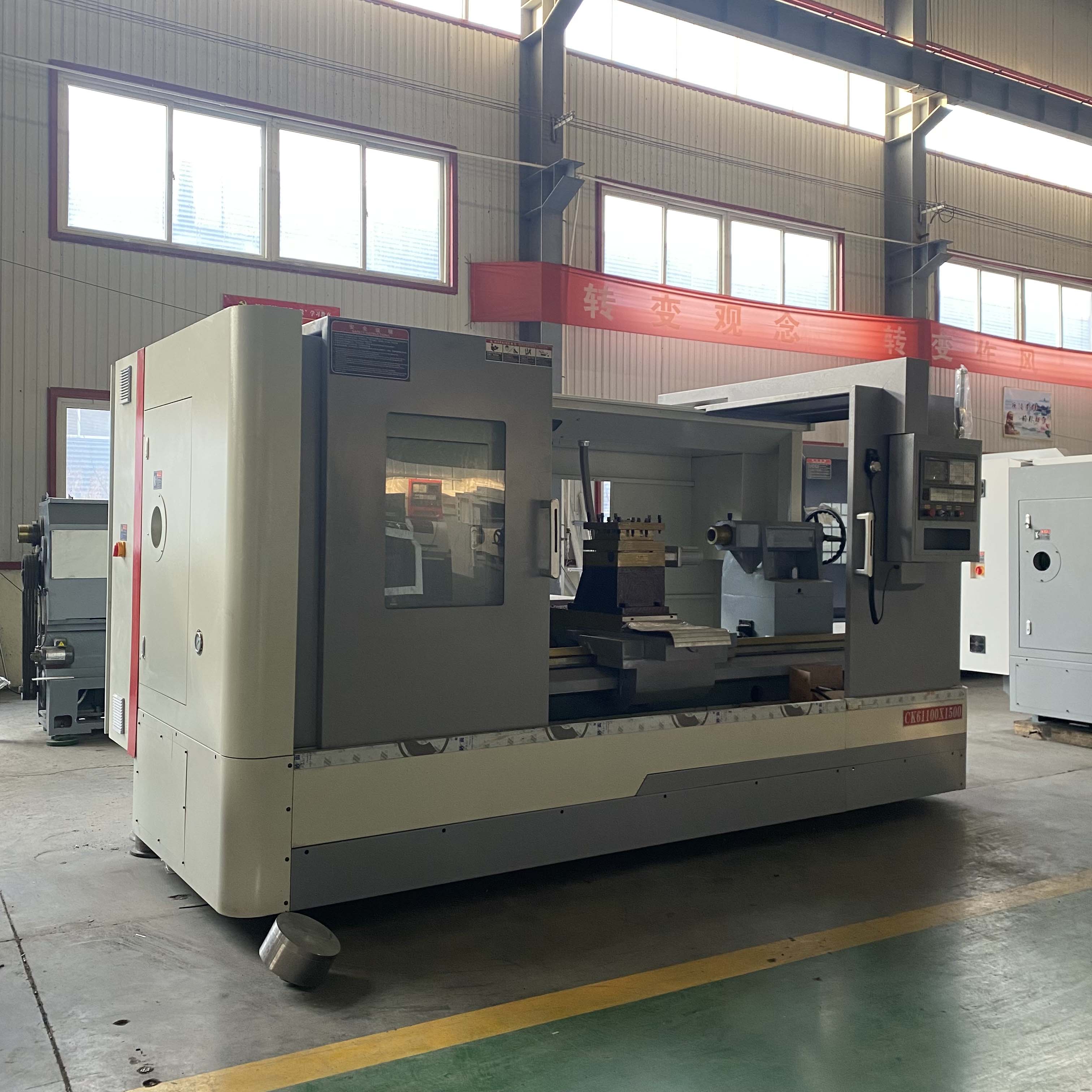

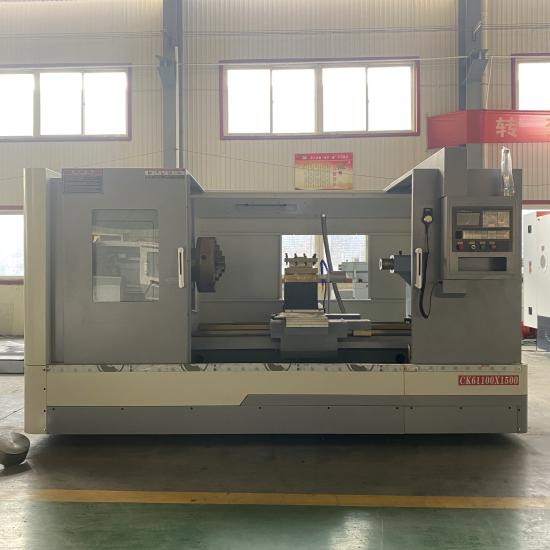

ALCK61100X1500 CNC Lathe Machine
Equipment configuration and parameters
| Item | Content | Unit | ALCK61100-1500 |
| Processing range | Maximum turning diameter of bed | mm | Φ1000 |
| Maximum turning diameter of slide | mm | Φ630 | |
| Maximum turning length | mm | 1500 | |
| Maximum machining diameter | mm | Φ1000 | |
| Maximum bar diameter | mm | Φ500 | |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Machine Net Weight | kg | 4700 | |
| Machine Size（L×W×H） | mm | 3900/1900/2000 |
Horizontal CNC Lathe Application:
1. The advantage of Flat bed CNC lathe is higher spindle torque by using 2 speed gearbox, higher rigidity than 6150 and 6180 models. Its main use is roughing and semi-finishing turning of large parts.
2. ALMAZAKL CNC CNC lathe machine can process short work pieces and long work pieces up to 6000 mm.
3. Axial movement occurs on high-precision sliding guides, which have high rigidity and allow large margin turning. Compared with the complexity of manual machine operation, the complexity of conversion is reduced by 80-90%, and it ensures the accuracy of any complex parts personalise.
CNC Lathe Application:

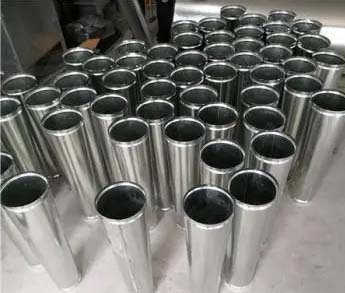

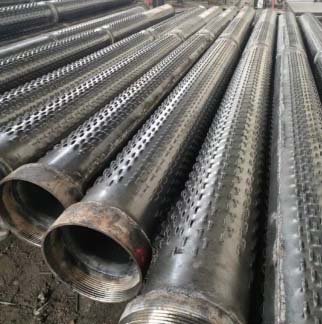

Horizontal CNC lathe machine is a standard automatic metal processing equipment widely used at present, suitable for processing metal parts with complex shapes such as large shafts and disks; when used in the processing of large batches of parts, it will greatly improve the processing efficiency and reduce the labor of workers strength.
