ALMAZAKL CNC CNC lathe 3 axis has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk work piece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
1. ALMAZAKL CNC horizontal flat bed structure; the main components are cast with high-strength resin sand, fully aging treatment, and the guide rails are treated by high-frequency quenching to ensure the long-term stability of the machine tool.

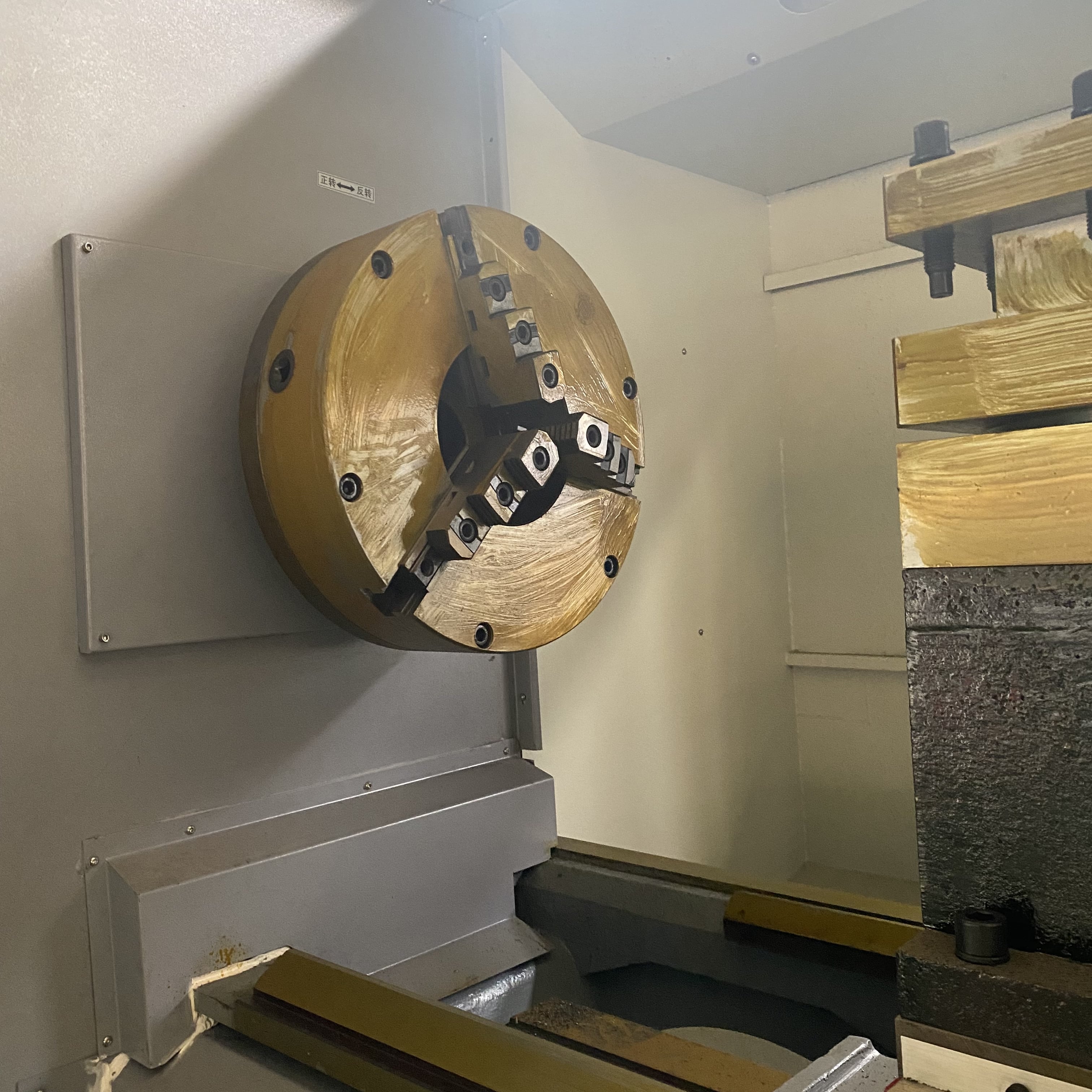

2. The CNC lathe spindle adopts frequency conversion speed regulation, and the spindle system adopts the spindle unit structure, which has the remarkable characteristics of high speed, high precision, strong rigidity, small thermal deformation, stable operation and low noise.
3.CNC lathe high stability hard rail bed
4.The spindle of CNC lathe machine has three-speed speed change, and the speed is adjusted by step less frequency conversion in the gear.
5.mini CNC lathe high strength base
6.Widen the pallet
7. Automatic centralized lubrication

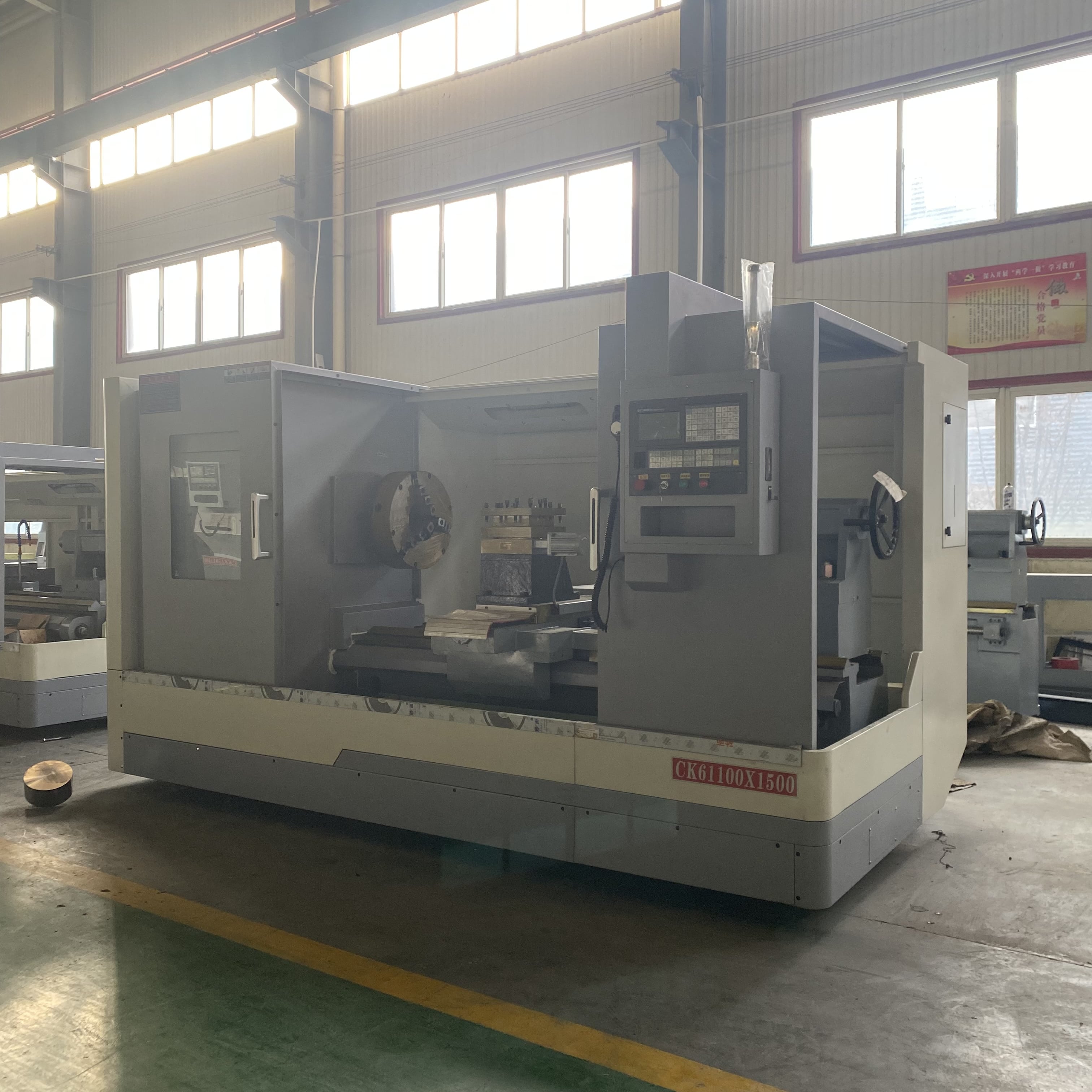

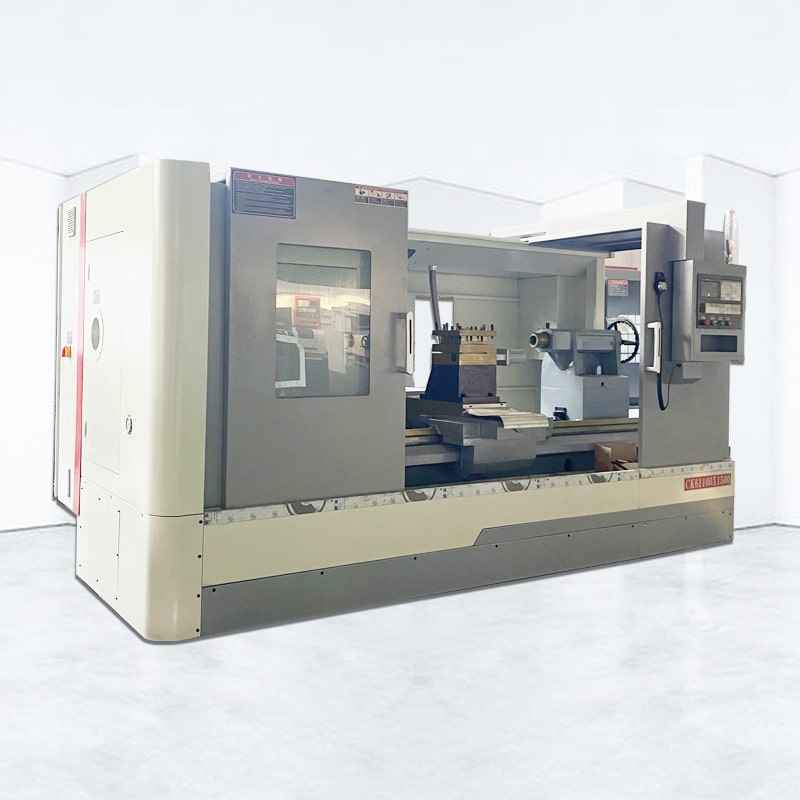

ALCK61100X1500 CNC Lathe Machine
Item | Content | Unit | ALCK61100-1500 |
Processing range | Maximum turning diameter of bed | mm | Φ1000 |
Maximum turning diameter of slide | mm | Φ630 | |
Maximum turning length | mm | 1500 | |
Maximum machining diameter | mm | Φ1000 | |
Maximum bar diameter | mm | Φ500 | |
Spindle motor torque | NM | 48 | |
X/Z motor power | Kw | 1.5/2.3 | |
X/Z motor torque | NM | 10/15 | |
Cooling pump motor power | W | 125 | |
Machine Net Weight | kg | 4700 | |
Machine Size(L×W×H) | mm | 3900/1900/2000 |
Automatic CNC lathe machine guide rail by the super audio quenching and fine grinding, high precision, main shaft adopts frequency conversion step less speed regulation control, can automatically complete the parts of the inner and outer cylinder, end face, arbitrary conical surface, circular arc surface , male inch thread cutting process continuous processing, etc.
Flat bed CNC lathe is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .horizontal CNC lathe machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
