Horizontal Large Spindle Hole Large Chuck CNC Lathe
ALMAZAKL CNC horizontal CNC lathe machine is suitable for processing large and medium-sized steel and non-ferrous metal parts, which can be cylindrical turning, internal hole, face cutting, drilling, boring and nesting.
ALMAZAKL CNC CNC Lathe Machine Features:
Flat bed CNC lathe adopts integral casting bed structure, internal steel plate layout is reasonable, high rigidity, automatic CNC lathe machine equipment high-frequency quenching, guide rail grinding process, CNC lathe has high stability, high precision, high rigidity, and strong cutting force.
Equipment configuration and parameters
| Project | Content | Unit | ALCK6180x3000 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ450 | |
| Maximum processing length | mm | 3000 | |
| Maximum machining diameter | mm | Φ800 | |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | battery capacity | KVA | 15 |
| Machine weight | kg | 6200 | |
| Machine size: length×width×height | mm | 5400/1900/2000 |

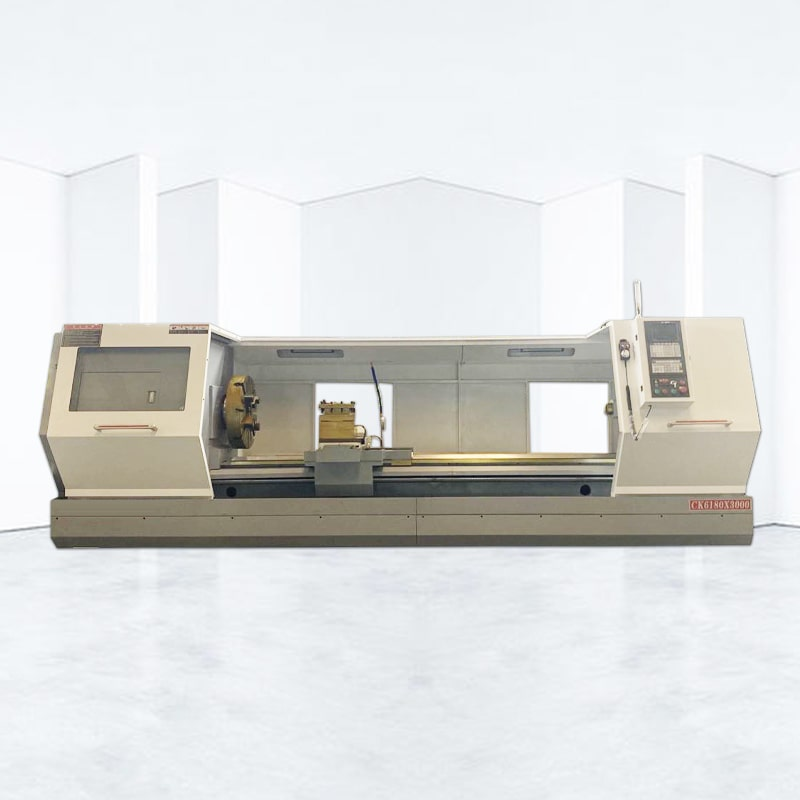

CNC lathe machine ALCK6180
Flat Bed CNC Lathe Processing Advantages
1.The CNC lathe has high power, strong rigidity, and wide range of spindle speed adjustment, which is suitable for strong or high-speed cutting.
2. Spindle braking and shifting are controlled by hydraulic pressure, the braking is sensitive and reliable, the button can be used to change the speed without stopping, the pressure oil in the bedside cabinet is forced to be lubricated, and there are many kinds of spindle speed ranges for users choose.
CNC Lathe Application:

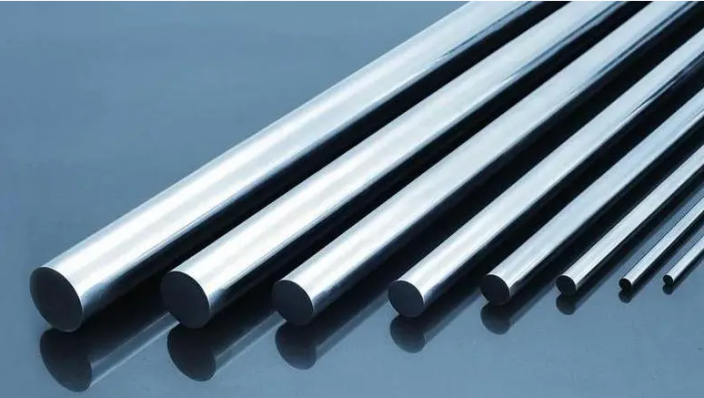

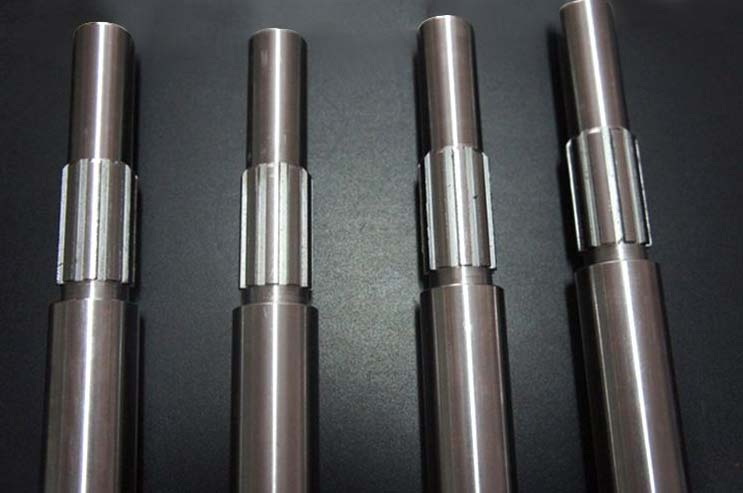

ALMAZAKL CNC CNC lathe machine is mainly suitable for cutting rotary parts such as inner and outer cylinders and cones of the work piece, and can process various commonly used metric, inch, modulus and pitch threads, as well as broaching oil grooves and key ways.
