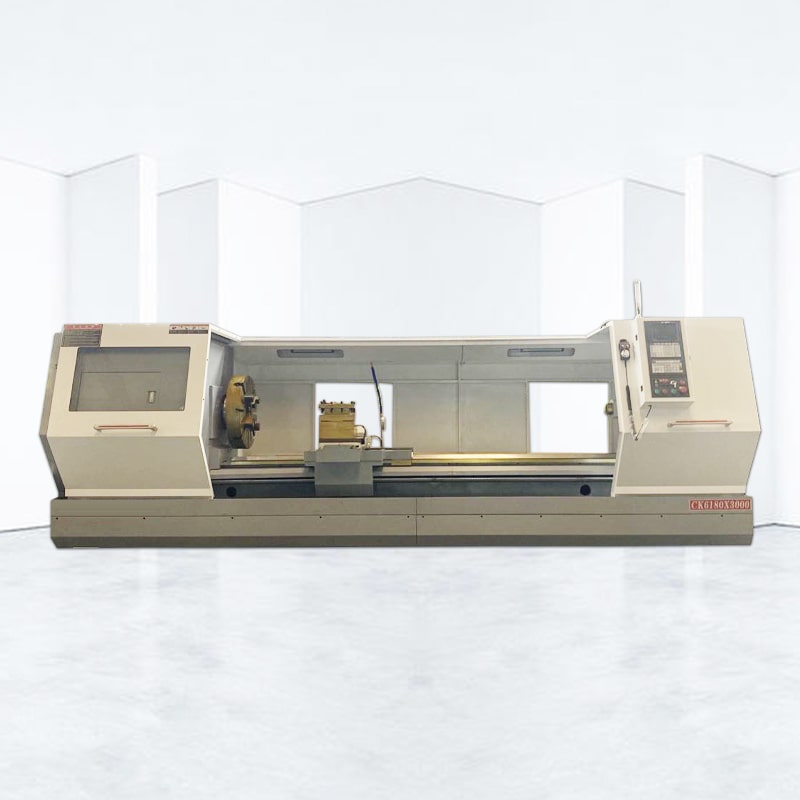

Heavy Duty Turning Center Power Tool Turret CNC Lathe
The versatility of ALMAZAKL CNC flatbed CNC lathes allows us to create custom lathe solutions to meet any production need, many parts can be completed on one machine.
CNC Lathe Machine Features:
1.The ALMAZAKL CNC CNC lathe machine has a 15″ large monitor for enhanced visibility. In particular, we can create more convenient use conditions by improving the operating environment such as program setup and simulation through a large screen.
2.The 3-point support bed can only be achieved with sufficient rigidity of the bed, and it is an indicator of a high rigidity bed. During the initial installation, it is easy to install by leveling only parts of the bed, and even when maintenance is required, the maintenance capability has been greatly improved with easy leveling compared to the previous version.
Equipment configuration and parameters
| Project | Content | Unit | ALCK6180x3000 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ450 | |
| Maximum processing length | mm | 3000 | |
| Maximum machining diameter | mm | Φ800 | |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | battery capacity | KVA | 15 |
| Machine weight | kg | 6200 | |
| Machine size: length×width×height | mm | 6200 |
Flat Bed CNC Lathe Processing Advantages
The horizontal CNC lathe machine is designed for precision and maximum CNC performance with features only found on high end CNC lathes. A variety of tools are available to further increase the productivity of the machine. Scheduling tools, quick-change Tool holder and automatic indexing turrets maximize throughput in most situations. Heavy-duty cast iron machines are ideal.
CNC Lathe Application:

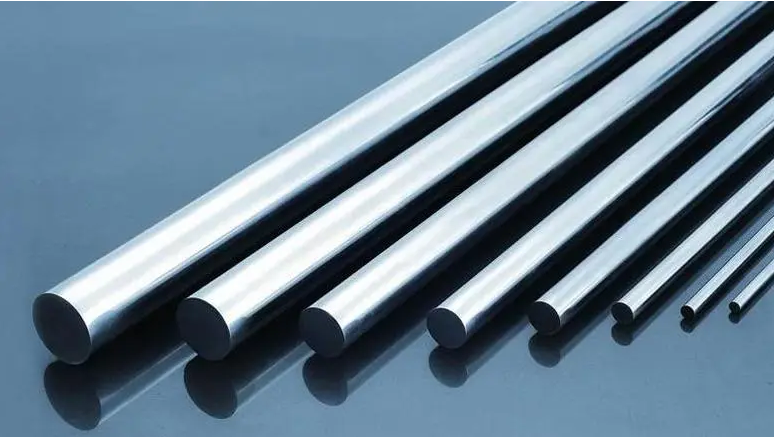

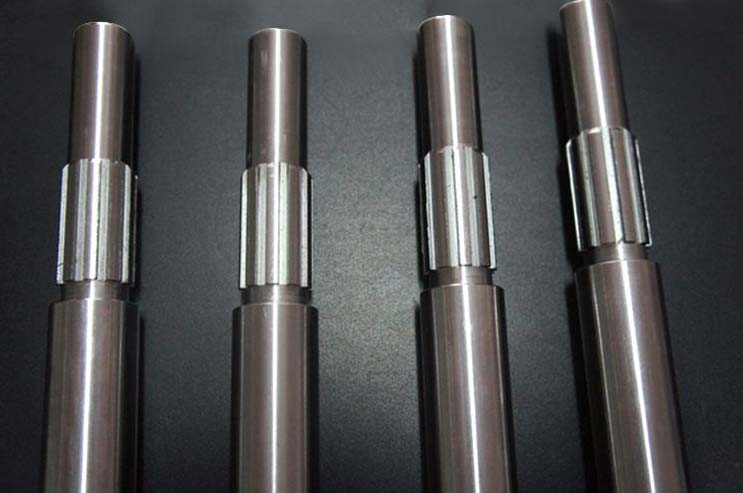

The highly versatile automatic CNC lathe machine is designed for a wide range of turning applications: long shafts, bar stock, castings and large diameter panel machining after clearance removal.
