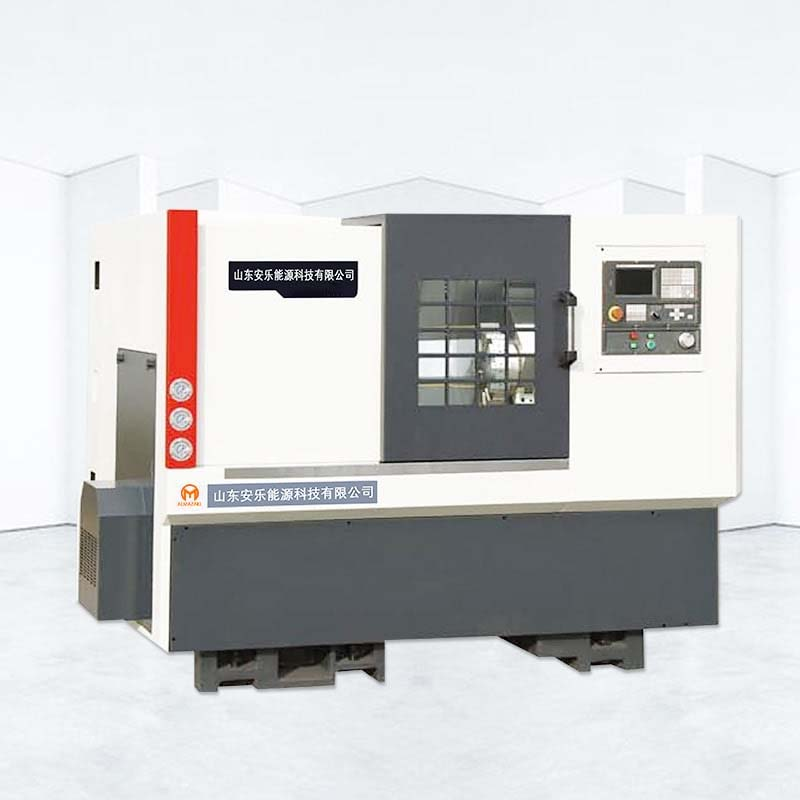

Linear Rail Inclined Bed Turning Center With Y axis And Milling Center
Slant bed CNC lathe to bring performance and productivity. The Y axis and C axis provide more flexibility and multiple operations when machining complex work piece. is ideal for various industrial applications.

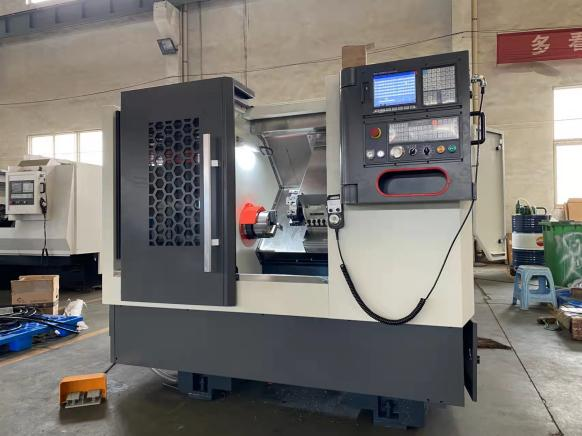

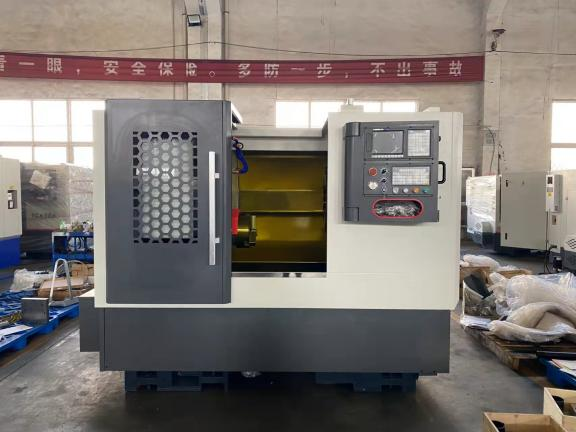

Almazakl CNC CNC Lathe Machine ——In The Laster Inspection Of The Inclined Bed
| Item | Unit | ALTCK56A/500 |
| Maximum turning diameter of bed | mm | φ560 |
| X-direction rail span | mm | 254 |
| Z-direction rail span | 364 | |
| Maximum turning diameter of slide | mm | φ360 |
| Center Head Distance | mm | 500 |
| Maximum turning length | mm | 500 |
| Spindle hole diameter | mm | φ65 |
| Bar diameter | mm | φ50 |
| With hollow chuck pull rod through hole | mm | φ50 |
| Spindle speed limit | rpm | 0-3500（automatic） |
| X direction stroke | mm | 200 |
| Z direction stroke | mm | 560 |
| Total Electric Power | KW | 18 |
| Machine Weight | Kg | 4000 |
| Machine Size（L×W×H） | mm | 2950×1860×1850 |
Almazakl CNC CNC Lathe Advantage
1.Horizontal CNC lathe machine good stability
2.Hydraulic turret provides fast turret index, non-stop and bi-directional and high accuracy performance.
3.The automatic CNC lathe machine features a one-piece base structure that increases machine stability and maximizes cutting stiffness.
CNC Lathe Machine Application Industry:
Horizontal CNC lathe machine is suitable for automobiles, motorcycles, electronics, aerospace, military, petroleum and other industries. The bed has a high rigidity of 45 degrees, and the high-torque spindle adopts Taiwan track line to ensure high rigidity of the machine tool. The spindle is close to the center of the manipulator, and the work piece loading and unloading is more convenient.
