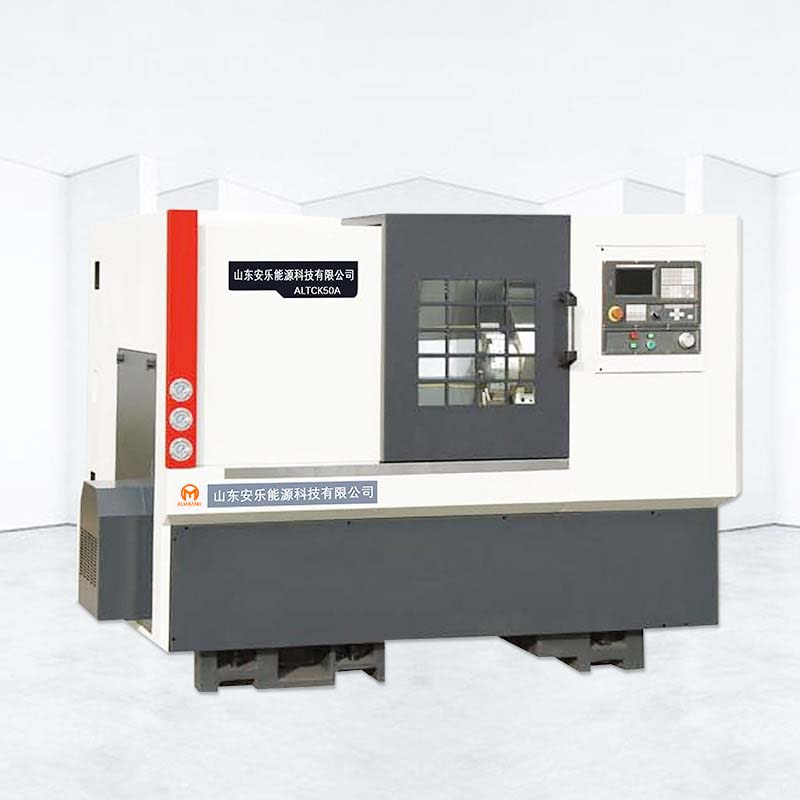

45 Degree Inclined Bed CNC Lathe Tail Stock
The slant bed CNC lathe is fully automated for speed and ease of work, greater precision and profitability in the production of all types of parts.

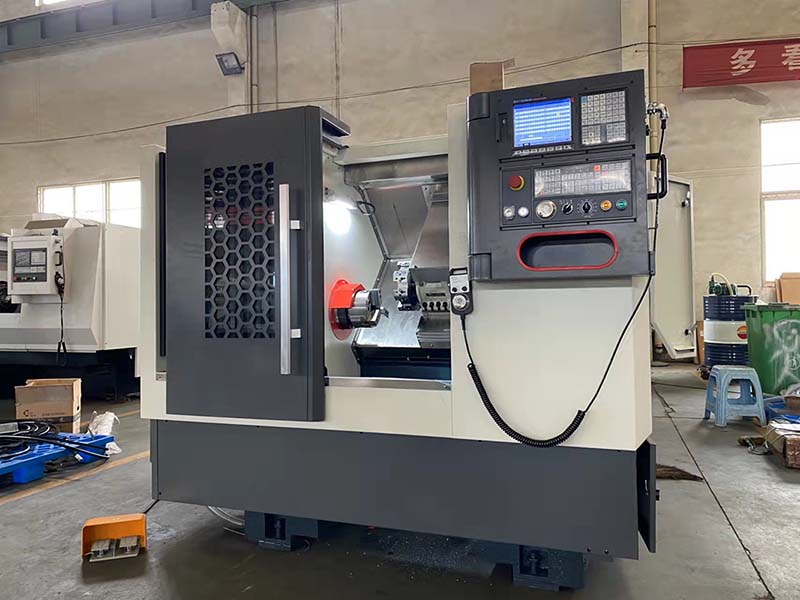

Almazakl CNC CNC Lathe Machine ——In The Laster Inspection Of The Inclined Bed
The Main Technical Parameters
| Item | Unit | ALTCK56A/500 |
| Maximum turning diameter of bed | mm | φ560 |
| X-direction rail span | mm | 254 |
| Z-direction rail span | mm | 364 |
| Maximum turning diameter of slide | mm | φ360 |
| Center Head Distance | mm | 500 |
| Maximum turning length | mm | 500 |
| Spindle hole diameter | mm | φ65 |
| Bar diameter | mm | φ50 |
| With hollow chuck pull rod through hole | mm | φ50 |
| Spindle speed limit | rpm | 0-3500（automatic） |
| X direction stroke | mm | 200 |
| Z direction stroke | mm | 560 |
| Total Electric Power | KW | 18 |
| Machine Weight | Kg | 4000 |
| Machine Weight | mm | 2950×1860×1850 |

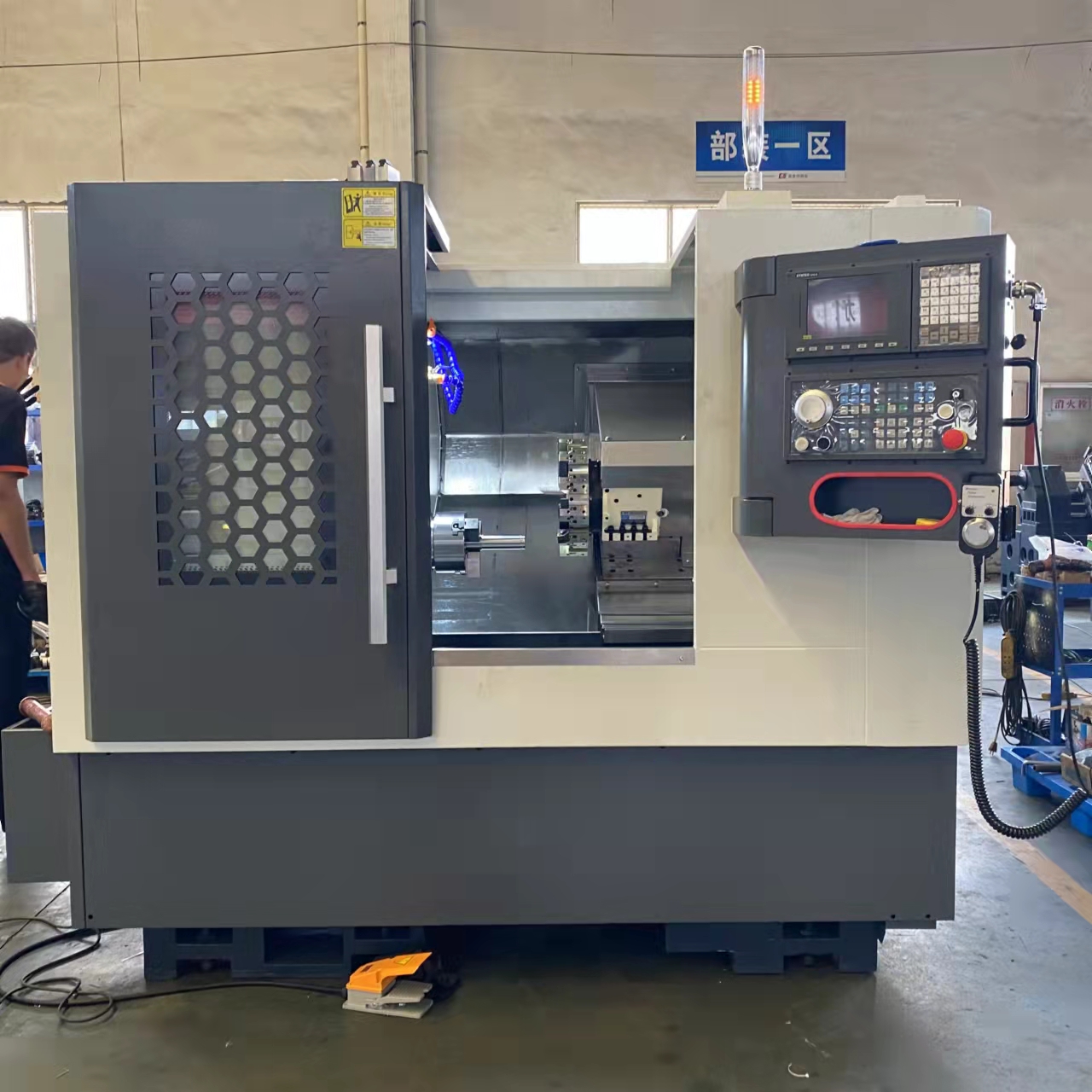

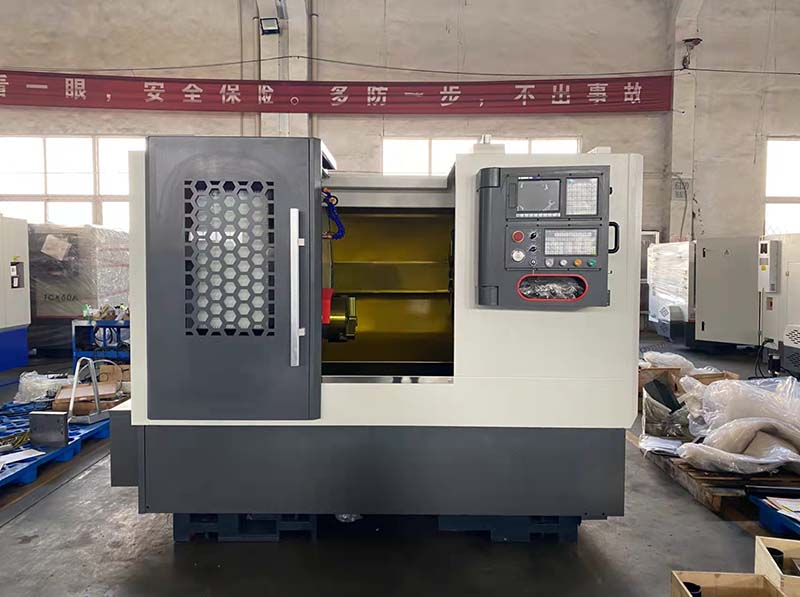

slant bed CNC lathe factory
Almazakl CNC Slant Bed CNC Lathe Machining Features:
1.CNC lathe single-spindle structure, high-precision bearings, provide high speed, prevent overheating and deformation. The 45-degree inclined bed structure with linear guides greatly improves the accuracy and stability.
2. The integrated motor and guide rail design of cnc lathe machine ensures the accuracy that may be affected by the installation.
3. The slant bed CNC lathe integral seal protects all electrical equipment from water, oil and metal chips.
4. The high-precision collet provides more protection for the work piece surface during processing, is durable, can be clamped repeatedly, and is also easy to disassemble.
Almazakl CNC CNC Lathe Advantage
1.Horizontal CNC lathe machine improves rigidity and long-term accuracy.
2.Automatic CNC lathe machine Automatic hydraulic tail stock, with hydraulic system, high precision, high efficiency and good stability. The structure is simple and rigorous, which greatly increases the durability and safety of production. It was specially designed for this machine.
3.CNC lathe turning one-piece sealing protection, the sealing design provides excellent waterproof performance, and only emits low noise when running. It is more durable and protects all electrical equipment from water, oil and all metals.
4. The integrated motor seat and guide rail design greatly improves the accuracy of the possible influence of installation. The streamlined structure of the chip conveyor is beautiful in appearance, high in efficiency and stable in conveying. Overload protection ensures stability and safety.
CNC Lathe Machine Application Industry:
Horizontal CNC lathe machine is plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, bearings and other industries.
