Línea automática mini CNC la barra con alimentador
Almazal CNC Flat Bed CNC lathe is mainly used for Turning the Internal and External Cylindrical Surface, conformal Surface and other rotating Surfaces, and Turning internal and External Pipe threads including metric, Inch, Module, DP thread etc.

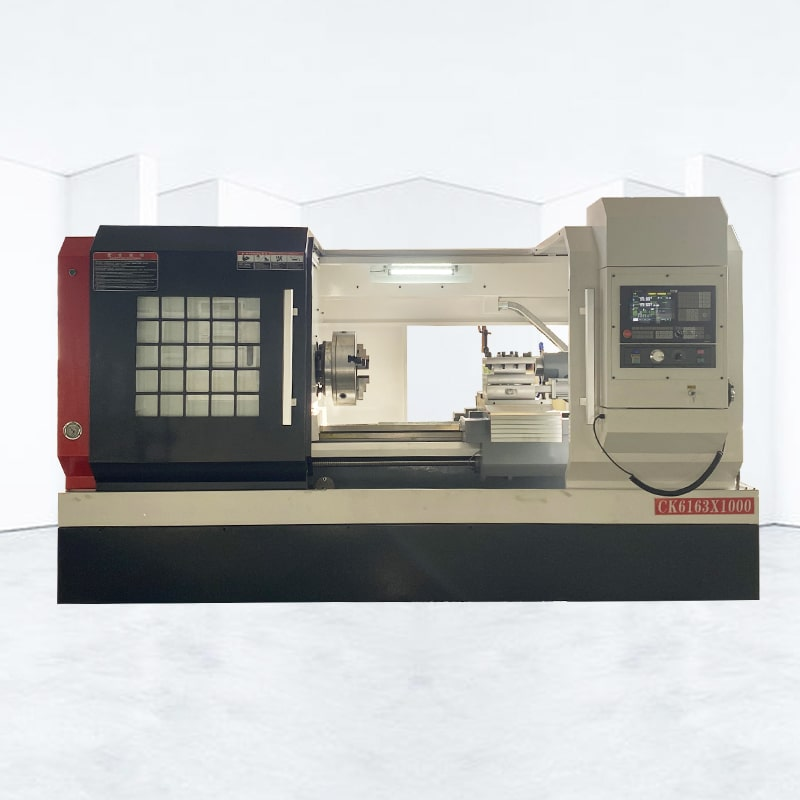

Almazal CNC alck6163x1000 Flat Bed CNC lathe Performs Part machining by rotating and Removing chips during Turning
Configuración y parámetros del equipo
| Proyecto | Contenido | Unit | ALCK6163*1000 |
| Rango de procesamiento | Diámetro máximo de giro del frijol | Mm | Φ630 |
| Maximum Turning Diameter on Skateboard | Mm | Ф400 | |
| Longitud máxima del proceso | Mm | 1000 | |
| Diámetro máximo de la máquina | Mm | Φ630 | |
| Viajar | X / z Axis maximum Travel | Mm | 330/1000 |
| X / z Axis minimum Displacement Unit | Mm | 0.001 | |
| Spindle | Spindle through Hole Diameter | Mm | Ф82 |
| Speed of Spindle Limit | RPM | 50-1500 | |
| Posición repetida de la herramienta | Mm | ≤0.004 | |
| Tailstock | Indicador de sueño de la pila de talón | Mm | Φ85 |
| Peso mundial | Kg | 3000 | |
| Demanda de electricidad (potencia / corriente) | KW / a | 15kW/20A |
Características de la última para metal
Almazal CNC lathe is Universal Standard Automatic Processing Equipment for Metal Processing, capable of Semi - Finished product machining and Punish machining of Machine elements and Parts, with the main Characters such as relevant Structure and easy operation.
Aplicación horizonal CNC lathe:
1. CNC lathe converters, which could fully fill Variable Speed Control & Constant Linear Speed Cutting functions; Área de frecuencia ultraónica de adiciones del cuerpo de la máquina;
2. CNC lathe Machine process feeding Motion by directly Connecting Shift Coupling & Ball screws. Con alta potencia, mucha rigidez;
Alta precisión & almacenamiento, alta calidad de precio y vida de ciclo largo, CNC automático lathe Machine is widely applied to instruments, meters, Light Industries, Electronics, Home Appliances, Medical Instruments, Aeronautics & Astronautics and etc. Industries, Es una decisión de medio pequeño & máquina compleja para el procesamiento de materiales variables (métodos no Ferrous especiales & Steel) como bueno como un equipo ideológico para la producción de automatización grande
Almazal CNC CNC lathe Application
Ck6160x1000 series CNC horizontal lathe has the characteristics of High Precision, High Power, High rigity, etc. It mainly Components and structure have been optimized Design, and it is the first choice for machining Shafts, discs, sleeves, Special shaped Surface and screw work pieces.
