CNC Lathe For Metal Function:
The CNC turning and Milling compound machine adopts an integral bed with a 30° bevel, and the material of the bed is HT300. It is casted by resin sand technology, and the internal rib shape layout is reasonable. The guide rail adopts imported linear roller guide rail, which has improved feeding accuracy, small frictional resistance, good rigidity, high resistance to vibration and deformation, enabling users to obtain higher processing accuracy and increase the speed of rapid movement, and obtain higher production efficiency.
Application of CNC Turning And Milling Machine:
ALMAZAKL CNC CNC mill-turn machines are multi-function machines that can perform both turning and milling operations in one setup. They are widely used in the manufacturing industry to produce complex parts with high precision and accuracy.
1. Aerospace: CNC turn-mill machine tools are used in the aerospace industry to manufacture key components such as engine components, landing gear and structural components.
2. Medical: CNC turning and milling machines are used in the medical industry to produce high-precision implants, surgical instruments and other medical equipment.
STANDARD CONFIGURATION
1.CNC system:GSKTB3, servo motor and drive.
2.Tool： Gang Type Tool.
3.Lighten system.
4.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.Turret :
(1).8 station electric tool post.
(2).12 station electric tool post.
5.Feeder:Automatic bar feeder.

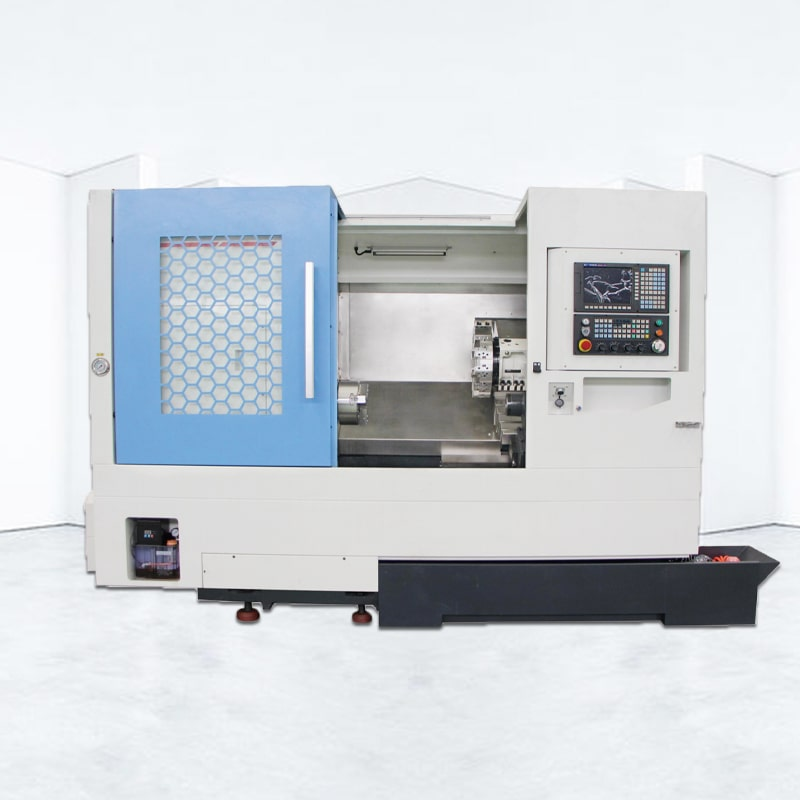

CNC Turning And Milling Compound Machine ALTCK52D
Equipment Configuration And Parameters
| Item | Unit | ALTCK52D |
| The maximum upper rotation diameter of the bed surface | mm | Φ520 |
| The maximum processing diameter on the tool post | mm | Φ280 |
| Maximum processing length | mm | 600/830 |
| Center distance between two tops | mm | 4200 |
| Spindle motor power | mm | Φ66 |
| Tailstock maximum stroke | rpm | 480 |
| Length*Width*Height (mm) | mm | 3000*1850*1710 |
| Weight (approx. weight) | kW | 3800/4100kg |
In Addition, Our ALTCK52D CNC Turning And Milling Machine Is Also Equipped With:
1. Automatic measurement and detection system: optional automatic measurement and detection system to realize automatic measurement and detection of workpieces and improve processing accuracy and consistency
2. Processing data management system: Optional processing data management system is used to record, analyze and manage processing parameters, so as to facilitate the monitoring and optimization of the production process.
3. Safety protection device: According to safety requirements, appropriate safety protection devices can be selected, such as safety doors, light curtains, etc., to ensure the safety of operators
