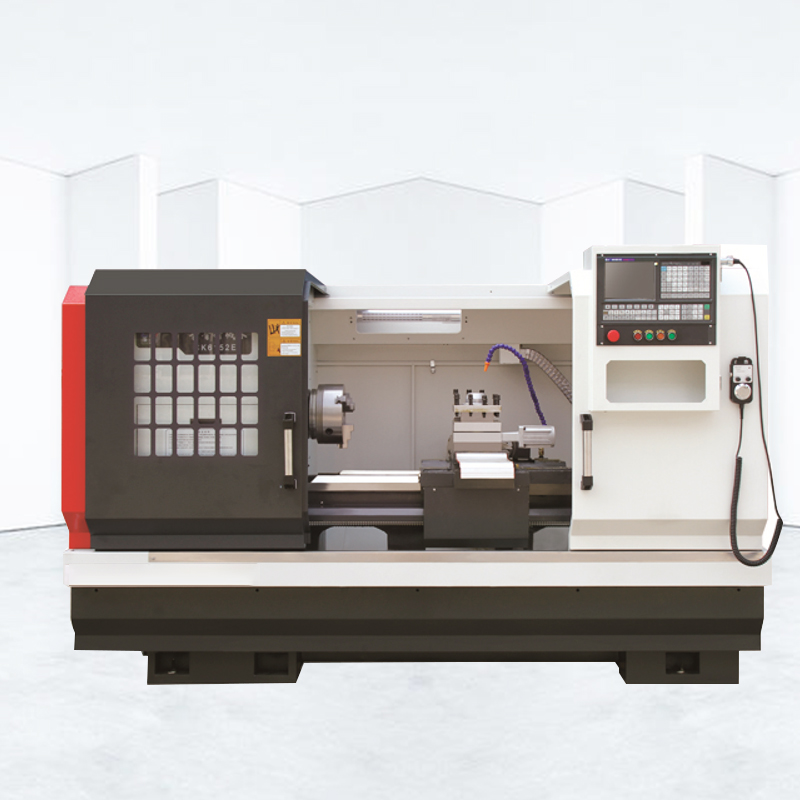

Integral Bed Hard Rail CNC Turning Lathe Horizontal Flat Bed Lathe
Horizontal CNC lathe machine is mainly used for turning the inner and outer surfaces of various threads, arcs, cones and rotating bodies. It can guarantee the machining accuracy and long-term stability.
Hard guide way CNC lathe-hard lead CNC lathe External protection Test machine
CNC Lathe Processing Features
CNC lathe automatically process the inside and outside cylinder surface, cone surface, circle arc surface,end face. It can also turn the single and multiple threads in metric , inch and other standard.
1.CNC lathe machine high rigidity pedestal and wider lay board are suitable for heavy cutting
2.Horizontal CNC lathe machine four station electric turret
3.Automatic CNC lathe machine frequency conversion step less speed regulation
CNC Automatic Lathe Advantage
CNC lathe machine tool is a high-speed, high-precision, high-reliability slant bed CNC machine. The spindle is a unit structure, the servo main motor can achieve higher speed, and the work piece clamping uses a hydraulic chuck, which makes the clamping more. For convenience, the precision is higher, the operation is more labor-saving; the spindle bearing structure adopts 5 angular contact bearings of the first 3 and the rear 2, which are both high speed and high. The machine adopts a 30-degree sliding saddle and a linear guide rail. It has strong rigidity, fast feed and easy chip removal. The X and Z-direction screw rods are arranged in the middle of the pallet, and the force is even, the movement is stable and the speed is fast. 8-station hydraulic turret, fast and stable tool change, high precision, close to the selection of the knife, large capacity of the knife; hydraulic tail stock, easy to operate; fully enclosed protection, no oil leakage, environmentally friendly and beautiful.
Flat Bed CNC Lathe Applications
Automatic CNC lathe machine for automobile, motorcycle, electronics, aerospace, military and Other industries perform efficient, high-volume, high-precision machining of body parts.
STANDARD CONFIGURATION
1.Turret :station electric tool post.
2.CNC system:GSKTB3, servo motor and drive.
3.Chuck: Pneumatic collets.
4.Tool： Gang Type Tool.
5.Cooling system.
6.Lighten system.
7.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.Turret :
(1).6station electric tool post.
(2)8station electric tool post.
5.Feeder:Automatic bar feeder.
Equipment configuration and parameters
| Item | Unit | ALCK5085-1000 |
| Max swing over bed | mm | φ500 |
| X-direction rail span | mm | 210 |
| Z-direction rail span | mm | 400 |
| Maximum swing over slide | mm | Φ250 |
| Center distance | mm | 1000 |
| Maximum turning length | mm | 850 |
| Spindle hole diameter | mm | Φ82 |
| Bar diameter | mm | φ80 |
| With hollow chuck pull rod through hole | mm | Φ65 |
| Spindle speed limit | rpm | 1800 |
| Diameter of tailstock sleeve | mm | φ75 |
| Tailstock sleeve stroke | mm | 150 |
| Electric tool post knife number | Set | 4 |
| Knife square size | mm | □25×25(four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Minimum setting unit | mm | 0.001 |
| main motor power | KW | 7.5 |
| Total power | KW | 12.5 |
