ALMAZAKL CNC company has been committed to CNC lathe machining center for more than 30 years. The linear mode of the CNC lathe is suitable for small but high-tech requirements, the part size can be easily compensated, and the accuracy of the part is guaranteed.
1.ALMAZAKL CNC CNC lathe tool post is located on precision contrite gears with a high repeated positioning accuracy.
2.CNC lathe machine Both chuck and tail stock are supplied with hydraulic or manual type.
3.CNC lathe machine surface of the guide is supersonic frequency hardened and precision ground with a long Serve life.
4.The spindle system is high in the rigidity and accuracy.
5.An inverter is used to realize variable speed.
1. Large processing capacity: The maximum processing diameter of CK6180 large CNC lathe is 800mm, and the maximum processing length is 1500mm. It can process workpieces with large diameter and long length, and has high processing capacity.
6.2. High-precision machining: The CNC system can control the machining accuracy of the lathe. The CK6180 large-scale CNC lathe uses high-precision ball screws and servo motors, so that the machining accuracy can reach a very high level, which is suitable for high-precision machining requirements.

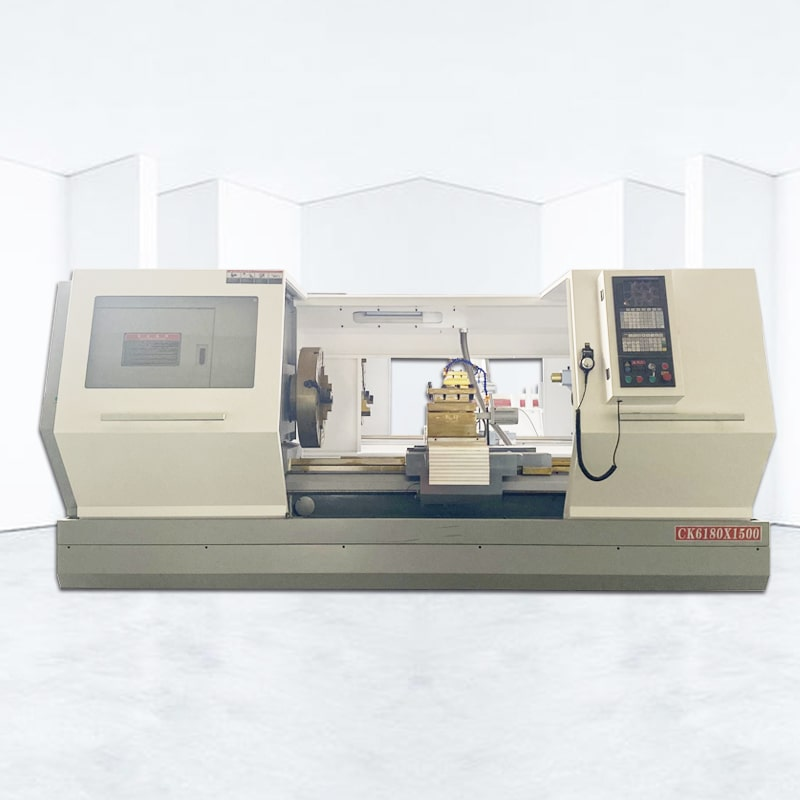

ALMAZAKL CNC ALCK6180X1500 CNC Lathe Machine
CNC lathe machine bar fedeer is used for canned cycle control of cross turning, conventional turning, taper turning and threading. The CNC system greatly simplifies the programming of the machine and reduces machining time.
Project | Content | Unit | ALCK6180x1500 |
Processing range | Maximum turning diameter of bed | mm | Φ800 |
Maximum turning diameter on skateboard | mm | Φ440 | |
Maximum processing length | mm | 1500 | |
Maximum machining diameter | mm | Φ800 | |
Maximum bar diameter | mm | Φ440 | |
Spindle hole diameter | mm | Φ105 | |
X/Z axis screw diameter × pitch | mm | φ3208/φ5010 | |
X/Z fast moving speed | m/min | 4/6 | |
Number of stations | 4 | ||
Tool specifications: turning/boring | mm | 32/40 | |
Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
Motor | Spindle motor power | Kw | 11 |
Spindle motor torque | NM | 48 | |
Machine weight | kg | 4500 | |
Machine size: length×width×height | mm | 3990/1900/2000 |
