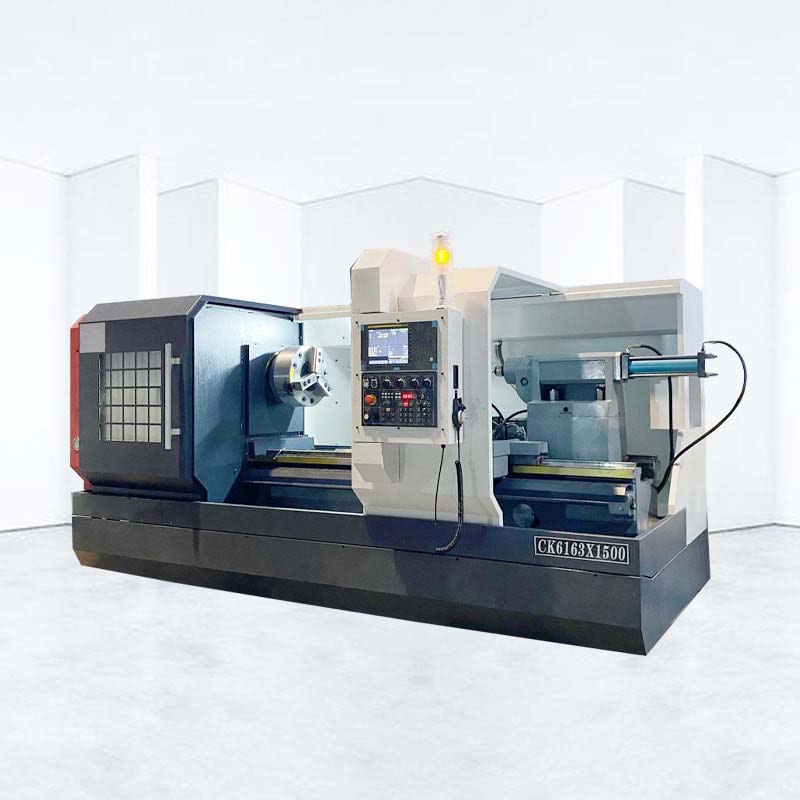

Large-bore Horizontal Heavy-duty CNC Lathe
ALMAZAKL CNC Flat bed CNC lathe realizes wheel surface profile measurement and data acquisition and program optimization. Automatic precision repair processing according to the wheel surface curve. Self-developed curve optimization software. Easy to install and operate.
Characteristics Of CNC Lathe Machine
1. ALMAZAKLCNC CNC Lathe 1500mm turning length horizontal CNC lathe The general layout and key structure of the machine tool are theoretically analyzed and calculated. The machine tool has high rigidity, small thermal deformation, low spindle temperature, small vibration, large inherited cutting torque, and is suitable for strong cutting. Features: The design concept of the machine tool has reached the international advanced level.
2. The key purchased parts of machine tools such as CNC lathe machine numerical control system and spindle bearing are all selected from internationally renowned manufacturers, and the machine tool has high reliability.
3. The advanced structural design and perfect technological measures of CNC lathe 3 axis ensure that the machine tool has high machining precision and long-term stability of precision, and the consistency is good.
4 horizontal CNC lathe machine uses advanced equipment to process key parts such as bed, bed, saddle and tail, which is an important measure to ensure the technical performance of machine tools.
5. The metal lathe machine adopts electromechanical integration design, the overall layout is compact and reasonable, the operation is convenient and pleasant, and the maintenance is convenient.
6.lathe machine mechanical adopts modular design, and the machine tool can provide various configurations according to user requirements.

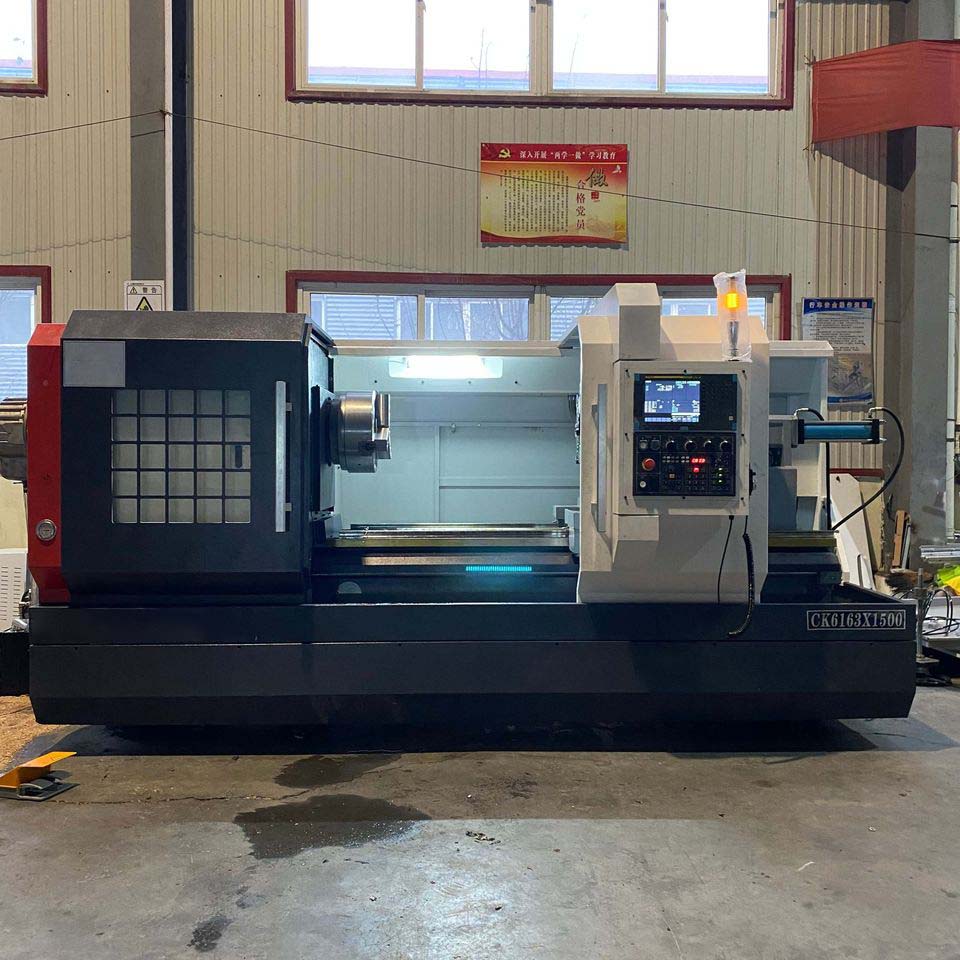

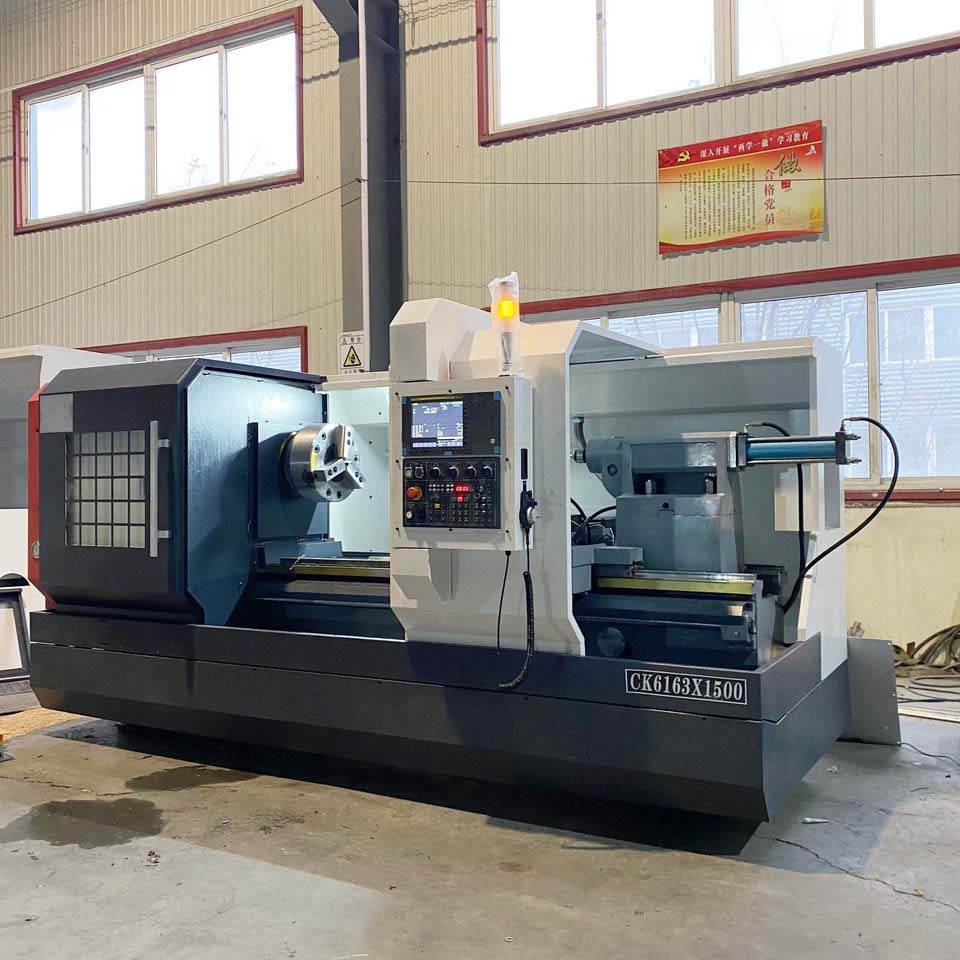

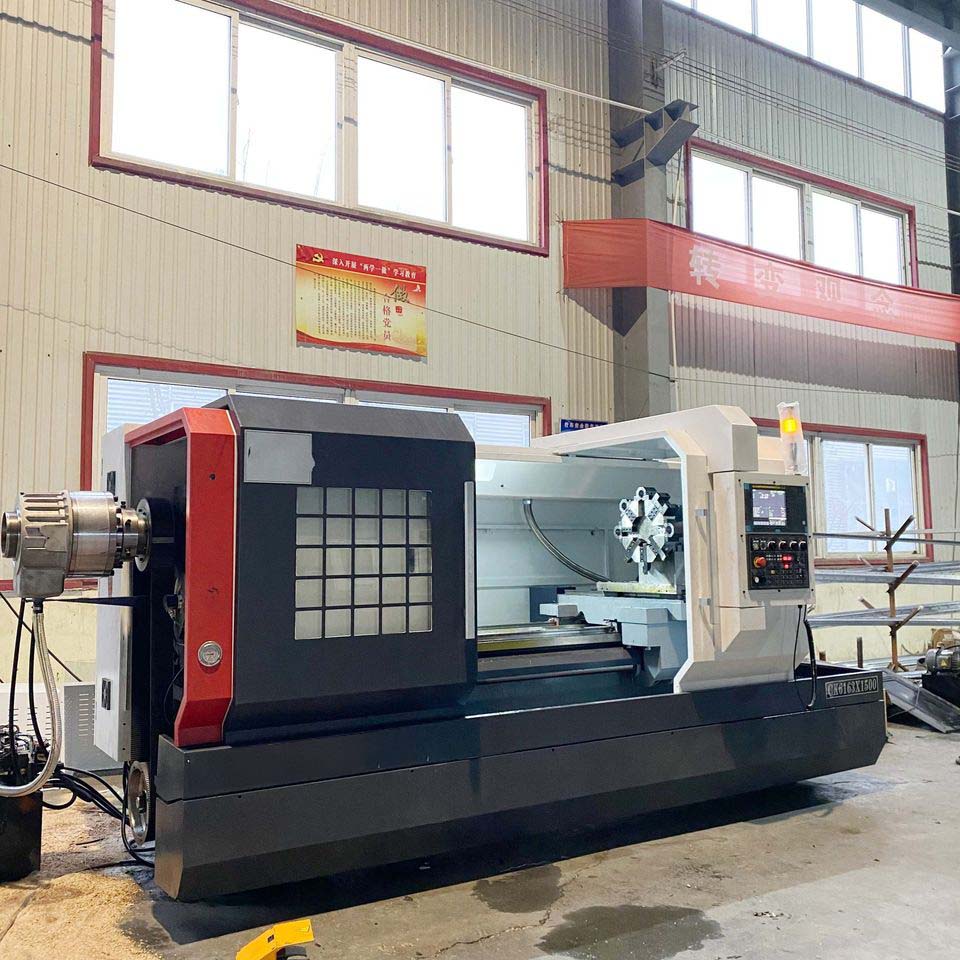

ALCK6163X1500 CNC lathe machine test machine
Equipment configuration and parameters
| Content | Unit | ALCK6163*1500 |
| Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on skateboard | mm | Ф400 |
| Maximum processing length | mm | 1500 |
| Maximum machining diameter | mm | Φ630 |
| X/Z axis maximum travel | mm | 1500 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle through hole diameter | mm | Ф82 |
Horizontal CNC Lathe Application:
1.CNC lathe converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment;
2.CNC lathe machine process feeding motion by directly connecting shaft coupling & ball screws. With high power, pleasant rigidity；
Metal Lathe Machine Application:
The automatic CNC lathe machine can undertake various turning work pieces, and can turn various parts such as outer circle, inner hole, end face and metric thread, Whit worth thread, modular thread and pitch diameter of the thread forming surface; in addition, it can also meet drilling, Process requirements such as partition holes and nesting materials. Can also be used for hard cutting tools for powerful Cutting, processing a variety of ferrous and non-ferrous metals.
