Plataforma De Control Fanuc Centro De Torneado Automático CNC Horizontal
ALMAZAKL CNC CNC lathe machine can automatically process internal and external cylindrical surfaces, conical surfaces, arc surfaces, and end surfaces. Standard single-thread and multi-thread such as metric system and imperial system can also be machined.

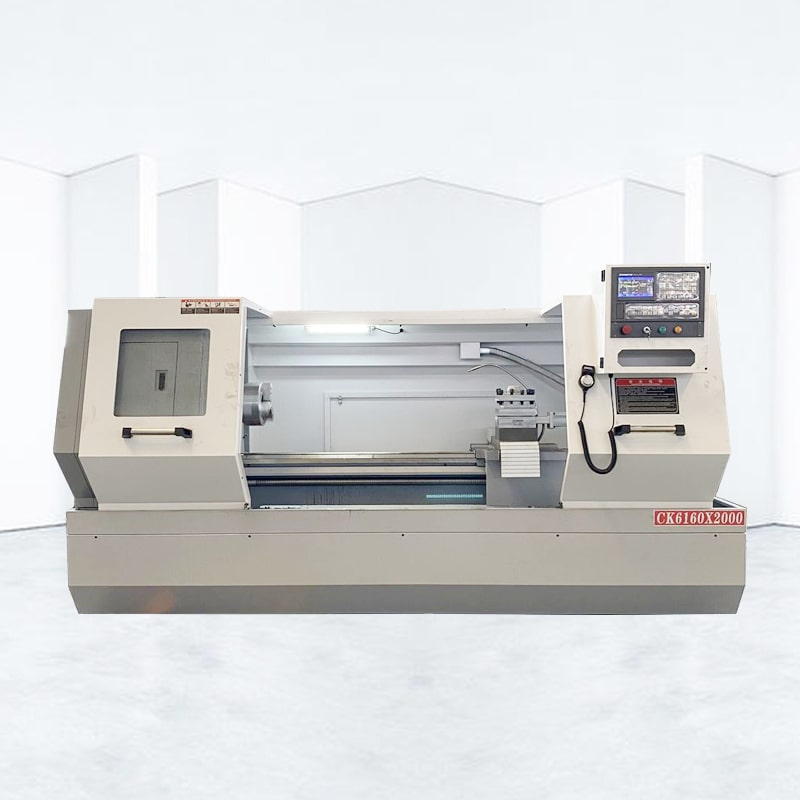

ALMAZAKL CNC Lathe ALCK6160X2000 Inspection Machine
Equipment configuration and parameters
| Item | Unit | ALCK6160*2000 |
| Max swing over bed | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Φ310 |
| Maximum turning diameter | mm | Φ600 |
| Maximum turning length | mm | 2000 |
| X/Z axis maximum stroke | mm | 300/2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m / min | 6/8 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Machine size (length×width×height) | mm | 4400*1700*1800 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
Automatic CNC Lathe Machine Processing Characteristics
1.CNC lathe machine for best rigidity and stability car body and guide rail
2. The guide rail is quenched by super-audio frequency, high hardness
3. CNC lathe machine price XZ axis feed is driven by servo motor full screw
4. ALMAZAKL CNC is equipped with electronic hand wheel for easy operation.
5. ALMAZAKL CNC can freely choose the CNC system
6.Flat bed CNC lathe three-speed continuously variable speed, low noise, high standard machining accuracy;
Horizontal CNC Lathe Application:
The surface of the CNC lathe track is supersonic hardened. Gears are precisely ground to reduce noise. More skins and control systems can be selected. To meet more automatic turning needs.
