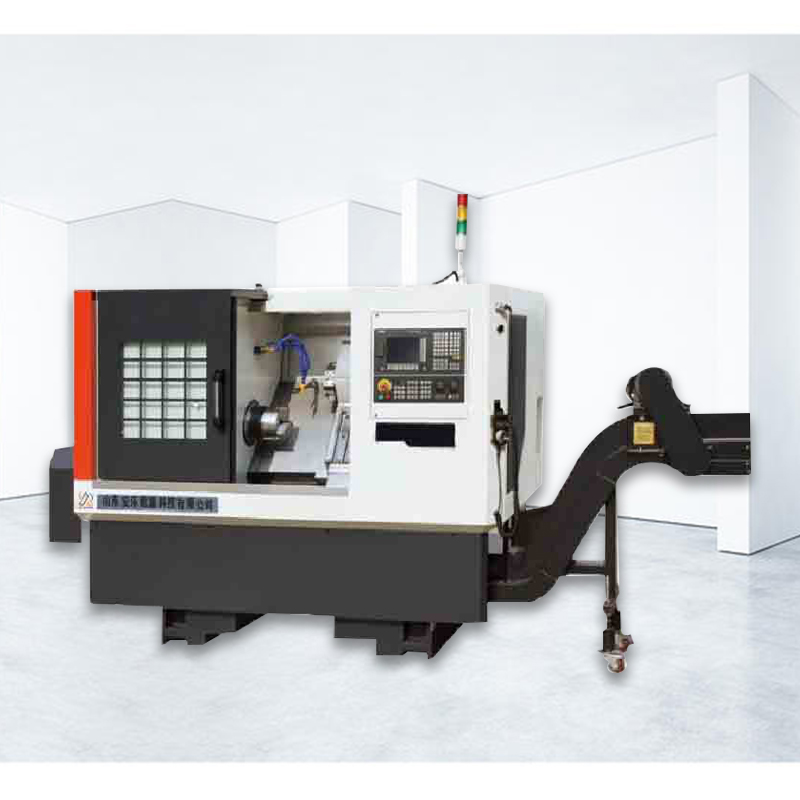

Fully Automatic System Control Inclined Bed CNC Metal Lathe
ALMAZAL CNC The CNC lathe machine can turn conical surfaces, arc surfaces, and end surfaces of rotary parts, and can also turn various metric and inch threads, etc., with higher batch processing efficiency and higher precision.
Slant bed and linear guide way CNC lathe ALTCK6340
Slant Bed CNC Lathe Machine Features:
1.ALMAZAL CNC 45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
The Main Technical Parameters
| Machine Model | Unit | ALTCK6340 |
| Max swing over bed | mm | Φ400 |
| Max swing over cross slide | mm | Φ120 |
| Maximum processing length | mm | 260 |
| Standard chuck specifications | 6″ | |
| X axis maximum stroke | mm | 380 |
| Spindle speed | rpm | A2-5 |
| Spindle speed stage | Φ45 | |
| Spindle end code | X:18 Z:18 | |
| Inner diameter of main shaft pull tube | mm | 1-15000 |
| Spindle motor power | KW | 5.5 |
| Tool bar section | 20×20 | |
| Tool holder | mm | Row knife |
| Total power capacity | mm | 18 |
| Cutting water tank capacity | KVA | 90 |
| Cutting water tank capacity | L | 2300X1500X1750 |
Automatic CNC Lathe Machine Advantage：
CNC lathe During the processing, the cutting chips can easily be washed down toward the chip bed by the normal flow of the coolant, which causes the chips to accumulate and interrupt the machining process. However, the special slant bed CNC lathes can resolve the problem, when CNC lathes adopt the special slant bed design can achieve a better chip evacuation effect, solving the chips accumulation trouble making the machining process uninterrupted, and increasing processing efficiency!
CNC Lathe Application Industry:
ALMAZAL CNC Slant bed CNC lathe is suitable for automobile, motorcycle, electronics, aerospace, military, petroleum and other industries.
