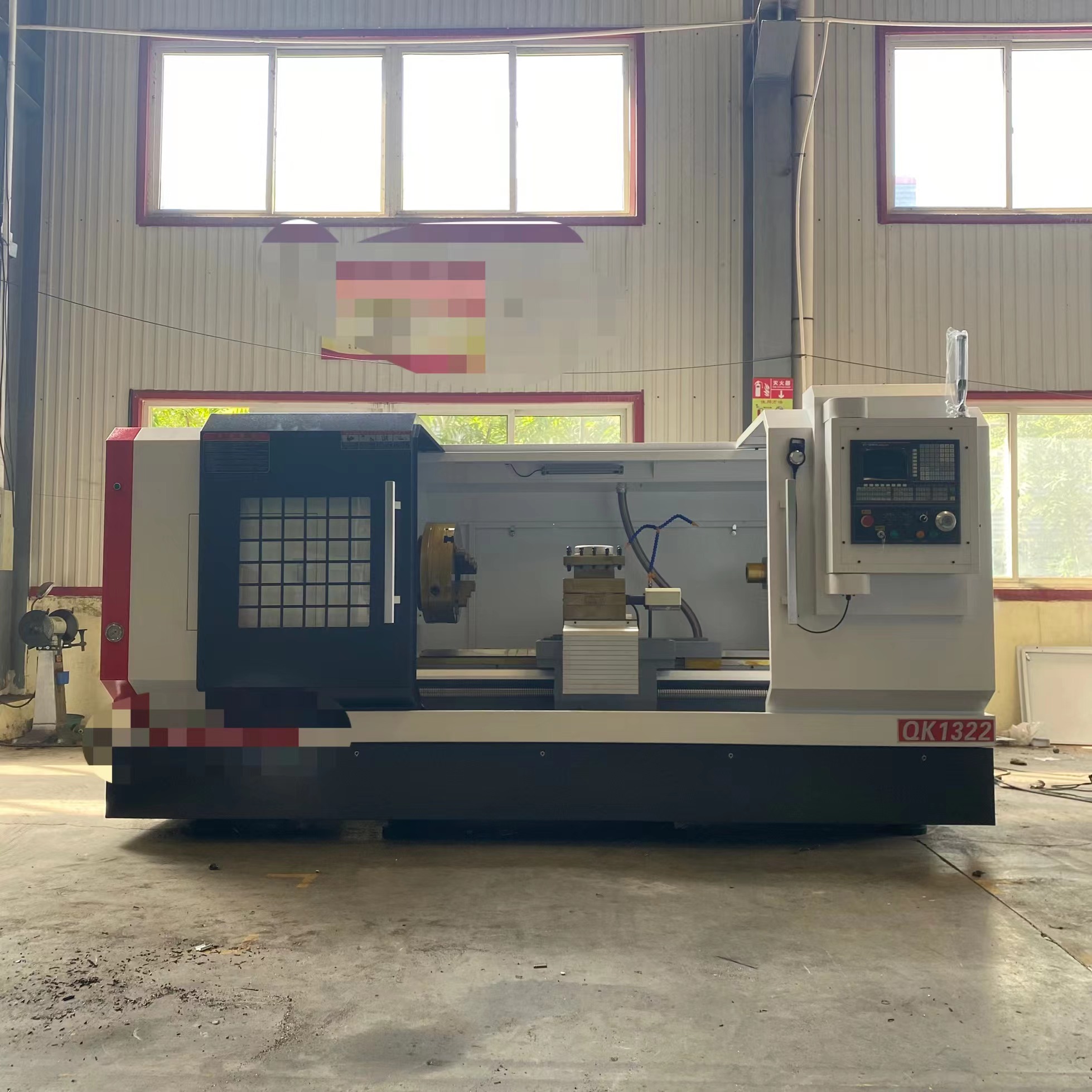

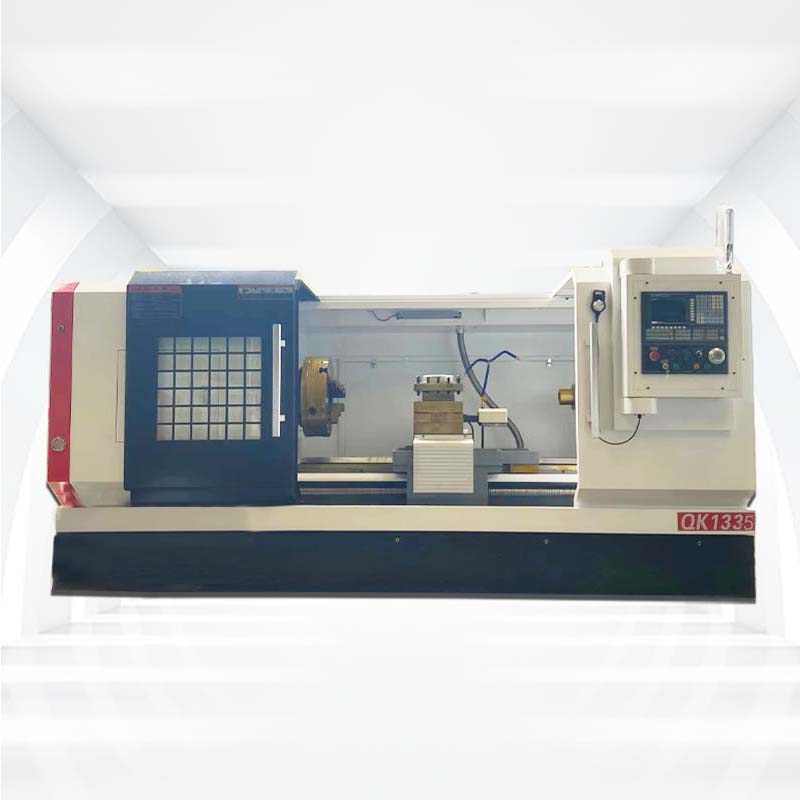

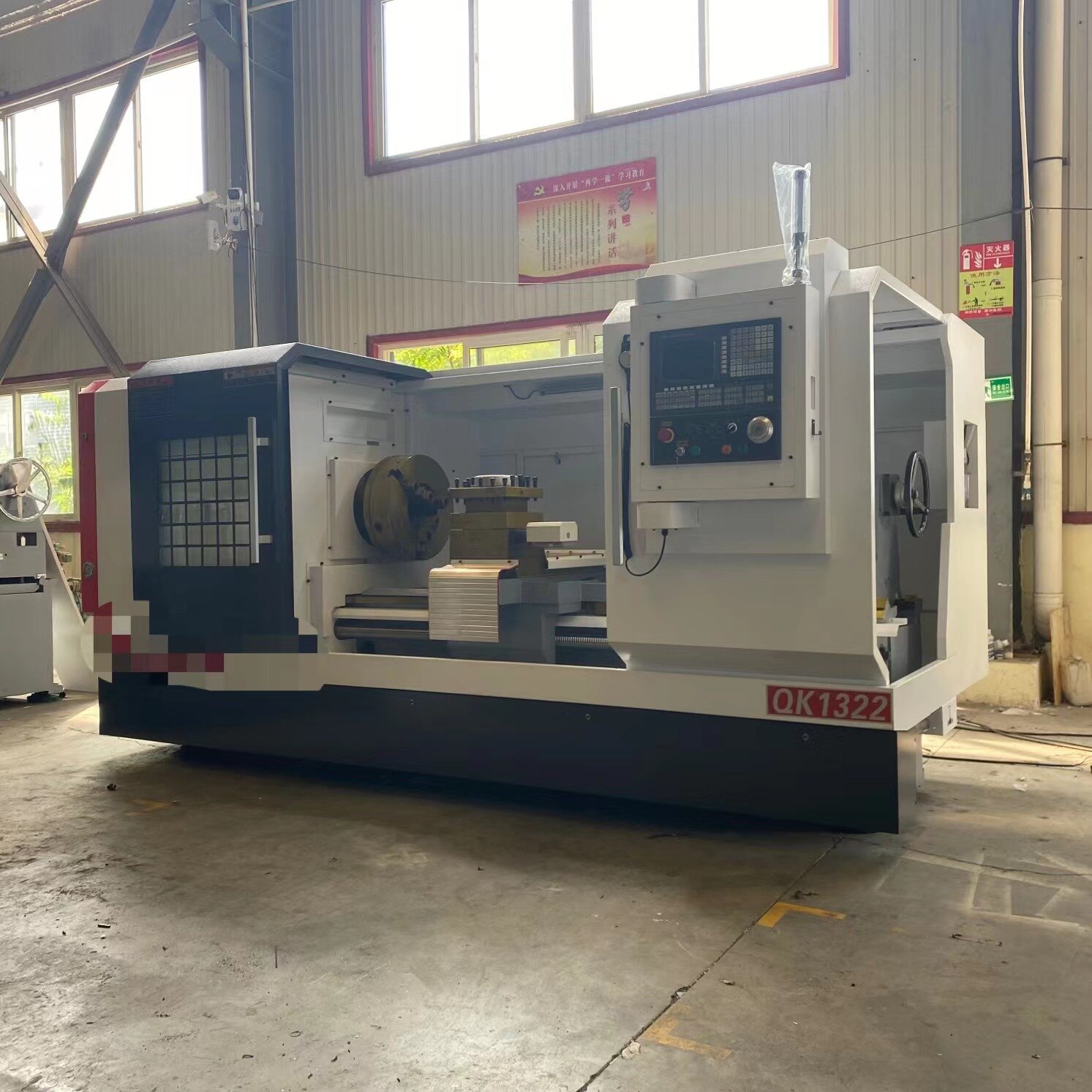

Heavy Duty CNC Oil Township Lathe CNC Pipe Thread Lathe
ALMAZAKL CNC CNC pipe threading lathe mainly designs and processes various internal and external threads of pipes, including metric, inch, modulus, DP, taper threads, and has all the common functions of ordinary CNC lathes for processing inner holes and machining. End faces of shafts and discs,etc
CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
| Project | Content | Unit | ALQK1335 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on the skateboard | Φ450 | ||
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ450 | |
| X/Z rapid traverse speed | m/min | 4/6 | |
| number of stations | 6 | ||
| Tool Specifications: Turning/Boring | mm | 32/40 | |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | battery capacity | KVA | 15 |
| Machine weight | KG | 5200 |
Please note that the bed length can be customized according to the actual needs of customers
CNC Pipe Threading Machine Features:
CNC pipe threading lathe is a special tool for turning and milling pipe threads. It is characterized by a large diameter spindle hole and a chuck installed on the front and rear of the head stock for clamping and machining large diameter pipes or bars.
2. CNC lathe large spindle hole and double chucks, which can clamp and process large diameter pipes;
3. The whole bed of ALMAZAKL CNC adopts high-strength iron, with high rigidity and high precision;
4. Ultrasonic frequency quenching guide rail is hard enough and has good wear resistance;
5.ALMAZAKL CNC to maintain long-term accuracy
Horizontal CNC Lathe Machine Advantage
1. The structural rigidity and transmission rigidity of the horizontal CNC lathe machine are higher than those of the general lathe, and the power
2. High utilization rate, suitable for strong cutting.
3. Before leaving the factory, the automatic CNC lathe machine shall be inspected in strict accordance with the inspection procedures.
CNC lathe machine to test, to test the CNC lathe to ensure that the CNC lathe has good stability and reliability.
Application
ALMAZAKL CNC Automatic CNC lathe machine is widely used in petroleum exploitation, mineral exploitation, chemical pipeline, geological exploration and other industries.
