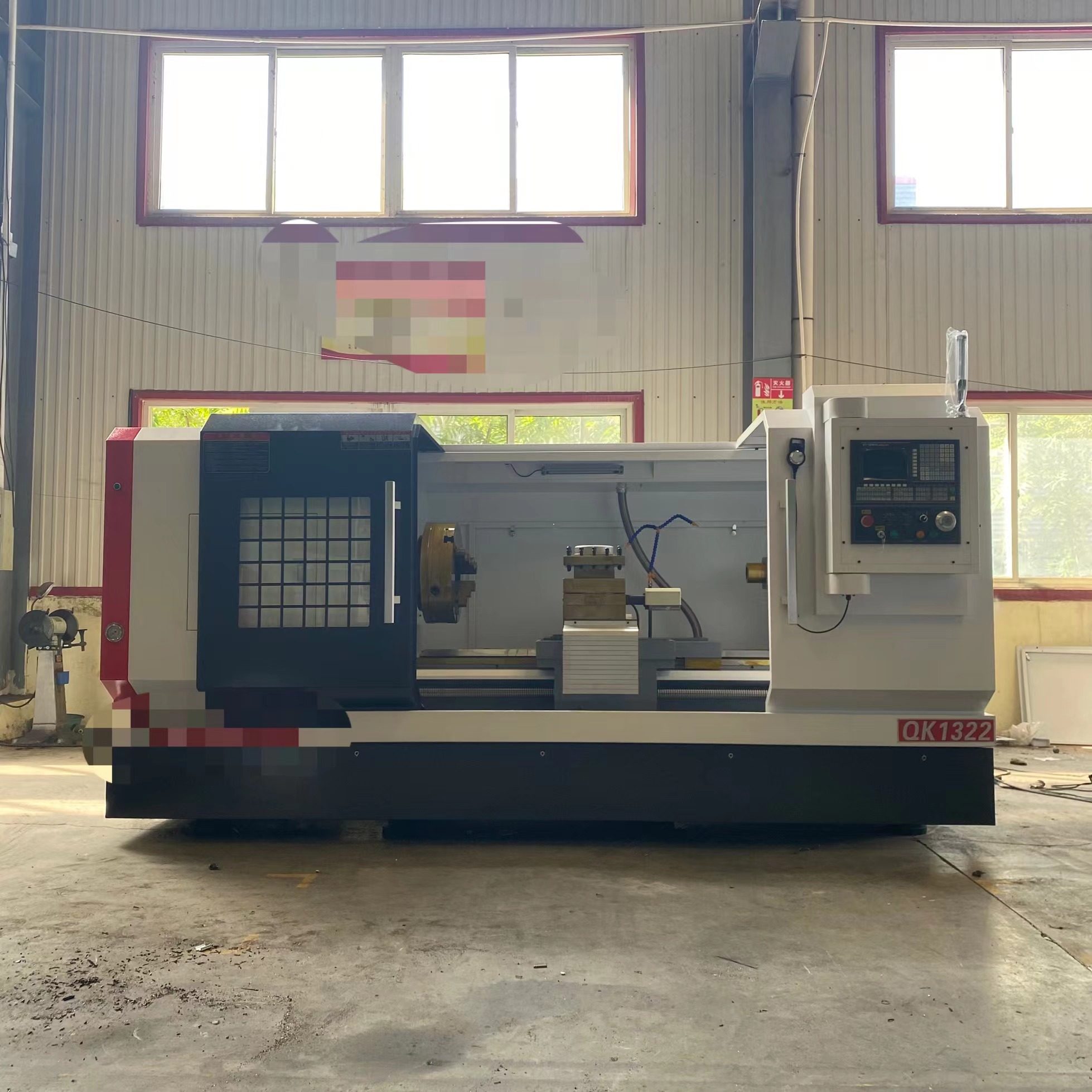

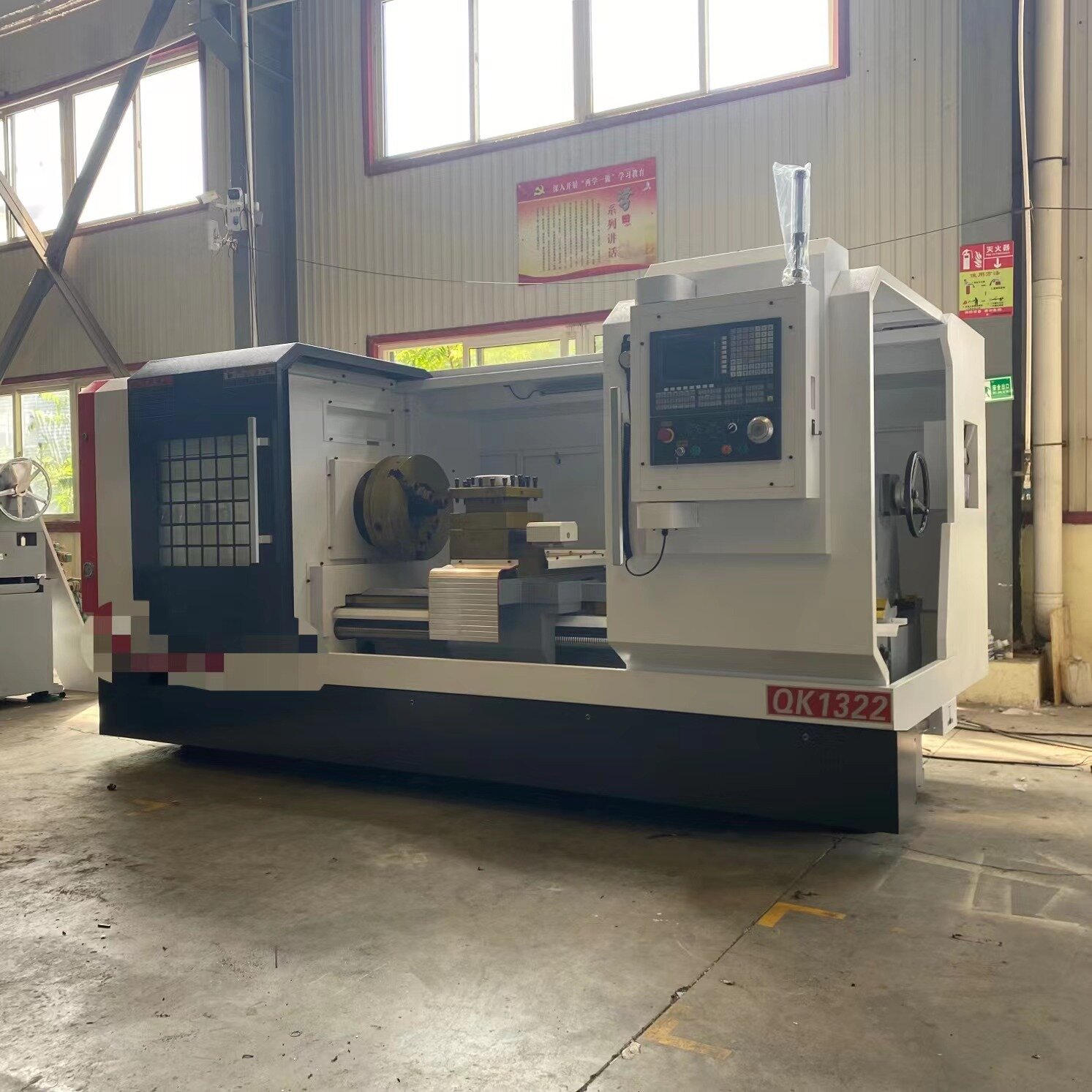

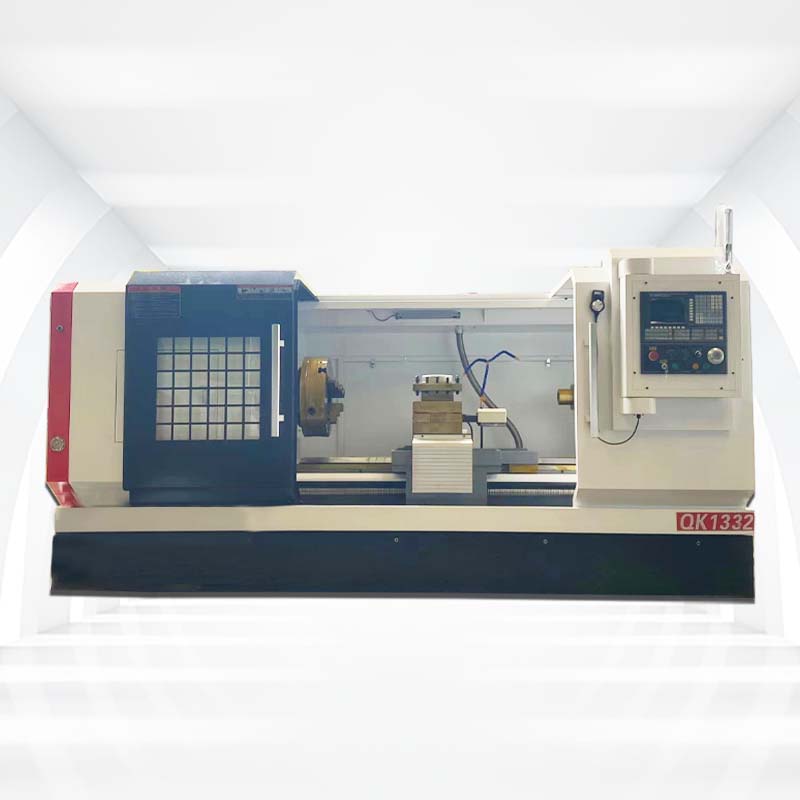

ALMAZAKL CNC CNC pipe thread lathe is mainly used to process internal and external pipe threads, including metric, inch, modulus DP and taper threads, and has all common functions of ordinary CNC lathe, such as machining the internal holes and end faces of shafts and discs. This series of lathes are widely used in petroleum exploitation, mineral exploitation, chemical pipeline, geological exploration and other industries, and are efficient equipment for processing and repairing drill pipes, drill pipes, threaded joints, etc
CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
Project | Content | Unit | CK1332 |
Processing range | Maximum turning diameter of bed | mm | Φ800 |
Maximum turning diameter on the skateboard | Φ450 | ||
Maximum processing length | mm | 1500 | |
Maximum machining diameter | mm | Φ800 | |
Maximum bar diameter | mm | Φ450 | |
X/Z rapid traverse speed | m/min | 4/6 | |
Motor | Spindle motor power | Kw | 11 |
Spindle motor torque | NM | 48 | |
Cooling pump motor power | W | 125 | |
Rail form | Hard rail (greater than HRC50) | ||
KG |
Please note that the bed length can be customized according to the actual needs of customers
1.CNC lathe Big spindle bore and double chuck to ensure process big diameter pipe
2.CNC lathe machine One-piece bed adopts high strength iron to ensure rigidity and precision
3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
4.ALMAZAKL CNC Carriage and guide way contact surface use to maintain accuracy
1, We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.
2, The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like.
ALMAZAKL CNC Automatic CNC lathe machine is widely used in petroleum exploitation, mineral exploitation, chemical pipeline, geological exploration and other industries. It is an efficient equipment for processing and repairing drill pipes, drill pipes, threaded joints, etc.
