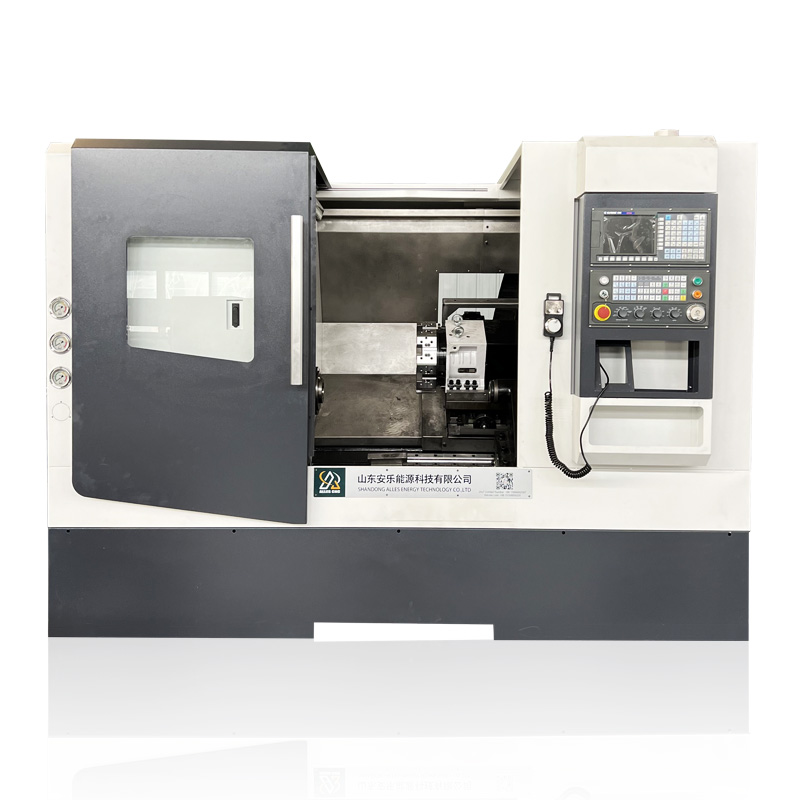

ALFCK50 CNC Lathe

1. Product Overview

The ALFCK50 CNC Lathe is a slant-bed CNC turning machine designed and manufactured by ALLES CNC (Shandong Alles Energy Technology Co., Ltd.). It is used for the turning of cylindrical metal workpieces under computer numerical control, which makes it a CNC lathe built for consistent, repeatable production.

The machine is engineered around a heavy-duty slant bed. This structure gives the lathe high rigidity and stability during cutting, and the inclined bed helps chips fall away from the work area, keeping machining cleaner and reducing heat buildup. With a maximum swing over bed of 550 mm, a maximum cutting diameter of 520 mm and a maximum turning length of 500 mm, the ALFCK50 handles a practical range of shafts, flanges, bushings, sleeves and other rotational parts.

This slant-bed CNC lathe is positioned for machine shops, metalworking companies, parts manufacturers and general engineering workshops that need dependable CNC turning for both job-shop work and continuous production runs.

2. Product Features & Advantages

• Heavy-duty slant bed structure

Provides high rigidity and stability during cutting, which helps maintain machining accuracy and surface quality on shafts and cylindrical parts.

• High-precision linear guideways

Keep the X and Z axes moving smoothly and accurately, improving positioning repeatability for batch production of mechanical components.

• 7.5 kW spindle motor

Supplies enough turning power for common metalworking jobs, allowing efficient material removal on steel and other machinable workpieces.

• 10-inch hydraulic chuck with 12-station hydraulic turret

Supports secure workholding and fast tool changes, reducing setup time between operations and increasing output for flange and bushing work.

• GSK CNC control system with X/Z-axis servo drives

Simplifies programming and delivers stable servo response on both axes, which suits small-batch as well as continuous industrial production.

• High-precision ball screws on X and Z axes

Convert servo motion into accurate axis travel, supporting consistent dimensional results over repeated cycles.

• Automatic centralized lubrication and coolant systems

Reduce manual maintenance and keep the cutting area cooled and lubricated, which extends tool life during long machining sessions.

• Full enclosure with chip collection and LED working light

Improves workshop safety and cleanliness while making the work area easier to supervise.

3. Technical Specifications

4. Applications

The ALFCK50 CNC Lathe is selected for turning applications that need stable, repeatable metal cutting.

Applications by workpiece:

• Shafts
• Flanges
• Bushings
• Sleeves
• Cylindrical components
• Mechanical components
• Automotive components
• General engineering parts

Applications by industry:

• Automotive parts manufacturing
• Machinery manufacturing
• Metalworking
• General engineering
• Industrial manufacturing

The machine is especially practical for shaft and flange machining, where the rigid slant bed and the hydraulic chuck/turret combination support steady holding and consistent turning results.

5. Standard & Optional Configurations

The ALFCK50 CNC Lathe is supplied with a complete standard package and can be equipped with optional systems to match different machining requirements.

Standard Configuration

• Heavy-duty slant bed structure for high rigidity and stability
• High-precision linear guideways
• 7.5 kW spindle motor
• 10-inch hydraulic chuck
• 12-station hydraulic turret
• GSK CNC control system
• High-precision ball screws for X and Z axes
• X/Z-axis servo drive system
• Automatic centralized lubrication system
• Automatic coolant system
• Full enclosed machine protection
• Hydraulic tailstock
• Electronic handwheel
• Standard tool holders
• LED working light
• Chip collection system
• Standard electrical control cabinet

Optional Configuration

To meet different machining requirements, the ALFCK50 CNC slant bed lathe can be equipped with the following optional configurations:

• FANUC CNC control system
• Siemens CNC control system
• Mitsubishi CNC control system
• Syntec CNC control system
• 12-inch hydraulic chuck
• Servo turret
• Power-driven turret
• C-axis
• Y-axis
• Bar feeder
• Automatic parts catcher
• Automatic loading and unloading system
• Robot loading and unloading system
• Hydraulic steady rest
• Automatic tool setter
• Renishaw tool measurement system
• Automatic tool measurement system
• Chain-type chip conveyor
• Screw-type chip conveyor
• Oil mist collector
• Special hydraulic fixtures
• Customized workholding solutions

6. Frequently Asked Questions

What is the ALFCK50 CNC Lathe used for?

The ALFCK50 CNC Lathe is a slant-bed CNC turning machine used for turning cylindrical metal parts such as shafts, flanges, bushings, sleeves and other mechanical components in metalworking and manufacturing.

What materials can be machined on the ALFCK50 CNC Lathe?

The machine is designed for metal turning. Common workpieces include carbon steel, alloy steel, stainless steel, cast iron and non-ferrous metals. For specific material and tooling recommendations, please contact ALLES CNC.

What is the maximum turning length of the ALFCK50?

The maximum turning length is 500 mm, with a maximum cutting diameter of 520 mm.

What is the spindle bore of the ALFCK50 CNC Lathe?

The spindle bore is 67 mm and the spindle speed range is 35-3000 rpm.

Which CNC control systems can be fitted to the ALFCK50?

The standard control system is GSK. FANUC, Siemens, Mitsubishi and Syntec control systems are available as optional configurations.

Who should buy the ALFCK50 CNC Lathe?

Machine shops, metalworking companies, automotive parts manufacturers, mechanical manufacturers, CNC machine distributors, machinery importers and industrial machining companies.

Can the ALFCK50 CNC Lathe be customized?

Yes. In addition to the standard configuration, the machine accepts optional systems such as different CNC controls, servo or power-driven turrets, C-axis, Y-axis, bar feeder, parts catcher, loading/unloading automation, chip conveyors and customized workholding solutions.
